K200-SYS Wireless Crane & Hoist Control System

Reliable Single-Speed Radio Control for Hoists, Monorails & Material Handling Applications

The K200-SYS Wireless Control System delivers dependable, industrial-grade remote control performance for single-motion hoists, monorail systems, and basic lifting applications. Designed for operators who demand safety, simplicity, and durability, the K200 SYSTEM provides a streamlined 1-motion, 1-step control solution ideal for overhead cranes, electric chain hoists, trolleys, and material handling equipment.

Built with advanced 433MHz multi-frequency technology with automatic channel selection, the K200-SYS helps reduce signal interference while ensuring stable communication in demanding industrial environments. Its bi-directional communication system continuously exchanges status information between transmitter and receiver for improved operational confidence and system awareness.

The rugged PA6 glass-filled housing with integrated shock bumpers is engineered to withstand harsh industrial conditions, while the IP65-rated enclosure protects against dust, moisture, and heavy-duty use. The receiver features auto-sensing power input from 24–240 VAC or 24–160 VDC, simplifying installation across a wide range of hoists and lifting systems.

Safety remains a top priority with double safety stop MLC relays and highly visible interactive system status LEDs that help operators quickly monitor system conditions. With a typical operating range of up to 300 feet (100 meters), the K200-SYS gives operators greater mobility and improved jobsite efficiency.

Each complete system includes one receiver, two transmitters, legend sets, batteries, mounting hardware, and installation instructions, providing everything needed for fast setup and operation.

Whether you are upgrading an existing hoist control system or installing a new wireless crane remote, the K200-SYS offers dependable wireless performance, simplified operation, and industrial-strength durability for everyday lifting applications.

Specifications

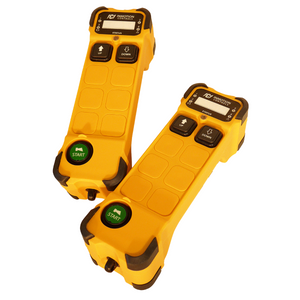

Transmitter (K200–K600)

• Frequency: 433MHz
• Modulation Method: 4 FSK
• Operating Range: 300 ft. (100M) typical
• Power Supply: 2 × 1.5V AA Batteries
• Average Power Consumption: 16mA @ 3VDC
• Operating Temperature: -40°F to +149°F
• Protection Rating: IP65
• Housing Material: PA6 (30% Glass Filled)
• Dimensions: 193mm × 57mm × 51mm

Receiving Unit (K200–K600)

• Frequency: 433MHz
• Control System: PLL
• Power Supply: 24–240 VAC / 24–160 VDC (Auto-Sensing)
• Operating Temperature: -40°F to +149°F
• Protection Rating: IP65
• Housing Material: PA6 (30% Glass Filled)
• Dimensions: 190mm × 184mm × 64mm
• Installation: Single Bolt Mounting

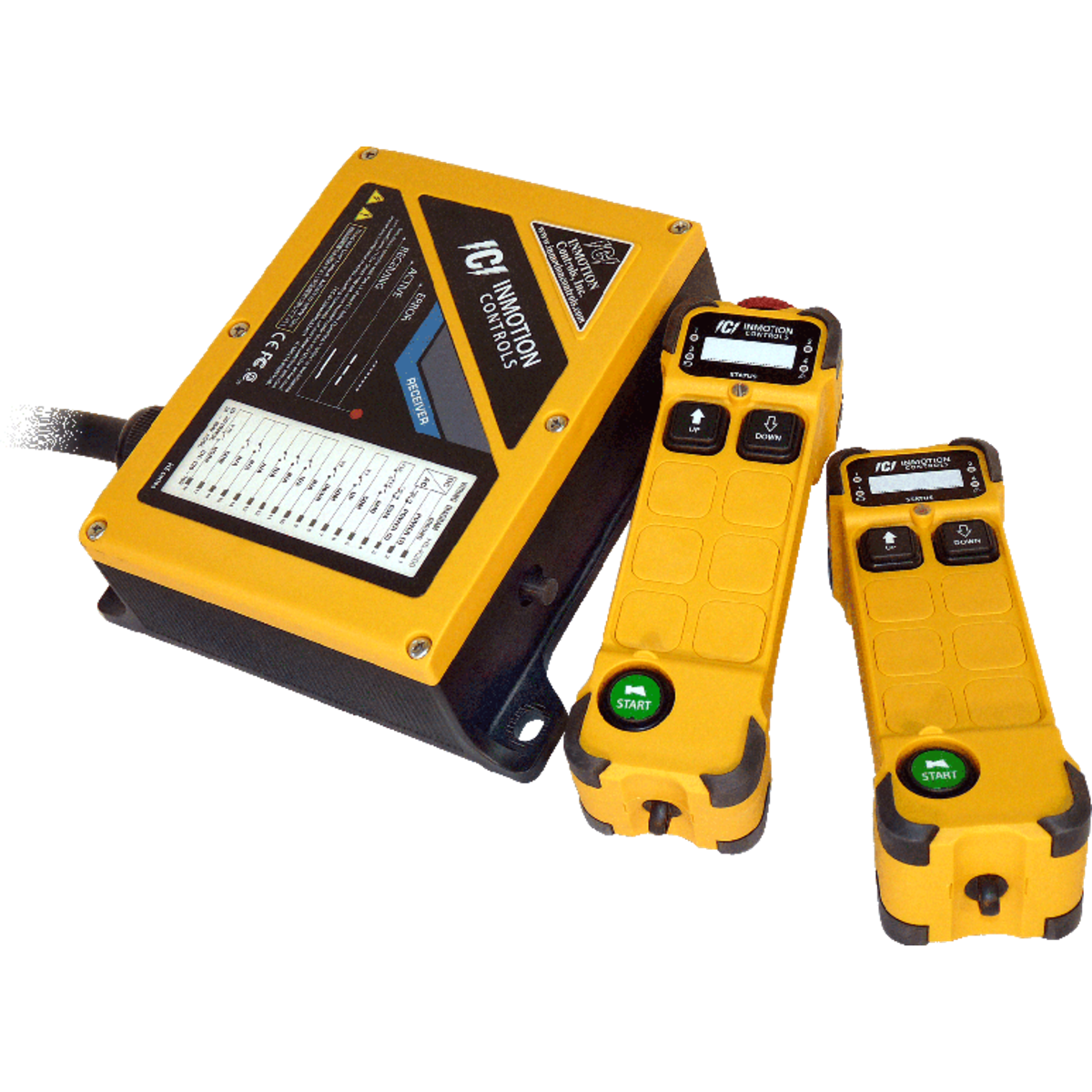

Included with System

• 1 Receiving Unit
• 2 Transmitters
• Legend Sets
• Batteries
• Mounting Hardware
• Installation Instructions
