Harrington 7.5 Ton 25' Span/30' Lift Top Running Single Girder Crane Assembly – C-1372391

The C-1372391 is a heavy-duty, top-running single girder crane designed for dependable operation in Class C service environments. Engineered with a 25-foot span, this 7.5-ton system features a durable W18x106 bridge beam, dual-speed motion control, and a 30-foot lift electric wire rope hoist, providing precise handling and versatility.

With a pre-engineered plug-and-play electrical system and variable frequency drive controls, this crane is built for efficiency and ease of installation. Unless otherwise specified, the crane ships unassembled and match-marked for straightforward field assembly.

General Specifications:

Crane Type Top Running, Single Girder

Capacity 7.5 US Tons

Span 25 ft – 0 in

Service Classification CMAA Class C

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Bridge Beam W18x106, ASTM A572 G50

Rail Type 60# ASCE (2.375" Head Width)

Paint Finish Standard Harrington Yellow

Motion & Performance:

Bridge Travel 8–80 fpm (Variable Frequency Drive)

Trolley Travel 66 / 11 fpm (Dual Speed)

Lifting Speed 20 / 3.3 fpm (VFD Adjustable)

No Load Lift Speed 30 fpm

Hoist & Trolley Assembly:

ModelRYU075C30HDD4

Lift Height 30 ft

Power Supply 460V / 3Ph / 50/60Hz

Amperage 21.6 A

Traversing Speed 66 / 11 fpm (VFD Adjustable)

Flange Range 5.90–13.78 in (11.2 in Nominal)

Net Weight (Hoist/Trolley) 2,227 lbs

Certifications UL1340, CSA 22.2 No. 33

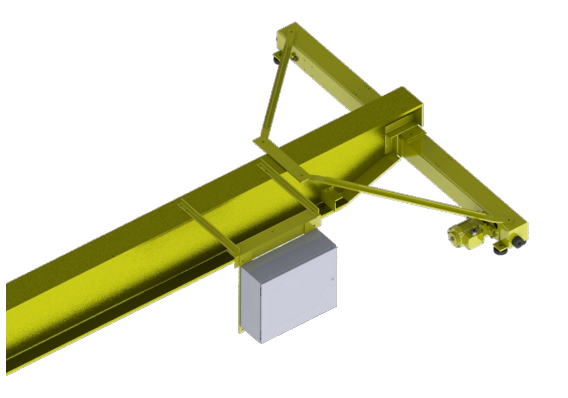

Bridge Beam Assembly:

• Beam Type: W18x106
• Capacity: 10 Ton Rated, Relabeled to 7.5 Ton
• Span: 25 ft – 0 in
• Finish: Harrington Yellow
• Weight: 2,863.78 lbs
• For Use With: TM3-1060 End Trucks and Flat Cable Festoon System

End Trucks:

• Rated: 10 Ton, Relabeled to 7.5 Ton
• Traversing Speed: 80 fpm
• Rail Compatibility: 60# ASCE
• Wheel Diameter: 9.84 in.
• Wheel Hardness: 160–220 BHN
• Motors: 1.0 HP, 1.8 A each
• Weight: 564.5 lbs each

Electrical Components & Controls:

• Control Panel: P1V4640C40R11N1 (VFD, Plug & Play)
• Fused Rating: 28.4 A (Hoist/Trolley Motors)
• Mainline Disconnect Fuse Size: 40 A
• Wiring System: NEMA 4 Rated, LiquidTight, Plug & Play

Pendant Station:

• NEMA 4 Rated, L-Series, 8-Button Layout
• Control Type: Momentary On/Off
• Pendant Drop: 30 ft
• Motion Functions: Hoist, Trolley, Bridge (Dual-Speed)
• Mounting: Roving Flat Cable with 16P Plug

Festooning:

• Flat Cable Festoon System
• Provides Power and Pendant Circuits
• Voltage: 460V / 3-Phase / 60Hz
• Amperage: 20.3 A per circuit
• Beam Compatibility: W18x106
• For Use With: RY1U 7.5–10 Ton Hoist

Compliance:

Manufactured to meet or exceed the following industry standards:

• OSHA 1910.179 – Overhead & Gantry Crane Safety
• ASME B30.2 / B30.16 / B30.17 – Crane and Hoist Safety Standards
• ASME HST-4 – Performance for Wire Rope Hoists
• CMAA 74 – Top Running & Under Running Crane Specifications
• NFPA 70 – National Electrical Code (NEC)

Additional Notes:

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
