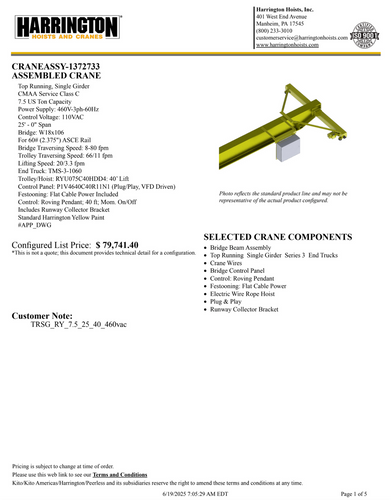

Product Overview
Harrington 7.5 Ton 25' Span/40' Lift Top Running Single Girder Crane Assembly – C-1372733
The C-1372733 is a heavy-duty overhead crane system designed for CMAA Class C applications, offering dependable lifting performance in industrial environments. This top-running single girder crane features a 7.5-ton capacity across a 25-foot span and includes a high-performance 40-foot lift electric wire rope hoist with dual-speed control, ensuring efficient and precise operations. The system features plug-and-play electrical integration and comes equipped with Harrington's signature roving pendant control.
Note: This unit is typically shipped unassembled and match-marked for field installation unless otherwise requested.
General Specifications
Crane Type Top Running, Single Girder
Service Class CMAA Class C
Capacity 7.5 US Tons
Span 25 ft – 0 in
Power Supply 460V / 3-Phase / 60Hz
Control Voltage 110VAC
Bridge Beam W18x106, ASTM A572 G50
Rail Type 60# ASCE (2.375" head width)
Paint Finish Standard Harrington Yellow
Performance & Motion
Bridge Travel 8–80 fpm (VFD-controlled)
Trolley Travel 66 / 11 fpm (Dual Speed)
Lifting Speed 20 / 3.3 fpm (Adjustable via VFD)
No Load High Speed 30 fpm
Hoist & Trolley
Lift Height 40 ft
Voltage 460V / 3Ph / 50/60Hz
Max Amperage 21.6 A
Traversing Speed 66 / 11 fpm (VFD adjustable)
Flange Range 5.90–13.78 in (Nominal: 11.2 in)
Certifications UL1340, CSA 22.2 No. 33
Total Net Weight 2,397 lbs

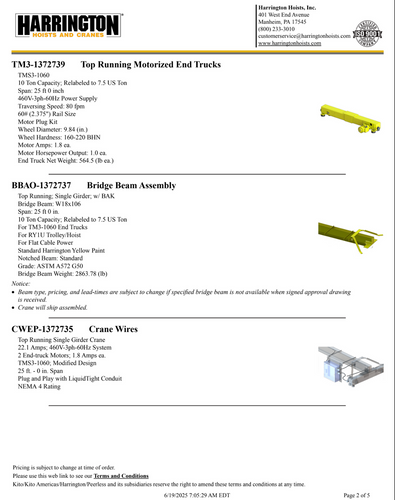

Bridge Beam Assembly
- Beam Type: W18x106
- Rated: 10 Ton (relabeled to 7.5 Ton)
- Span: 25 ft – 0 in
- Weight: 2,863.78 lbs
- Standard Notched Beam
- For use with TM3-1060 End Trucks
- Paint: Harrington Yellow
End Trucks
Rated Capacity 10 Ton (Relabeled to 7.5 Ton)
Span 25 ft – 0 in
Power Supply 460V / 3Ph / 60Hz
Speed 80 fpm
Wheel Diameter 9.84 in
Wheel Hardness 160–220 BHN
Motor HP / Amps 1.0 HP / 1.8 A (each motor)
Net Weight 564.5 lbs each
Electrical & Controls
Control Panel – P1V4640C40R11N1
- Type: VFD, Plug-and-Play
- Voltage: 460V / 3Ph / 60Hz
- Hoist/Trolley Motor Fusing: 28.4 Amps
- Mainline Disconnect: 40 Amps
Crane Wiring – CWEP-1372735
- Amperage: 22.1 A
- NEMA 4 rated with LiquidTight conduit
- Plug-and-Play system
Pendant Control
ModelPB1-1372742
Type L-Series, NEMA 4, 8-button Pendant
Mount Roving flat cable with 16P plug
Control Type Momentary On/Off
Functionality Dual-Speed (Hoist, Trolley, Bridge)
Pendant Length 40 ft (measured from beam bottom)
Festoon System
- Plug-and-play system for power and Pendant
- Compatible with W18x106 Bridge and RY1U 7.5–10 Ton Trolley/Hoist
- Voltage: 460V / 3Ph / 60Hz
- Amperage: 20.3 A

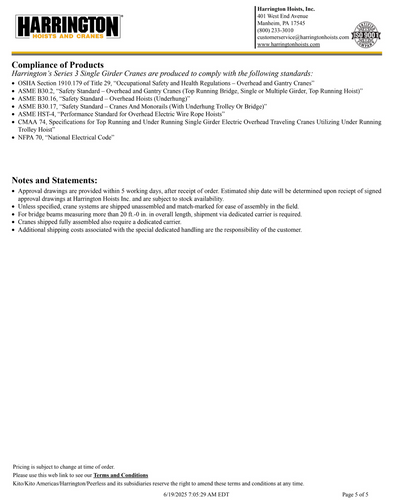

Regulatory Compliance
The C-1372733 system adheres to the following safety and industry standards:
- OSHA 1910.179 – Overhead & Gantry Cranes
- ASME B30.2 / B30.16 / B30.17 – Crane & Hoist Standards
- ASME HST-4 – Electric Wire Rope Hoists
- CMAA 74 – Top/Under Running Single Girder Cranes
- NFPA 70 – National Electrical Code (NEC)
Additional Notes:

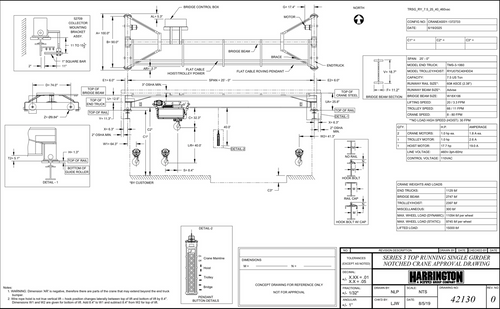

- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
