Capacity: 16.50 Ton, Reeving/Lift: 4 PD | 29'­1", Hoist Lift Speed: 13.00 FPM Max, Volt: 230VAC­3PH­60HZ +­5%, DB33T29­-13 Detroit

Type: Suspension / Mount Top Running Double Girder

Capacity: The Model DB33T29-13 is engineered with a robust lifting capacity of 16.50 tons, making it an optimal solution for heavy-duty lifting operations across various industrial sectors. Its substantial capacity ensures reliable and efficient handling of large and heavy loads with precision and safety.

Reeving | Lift: Featuring a 4-part reeving system, this model offers a lift height of 29 feet and 1 inch, providing extensive vertical reach for lifting tasks requiring significant elevation. This generous reach enhances versatility and adaptability, allowing for effective handling of diverse loads in various applications.

Hoist Lift Speed: With a maximum hoist lift speed of 13.00 feet per minute (FPM), the Model DB33T29-13 facilitates controlled and precise vertical movement of loads. This optimized speed ensures smooth and efficient lifting and lowering operations, contributing to enhanced productivity and safety.

Hoist Motor: Powered by a robust 10.4 kW hoist motor, this system delivers exceptional performance and torque for lifting heavy loads with ease. The powerful motor ensures reliable and controlled movement, contributing to operational efficiency and safety during lifting operations.

Hoist Control: Equipped with closed-loop vector Variable Frequency Drive (VFD) control, the Model DB33T29-13 offers precise and responsive hoisting operations. This advanced control system ensures accurate speed regulation, load handling, and positioning, optimizing performance and safety during lifting operations.

Trolley Speed: With a maximum trolley speed of 80.00 FPM, this system enables rapid and precise horizontal movement of loads along the girder tracks. Whether transporting materials within a facility or positioning heavy components, the Model DB33T29-13 ensures efficient handling and maneuverability.

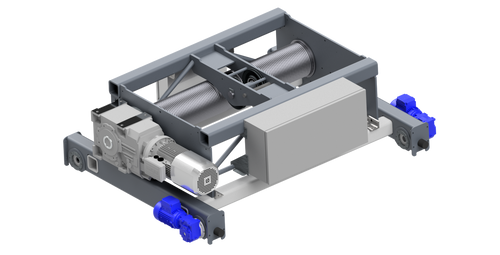

Trolley Motor: Featuring two motors, each rated at 0.55 kW, the trolley system provides ample power for smooth and controlled movement across the working area. These motors deliver reliable propulsion, enabling precise positioning and efficient operation of the trolley.

Trolley Control: Utilizing sensorless vector VFD control, the trolley movement is accurately regulated, ensuring precise positioning and smooth operation. This advanced control system allows for responsive and efficient trolley movements, enhancing overall efficiency and safety during material handling tasks.

Power Supply: The Model DB33T29-13 operates on electric power, with a voltage rating of 230VAC, 3-phase, and a frequency of 60Hz (+5% tolerance). This ensures compatibility with standard electrical systems, facilitating seamless integration into existing infrastructure.

CMAA Class | Atmosphere | Location Class: Compliant with CMAA standards and suitable for indoor service in atmosphere class D conditions, the Model DB33T29-13 offers reliability and safety in various operating environments. Additionally, its weather-resistant design enhances durability and performance, allowing for operation in diverse weather conditions.

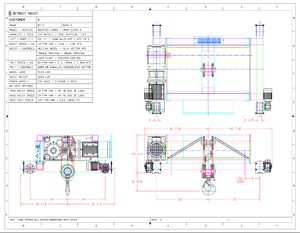

Trolley Gauge: With a trolley gauge measuring 66.0000 inches, the system ensures stability and proper alignment during horizontal movement along the girder tracks, enhancing safety and efficiency during material handling tasks.

Approximate Weight: Weighing approximately 2200.00 lbs, the Model DB33T29-13 features a robust construction, ensuring durability and stability during lifting operations. Its sturdy build quality and reliable components contribute to its overall performance and longevity in demanding industrial environments.
