Product Overview

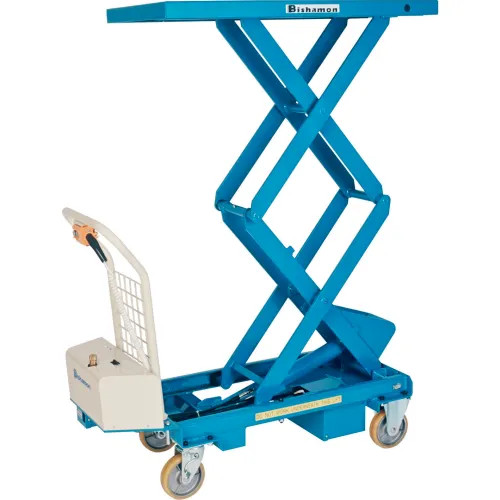

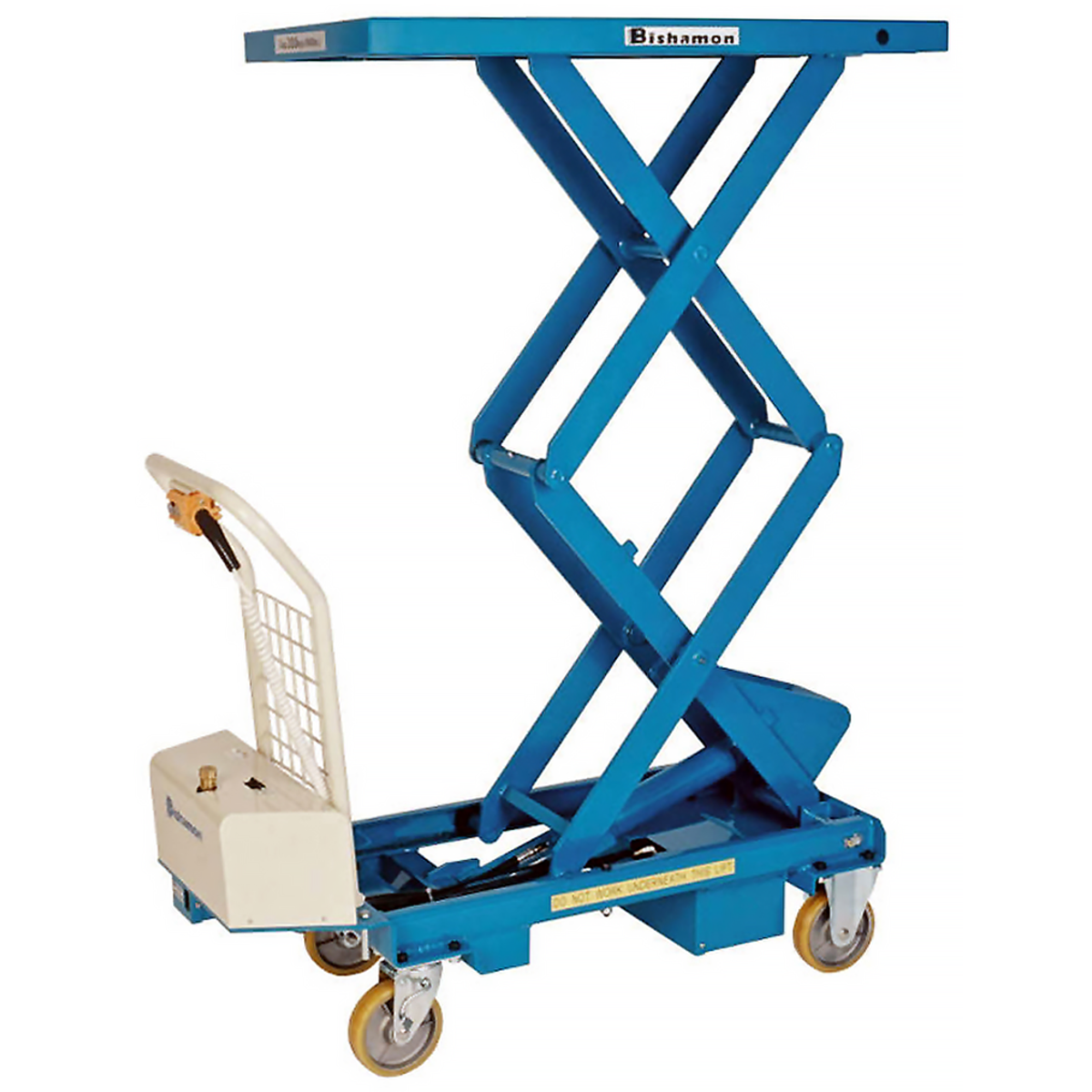

Bishamon BX-15WB – Battery-Powered Double Scissor Lift Table
Compact. Efficient. High-Lift Performance.
The Bishamon BX-15WB is a battery-powered double-scissor lift table designed to deliver higher lifting capabilities in tight workspaces. With a lift range from 15-3/16 inches up to 54 inches, this compact table combines ergonomic lifting, smooth electric operation, and rugged steel construction, making it ideal for assembly lines, warehouses, and industrial workstations.
Built for precision and convenience, the BX-15WB features a 12V battery-powered hydraulic lift, durable polyurethane wheels, and a compact footprint. It's engineered for light-duty applications up to 330 lbs, where lifting efficiency and height versatility are key. Whether you're working with parts bins, light equipment, or assembly components, this mobile lift table reduces physical strain and increases productivity.
Key Features
- 330 lb Capacity – Ideal for light-duty lifting in compact work environments
- Double Scissor Design – Provides extended lift height up to 54 inches
- Battery Powered Operation – Smooth, push-button hydraulic lift
- Fast Lift Time – Reaches full height in approximately 10 seconds
- Polyurethane Wheels – Quiet, floor-safe movement
- Durable Steel Construction – Withstands daily use with minimal maintenance
- Compact & Mobile – Easy to maneuver and position where needed
- No Assembly Required – Ready to use out of the box
Benefits
- Ergonomic Lifting – Minimizes bending and reaching, improving operator comfort
- Efficient Workflow – Fast lift times keep operations moving smoothly
- Height Versatility – Perfect for tall tasks or multi-level operations
- Space-Saving Design – Ideal for smaller shops, labs, or tight workstations
Technical Specifications – Bishamon BX-15WB
SpecificationDetails
Model BX-15WB
Lift Type Hydraulic (battery powered)
Operation Push-button control (hand-operated)
Lift Mechanism Double scissor lift
Load Capacity 330 lbs
Platform Length 32 inches
Platform Width 19 inches
Lowered Height 15-3/16 inches
Raised Height 54 inches
Lift Time 10 seconds
Overall Length 39-11/16 inches
Overall Width 19-11/16 inches
Overall Height 35-3/8 inches
Wheel Diameter 5 inches
Wheel Type Polyurethane
Voltage 12V battery-powered
Weight 330 lbs
Frame Material Steel
Color Blue
Assembly Required No
Brand Bishamon
