Product Overview

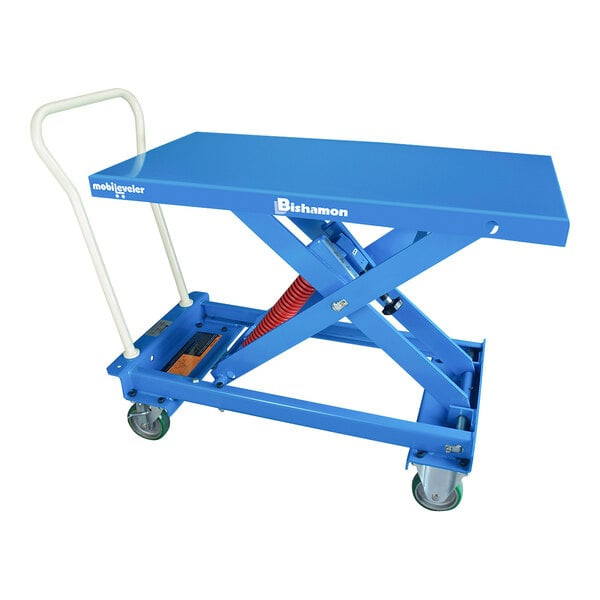

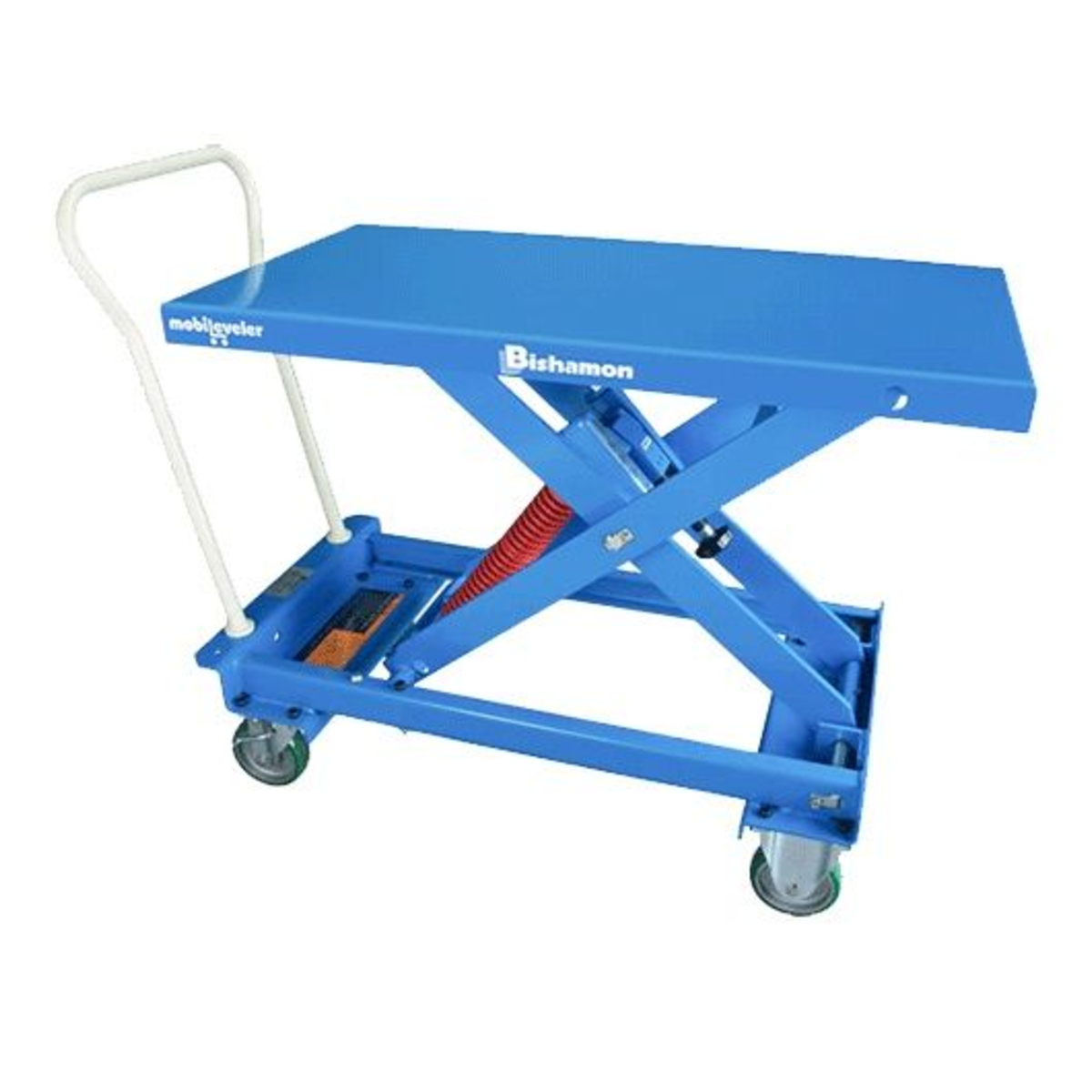

Bishamon ESX-10 – Electric Hydraulic Scissor Lift Table
Effortless Lifting. Compact Power. Precision Control.
The Bishamon ESX-10 is a premium electric scissor lift table engineered for safe, ergonomic lifting and positioning of heavy materials in industrial, assembly, and warehouse applications. Designed with high-performance electric-hydraulic technology, the ESX-10 provides smooth, controlled vertical movement with the push of a button—eliminating the need for manual lifting or pneumatic power sources.
With a 220 lb. lifting capacity, compact design, and durable steel frame, the ESX-10 is ideal for use at workstations, conveyor lines, and packaging stations. The platform can be easily raised or lowered to the desired height, improving worker comfort, reducing strain, and increasing productivity. Safety features like a pressure relief valve, velocity fuse, and maintenance locks make it a reliable choice for heavy-duty use.
Key Features
- Electric Hydraulic Operation – Quiet, powerful motor delivers consistent lifting and lowering performance
- 220 lb. Capacity – Perfect for most light to medium-duty material handling tasks
- Compact, Low-Profile Design – Fits easily into tight work areas
- Foot Pedal or Push-Button Controls – Precise, hands-free height adjustment
- Durable Powder-Coated Finish – Withstands harsh industrial environments
- Safety Features – Includes velocity fuse, pressure relief valve, and maintenance lock bar
- Heavy-Duty Steel Construction – Built for longevity and consistent performance
Benefits
- Improves Ergonomics – Keeps materials at the optimal working height to reduce fatigue
- Maximizes Productivity – Speeds up loading, assembly, and material transfer operations
- Plug-and-Play Operation – Just connect to power and begin lifting—no air supply needed
- Enhanced Safety – The hydraulic system is equipped with safety redundancies to prevent sudden drops
- Versatile Use – Great for lifting pallets, bins, cartons, components, and more
Technical Specifications – Bishamon ESX-10
SpecificationDetails
Model ESX-10
Capacity 220 lbs (99.79 kg)
Platform Size 24" x 36" (custom sizes available)
Lowered Height 6.5 inches
Raised Height 36.5 inches
Lift Mechanism Electric-hydraulic
Power Requirement 115V, 1-phase (standard)
Controls Foot pedal or push-button pendant
Lift Time (approx.) 25–30 seconds
Construction All-steel, powder-coated
Safety Features Velocity fuse, pressure relief valve, maintenance locks
Weight Approx. 90 lbs.
Applications Workstations, assembly lines, packaging, loading, material positioning
