Product Overview

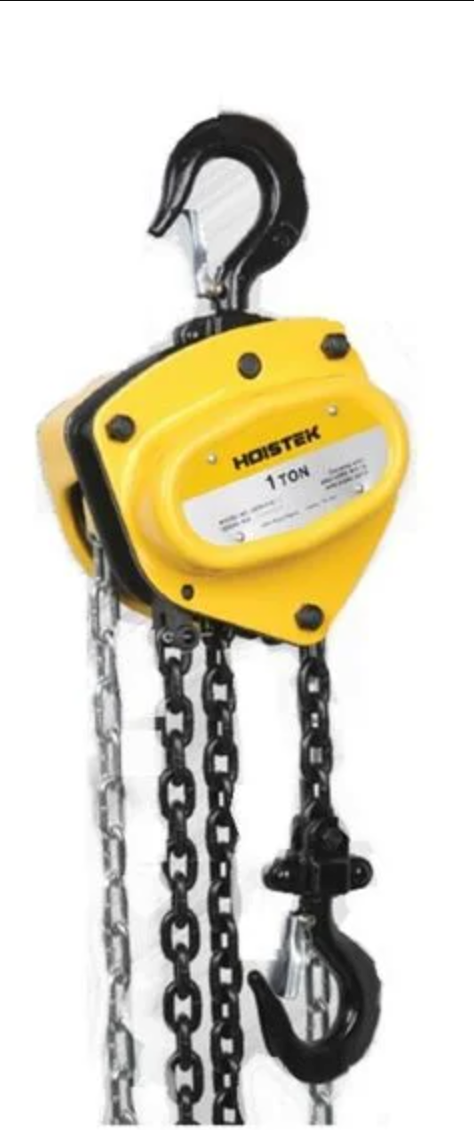

Atlas Lifting & Rigging HOISTEK HCH-010-30 Chain Hoist
1 Ton Manual Chain Hoist – 30 Ft. Lift
The Atlas HOISTEK HCH-010-30 is a robust manual chain hoist designed for long-lift industrial applications requiring extended reach and maximum reliability. With a 1-ton (2,000 lb) capacity and a 30-foot lift height, this hoist is well-suited for elevated rigging jobs, tall structural lifts, and other overhead lifting tasks where vertical range is critical.
Built with hardened steel components, a premium Grade 80 alloy load chain, and a proven mechanical braking system, the HCH-010-30 delivers smooth operation, consistent performance, and dependable load control in demanding environments.
Key Features:
- Rated Capacity: 1 Ton (2,000 lbs)
- Extended Lift Height: 30 Feet
- Rugged Steel Body: Durable housing resists impact and protects internal mechanisms
- Grade 80 Alloy Chain: High-tensile strength chain resists wear and elongation under heavy use
- Automatic Mechanical Brake: Reliable Weston-style braking system securely holds loads
- Swivel Top & Bottom Hooks: 360° rotation and safety latches for secure and flexible rigging
- Efficient Operation: Optimized gear system reduces manual effort and ensures control during lifting and lowering
- Heavy-Duty Performance: Ideal for construction, industrial maintenance, steel erection, and warehouse rigging
Specifications:
SpecificationDetails
Model Number HCH-010-30
Rated Capacity 1 Ton (2,000 lbs)
Lift Height 30 Feet
Load Chain Material Grade 80 Alloy Steel
Load Chain Diameter 6 mm (approx.)
Effort to Lift Full Load ~33 lbs
Headroom (hook to hook) Approx. 13 inches
Hook Type Forged Steel with Safety Latch
Brake Type Mechanical Weston-Style Load Brake
Net Weight Approx. 40–44 lbs
Compliance Meets ASME B30.16, CE Certified
