Product Overview

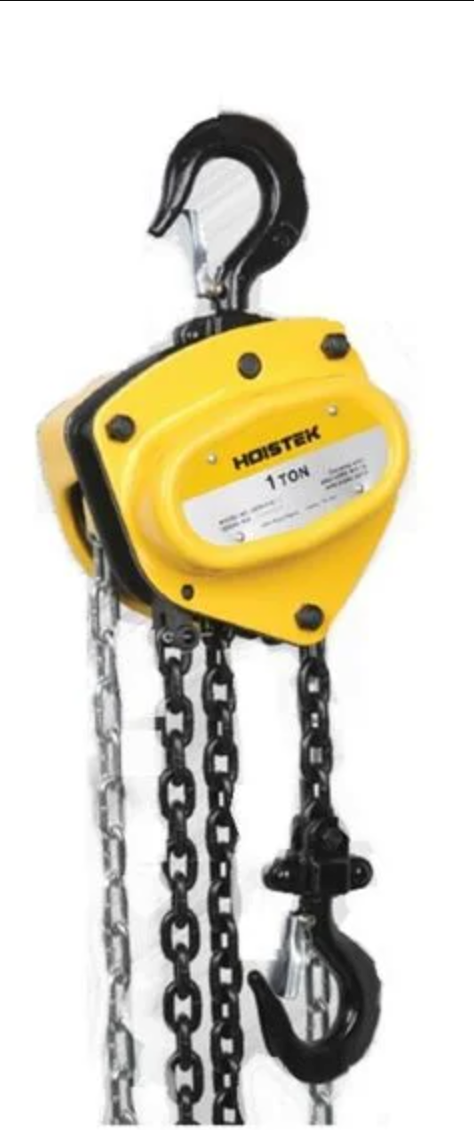

Atlas Lifting & Rigging HOISTEK HCH-010-15 Chain Hoist
1 Ton Manual Chain Hoist / 15 Ft. Chain
The Atlas HOISTEK HCH-010-15 is a durable and efficient manual chain hoist designed to meet the demands of heavy-duty lifting tasks. With a 1-ton load capacity and a 15-foot lift height, this hoist offers extended reach while maintaining the same high-performance features and rugged reliability expected from Atlas Lifting & Rigging.
Constructed with a reinforced steel body and equipped with a hardened alloy steel chain, the HCH-010-15 delivers smooth, controlled operation and enhanced load security. Great for use in industrial, construction, and rigging applications, this hoist is built to perform safely and consistently in harsh environments.
Key Features:
- Rated Capacity: 1 Ton (2,000 lbs)
- Extended Lift Height: 15 Feet
- All-Steel Construction: Reinforced housing protects internal components and withstands harsh conditions
- Hardened Load Chain: Premium Grade 80 alloy steel for long service life and dependable lifting
- Reliable Load Brake: The mechanical brake system automatically holds the load in position for safe operation
- Swivel Hooks: Forged top and bottom hooks rotate 360° and include safety latches for secure handling
- Efficient Operation: Precision gearing reduces operator effort and ensures smooth chain travel
- Compact Headroom: Optimized design allows use in limited vertical space
Specifications:
Model Number HCH-010-15
Rated Capacity 1 Ton (2,000 lbs)
Lift Height 15 Feet
Load Chain Material Grade 80 Alloy Steel
Load Chain Diameter 6 mm (approx.)
Effort to Lift Full Load ~33 lbs
Headroom (hook to hook) Approx. 13 inches
Hook Type Forged Steel with Safety Latch
Brake Type Mechanical Weston-Style Load Brake
Net Weight Approx. 27–30 lbs
Compliance Meets ASME B30.16, CE Certified
