Product Overview

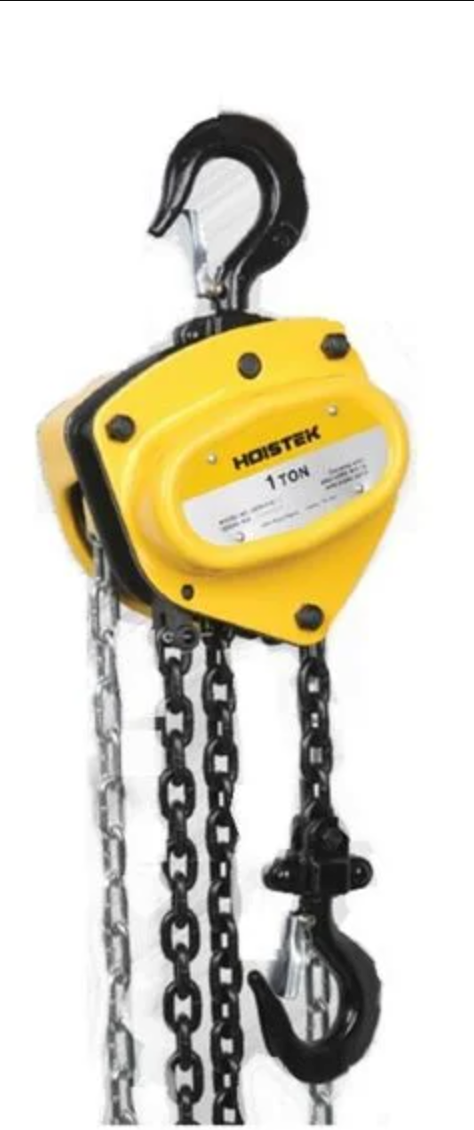

Atlas Lifting & Rigging HOISTEK HCH-010-10 Chain Hoist
1 Ton Manual Chain Hoist – 10 Ft. Chain
The Atlas HOISTEK HCH-010-10 is a premium-grade manual chain hoist engineered for precision lifting and dependable performance in industrial environments. Designed with durable components and a compact profile, this 1-ton hoist delivers reliable operation for construction, maintenance, fabrication, and warehouse applications.
With a 10-foot standard lift and a hardened alloy steel chain, the HCH-010-10 offers smooth operation, high load security, and long-lasting performance. The hoists design and safety features make it an ideal solution for both stationary and portable lifting tasks.
Key Features:
- Rated Capacity: 1 Ton (2,000 lbs)
- Standard Lift Height: 10 Feet
- Durable Steel Housing: Provides rugged protection for internal components
- Grade 80 Load Chain: Precision-machined alloy steel for high tensile strength and wear resistance
- Mechanical Load Brake: Automatic braking system ensures secure load holding and controlled descent
- Forged Swivel Hooks: Top and bottom hooks with 360° rotation and safety latches for secure attachment
- Low Headroom Design: Ideal for confined lifting spaces
- Smooth Chain Operation: Efficient gearing reduces effort and increases control during lifting and lowering
Specifications:
SpecificationDetails
Model Number HCH-010-10
Rated Capacity 1 Ton (2,000 lbs)
Standard Lift 10 Feet
Load Chain Material Grade 80 Alloy Steel
Load Chain Diameter 6 mm (approx.)
Effort to Lift Full Load ~33 lbs (varies slightly)
Headroom (hook to hook) Approx. 13 inches
Hook Type Forged Steel with Safety Latch
Brake Type Mechanical Weston-Style Load Brake
Net Weight Approx. 22–25 lbs
Compliance Meets ASME B30.16, CE Certified
