Product Overview

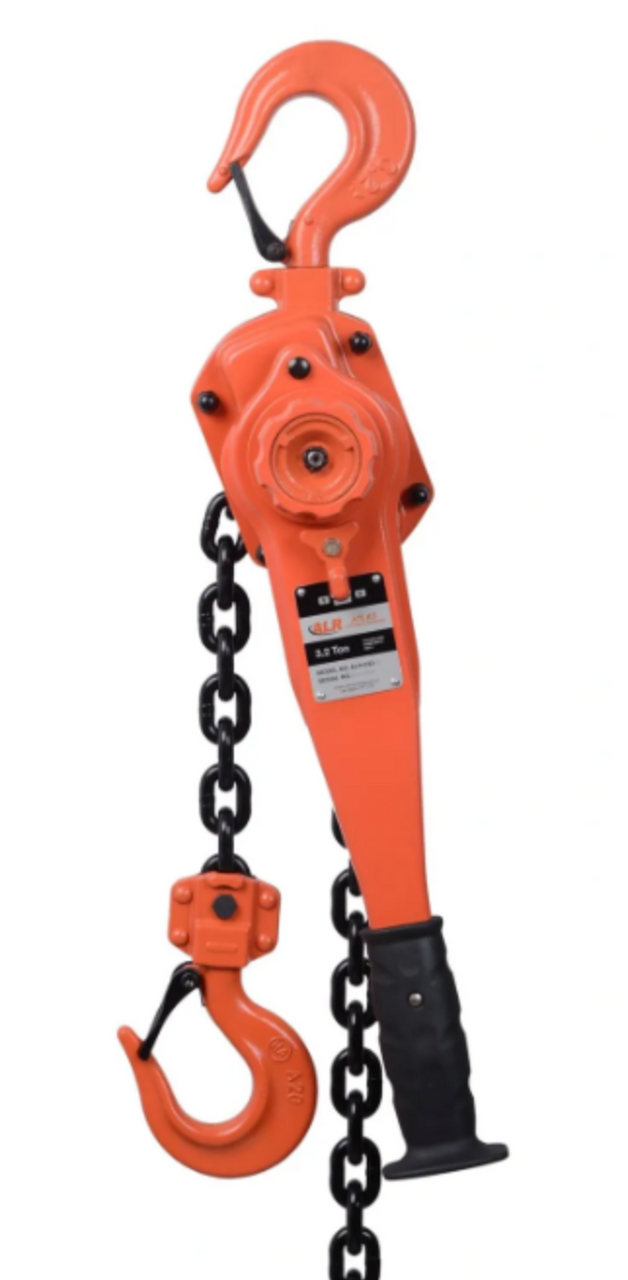

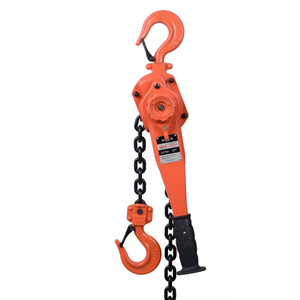

Atlas Lifting and Rigging ALH-032-10-SH Lever Hoist with Ship Hooks
Designed for demanding lifting tasks in marine, industrial, and heavy construction environments, the ALH-032-10-SH delivers rugged performance with enhanced hook versatility. With a 3.2-ton capacity and a 10-foot lift height, this hoist features forged ship hooks that provide a broader opening to secure oversized or non-standard lifting points easily.
Constructed from heavy-duty materials and equipped with a heat-treated alloy steel load chain, this model is built to perform reliably in harsh environments. The free-chaining function allows for quick slack chain adjustment, while the three-position selector ensures precise control during operation.
Key Features:
- 3.2-Ton Load Capacity: Suitable for high-capacity lifting and rigging.
- 10-Foot Lift Height: Provides greater reach for taller or offset lifts.

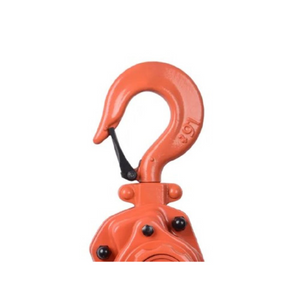

- Ship Hooks with Safety Latches: Allow for easier attachment to irregular anchor points.
- Heat-Treated Alloy Steel Load Chain: Ensures long-lasting strength and durability.
- Free-Chaining Mechanism: Enables fast slack chain adjustment without engaging the gear.
- Three-Position Selector Switch: Offers controlled lifting, lowering, or neutral movement.
- Ergonomic Lever Handle: Designed for comfort and operator efficiency.
Specifications:
- Model: ALH-032-10-SH
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 10 ft (3.0 m)
- Overload Protection: Not included
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 52 lbs (23.6 kg)
The Atlas ALH-032-10-SH is the go-to hoist for professionals who require durable lifting power and hook adaptability for unique or oversized anchor points.
