Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 15 Ft. Chain Ship Hook

Write a Review
$978.29
SKU: ALH-032-15-SH
Availability: In stock
Weight: 45.98 LBS
Width: 21.06 (in)
Height: 7.09 (in)
Depth: 8.66 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 15 Ft. Chain Ship Hook

Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 15 Ft. Chain Ship Hook

$978.29

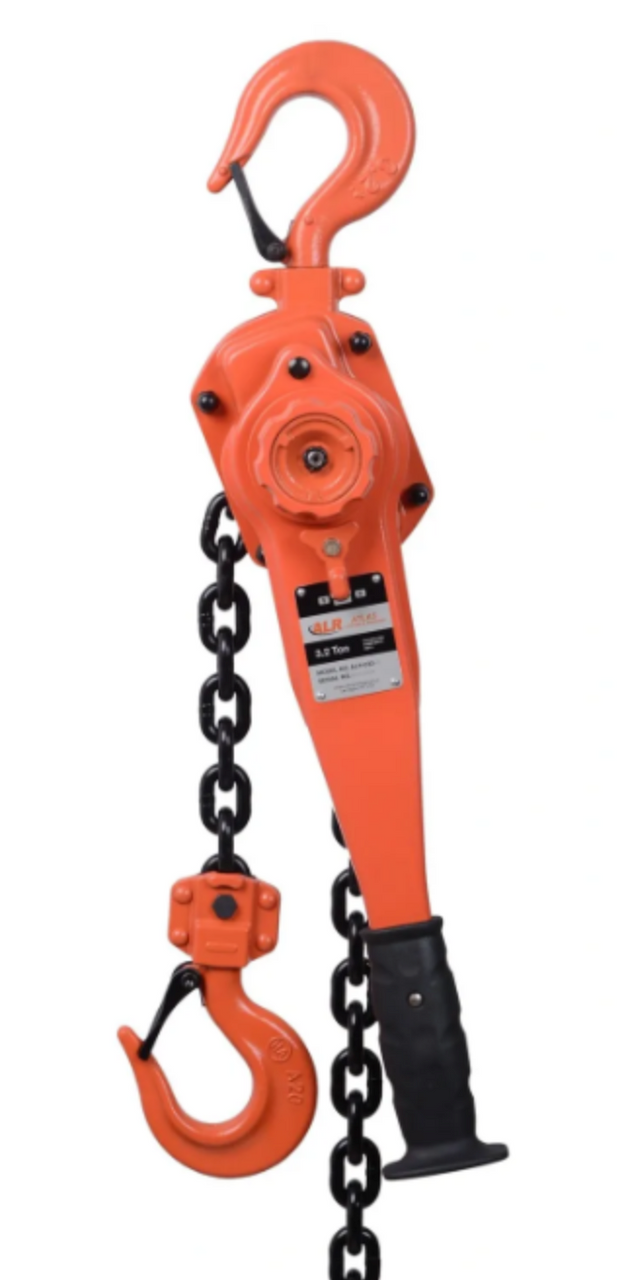

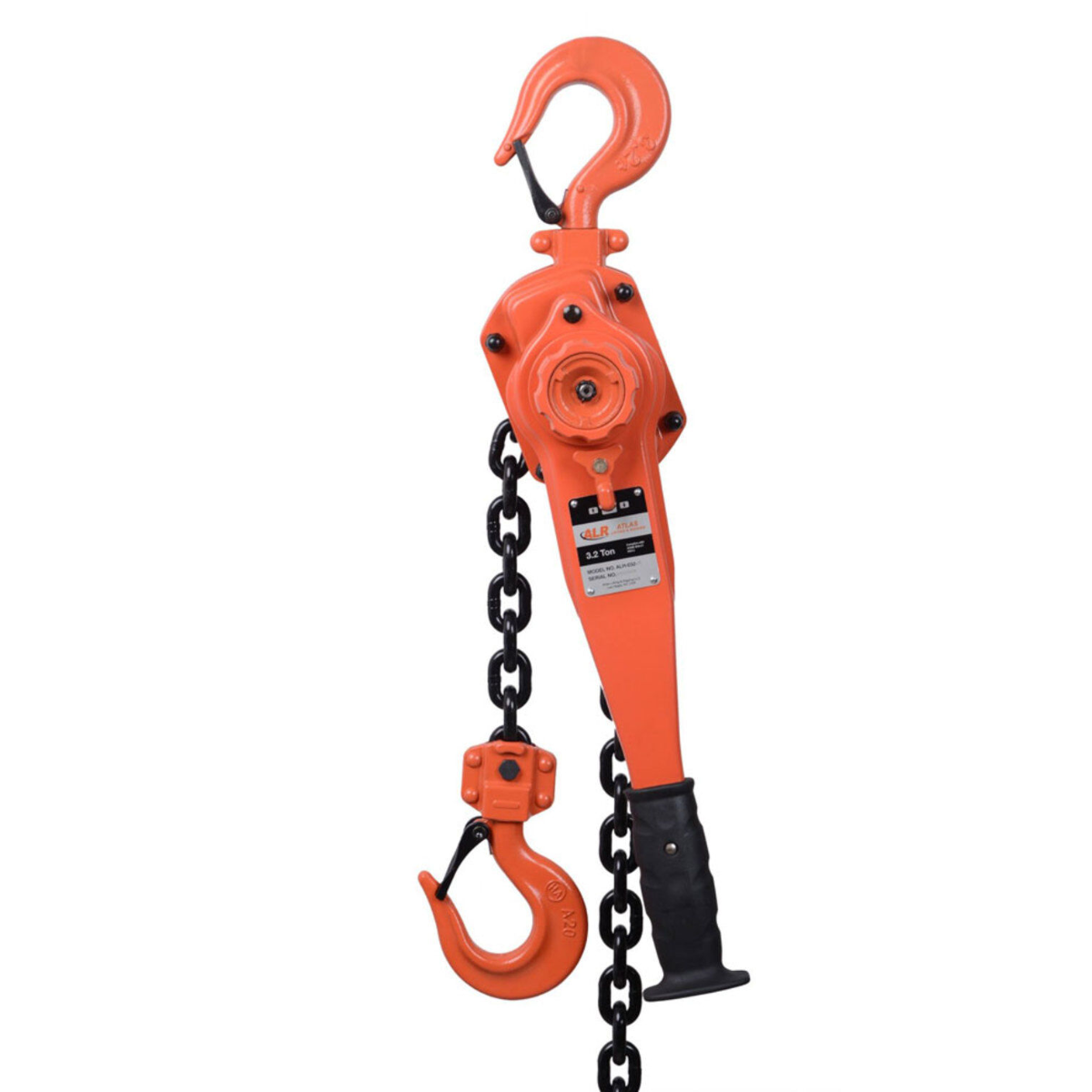

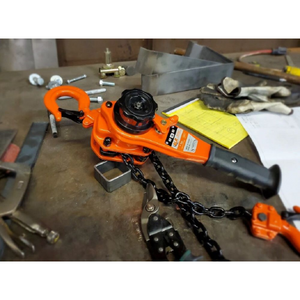

Atlas Lifting and Rigging ALH-032-15-SH Lever Hoist with Ship Hooks

The ALH-032-15-SH lever hoist is designed to meet the demands of heavy-duty lifting in marine, construction, and industrial environments where robust lifting capacity and versatile hook connections are essential. Featuring a 3.2-ton load capacity and 15-foot lift height, this model is equipped with forged ship hooks that provide a wider throat opening for easy attachment to large or irregular anchor points.

Constructed for durability and ease of use, this hoist includes a heat-treated alloy steel load chain and forged swivel hooks with safety latches, ensuring a secure grip during lifting operations. The free-chaining feature enables quick chain positioning, while the three-position selector switch provides precise control for lifting and lowering.

Key Features:

  • 3.2-Ton Load Capacity: Reliable strength for heavy lifting tasks.
  • 15-Foot Lift Height: Extended reach for versatile lifting applications.

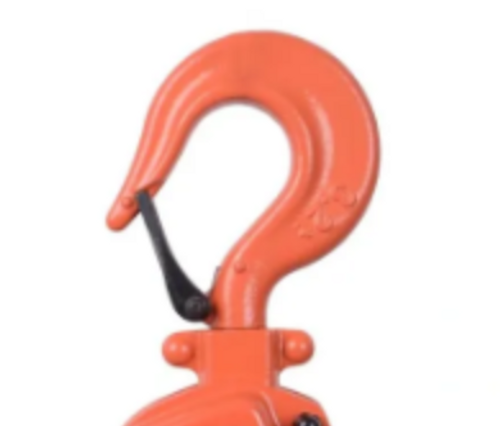

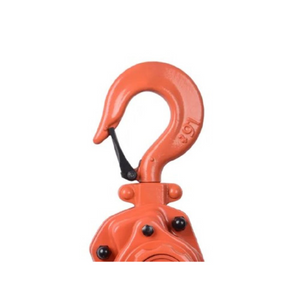

  • Forged Ship Hooks with Safety Latches: Wide throat opening accommodates non-standard lifting points.
  • Heat-Treated Alloy Steel Load Chain: Provides long-lasting durability and wear resistance.
  • Free-Chaining Mechanism: Enables fast and easy chain slack adjustment.
  • Three-Position Selector Switch: Smooth transition between lift, lower, and neutral settings.
  • Ergonomic Lever Handle: Designed for comfort and reduced operator fatigue.

Specifications:

  • Model: ALH-032-15-SH
  • Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
  • Lift Height: 15 ft (4.6 m)
  • Overload Protection: Not included
  • Hook Type: Forged ship hooks with safety latches
  • Load Chain: Heat-treated alloy steel
  • Lever Handle Length: Approx. 16 inches
  • Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 64 lbs (29.0 kg)

The Atlas ALH-032-15-SH is an excellent choice for professionals requiring heavy-duty lifting power with flexible hook options suitable for challenging rigging environments.
