Product Overview

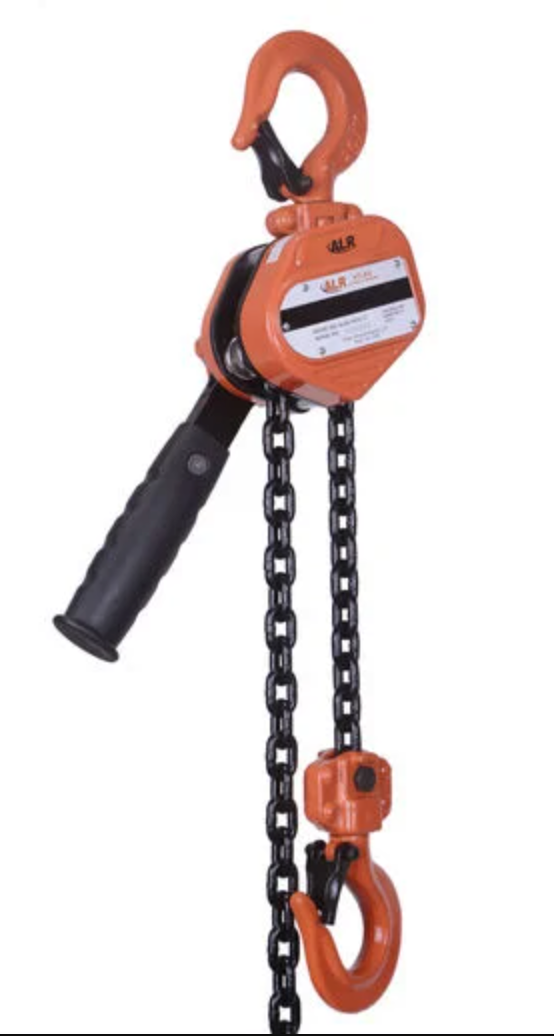

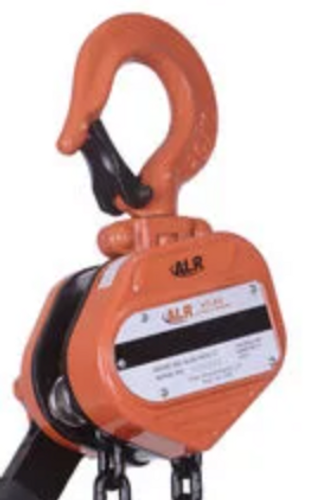

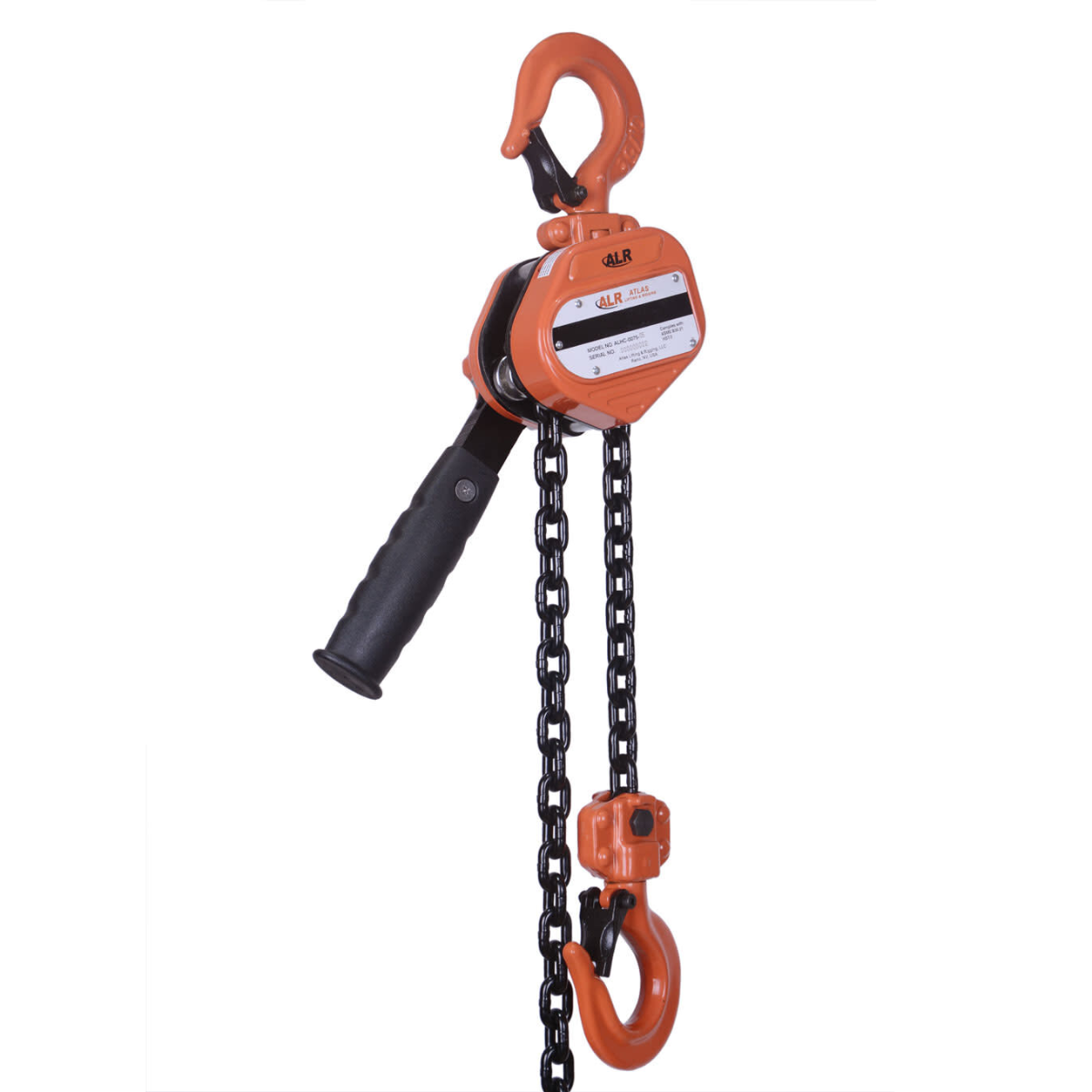

Atlas Lifting and Rigging ALHC-0025-30 Compact Lever Hoist
Built for reach, reliability, and precision in the most confined or elevated spaces, the ALHC-0025-30 lever hoist delivers exceptional performance in a highly compact form. With a 0.25-ton (500 lbs) lifting capacity and an extended 30-foot lift height, this hoist is the go-to solution for technicians and rigging professionals who require long reach and low weight.
The rugged steel body, ergonomic lever handle, and forged swivel hooks combine to provide safety and efficiency. Its free-chaining feature allows for quick and smooth load positioning, even at extended chain lengths.
Key Features:
- 0.25-Ton Capacity: Ideal for controlled, lightweight lifting and pulling tasks.
- 30-Foot Lift Height: Maximum chain reach for high-access applications.
- Ultra-Compact & Lightweight: Designed for portability and confined space use.
- Free-Chaining Operation: Rapid slack chain adjustment without tools.

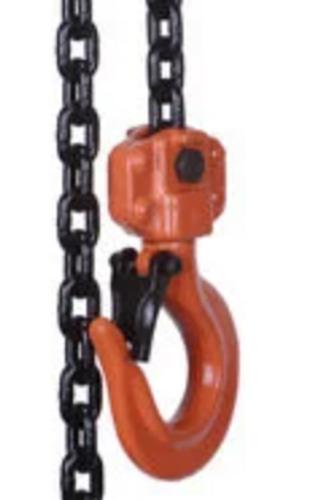

- Forged Alloy Swivel Hooks: Secure load connection with 360° rotation and safety latches.
- Steel Housing: Durable construction built for demanding field conditions.
- Ergonomic Lever Design: Smooth and efficient operation with reduced hand fatigue.
Specifications:
- Model: ALHC-0025-30
- Capacity: 0.25 Ton (500 lbs / 227 kg)
- Lift Height: 30 ft (9.1 m)
- Hook Type: Forged alloy swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Free Chaining: Yes
- Body Material: Steel
- Lever Handle Length: Approx. 6 inches
- Net Weight: Approx. 10.5 lbs (4.8 kg)
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
The Atlas ALHC-0025-30 compact lever hoist is built for professionals who demand extended lift capability, rugged durability, and easy portability in one precision-crafted tool.
