Product Overview

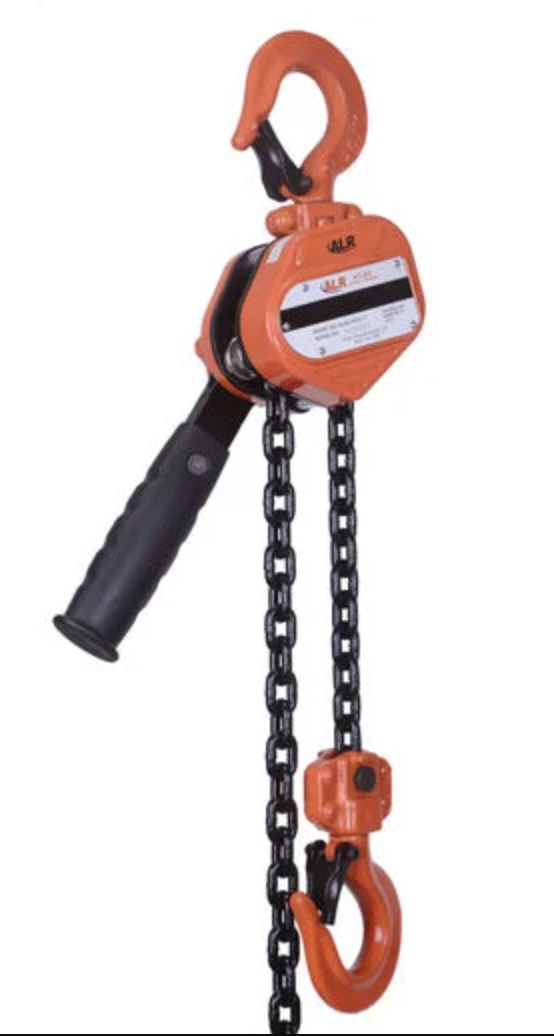

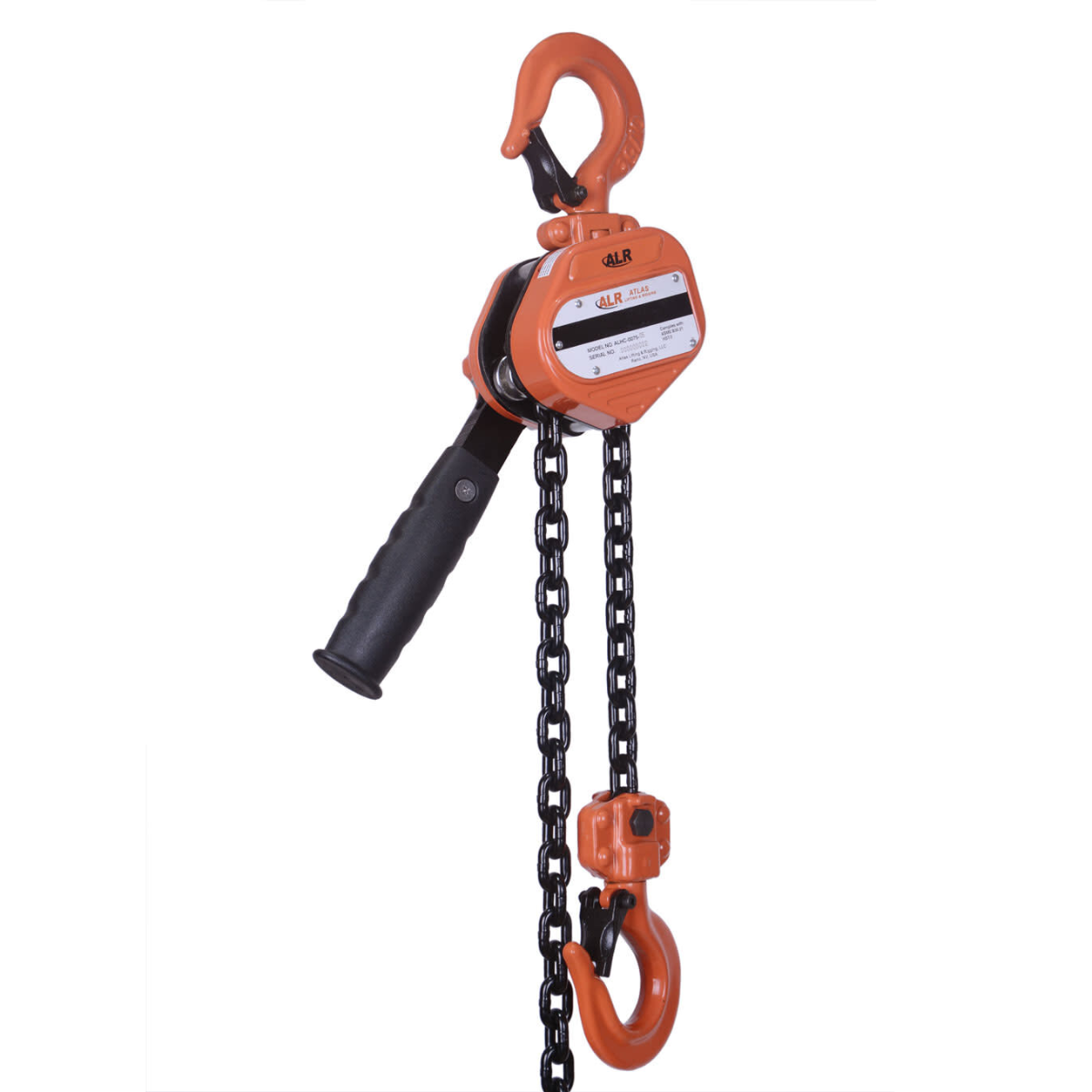

Atlas Lifting and Rigging ALHC-0025-20 Compact Lever Hoist
The ALHC-0025-20 lever hoist offers extended vertical reach in a lightweight, compact package. With a 0.25-ton (500 lbs) capacity and a 20-foot lift height, this hoist is purpose-built for light-duty lifting, pulling, and load positioning where extra chain length is essential—ideal for rigging in tall structures, confined industrial areas, and overhead maintenance work.
Its all-steel construction, ergonomic lever, and precision-engineered chain system provide long-lasting reliability, while the compact form factor allows for easy storage and maneuverability in tight spaces.
Key Features:
- 0.25-Ton Capacity: Perfect for small load handling and controlled movement.
- 20-Foot Lift Height: Maximum reach for vertical lifting in elevated or distant applications.
- Free-Chaining Feature: Enables fast, tool-free chain positioning.
- Forged Swivel Hooks with Safety Latches: Ensure secure and flexible load attachment.
- Compact & Lightweight Design: Easy to transport and operate in restricted spaces.
- Durable Steel Body: Withstands frequent use in challenging environments.
- Ergonomic Lever: Allows smooth operation with minimal effort.
Specifications:
- Model: ALHC-0025-20
- Capacity: 0.25 Ton (500 lbs / 227 kg)
- Lift Height: 20 ft (6.1 m)
- Hook Type: Forged alloy swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Free Chaining: Yes
- Body Material: Steel
- Lever Handle Length: Approx. 6 inches
- Net Weight: Approx. 7.9 lbs (3.6 kg)
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
The Atlas ALHC-0025-20 is an ideal solution for technicians and riggers needing a compact, reliable hoist with extended lift capability for light-duty tasks.
