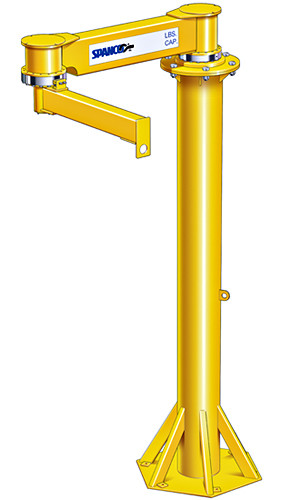

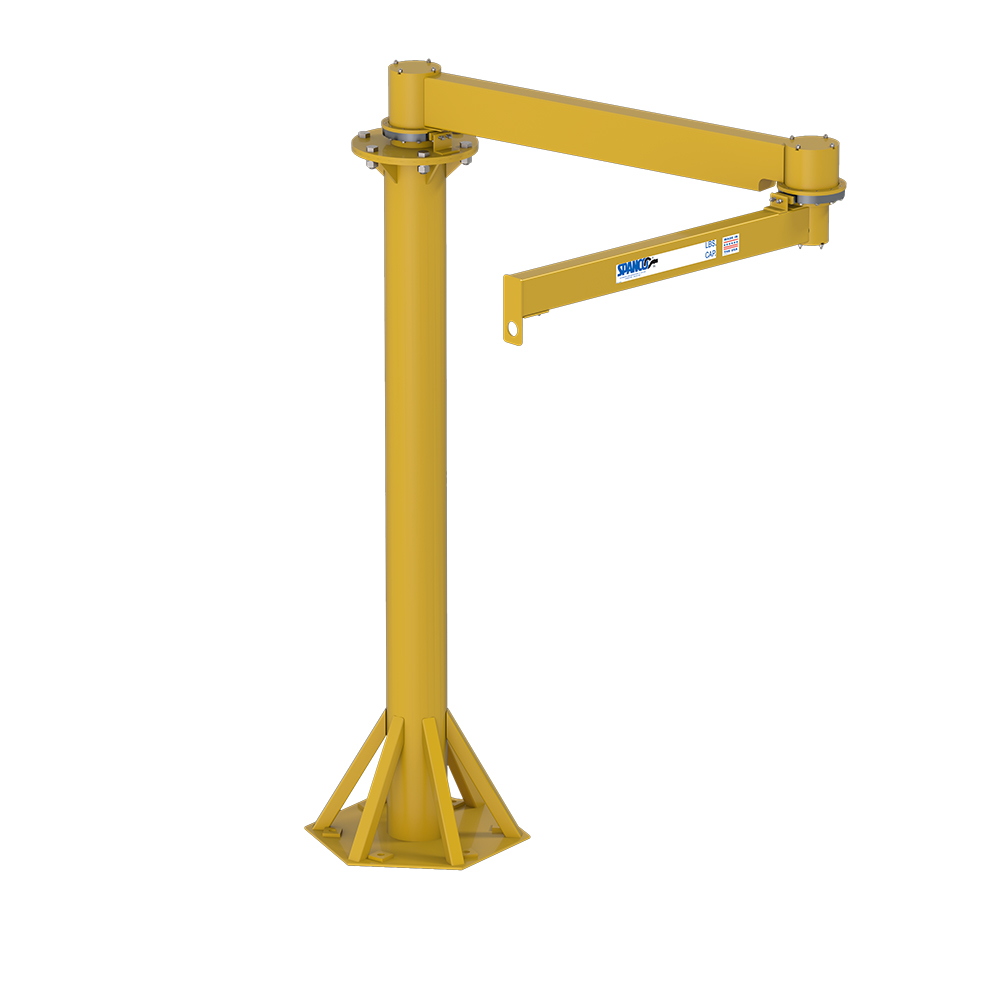

ARTICULATING JIB, FREESTANDING 500 LBS (INDOOR), Capacity: 500 lbs, Span: 16'-0'', Hook Height: 14'-0", Inner Arm Length: 8'-6, Outer Arm Length: 7' - 6'', 402M-16-14-500

Product Overview

Model: 402M-16-14-500

Type: Articulating Jib Crane, Freestanding

Capacity: 500 lbs (226.8 kg)

Span: 16 feet (4.88 meters)

Inner Arm Length: 8 feet 6 inches (2.59 meters)

Outer Arm Length: 7 feet 6 inches (2.29 meters)

Bearing Width: 4 5/8 inches (117 mm)

Hook Height: 14 feet (4.27 meters)

Hook Diameter: 2 1/2 inches (63.5 mm)

Height Under Beam: 14 feet 3 inches (4.34 meters)

Outer Arm Height: 14 feet 9 inches (4.5 meters)

Overall Height: 15 feet 10 11/16 inches (4.85 meters)

Mast Diameter: 12 3/4 inches (324 mm)

Gusset Height: 20 inches (508 mm)

Anchor Bolt Pattern: 30 inches (762 mm)

Foundation Depth: 4 feet (1.22 meters)

Estimated Weight: 1168 lbs (530.2 kg)

Coating & Painting: Yellow spray paint

Overview: The 402M-16-14-500 articulating jib crane is designed for indoor environments where a freestanding solution for lifting 500 lbs (226.8 kg) is required. With a robust construction and a span of 16 feet, this crane offers versatility and reliability for various industrial and commercial applications.

Key Features:

• High Capacity: Capable of lifting loads to 500 lbs (226.8 kg), suitable for handling moderate-weight materials and components with ease.

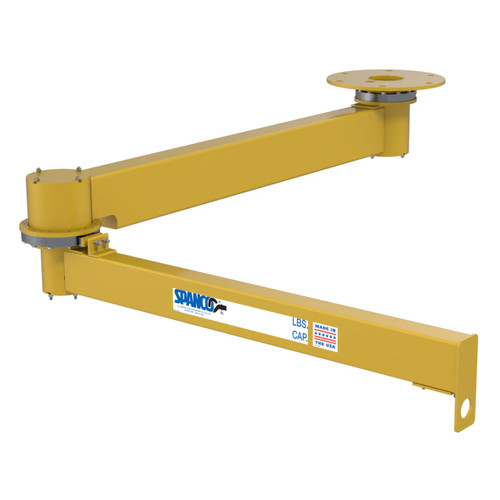

• Articulating Design: This machine features an articulating arm that allows for flexible positioning and maneuverability within its 16-foot operational radius, ensuring precise load placement.
• Freestanding: Designed to be freestanding with specific anchor bolt patterns and foundation depth requirements, providing stability and structural integrity.
• Tall Hook Height: Offers a hook height of 14 feet (4.27 meters), accommodating lifting operations that require height clearance under the beam.
• Durable Construction: Built with a sturdy mast, gussets for reinforcement, and a yellow spray paint coating for increased visibility and corrosion resistance.

Applications:

• Manufacturing: Facilitates efficient handling of materials and equipment in manufacturing processes, improving workflow and productivity.
• Warehouse and Distribution: This position supports the loading and unloading of goods and materials, optimizing storage space and operational efficiency in warehouses.
• Construction Sites: Ideal for lifting materials and equipment at construction sites, aiding in construction processes and ensuring site safety.

The 402M-16-14-500 articulating jib crane provides a robust and efficient lifting solution for indoor environments requiring versatile and reliable material handling capabilities. Its freestanding design, combined with sturdy construction and ergonomic features, ensures optimal performance across various industrial and commercial applications, contributing to enhanced operational efficiency and safety.
