ARTICULATING JIB, FREESTANDING 250 LBS (INDOOR), Capacity: 250 lbs, Span: 16'-0'', Hook Height: 14'-0", Inner Arm Length: 8'-6, Outer Arm Length: 7' - 6'', 402M-16-14-250

Product Overview

Model: 402M-16-14-250

Type: Articulating Jib Crane, Freestanding

Capacity: 250 lbs (113.4 kg)

Span: 16 feet (4.88 meters)

Inner Arm Length: 8 feet 6 inches (2.59 meters)

Outer Arm Length: 7 feet 6 inches (2.29 meters)

Bearing Width: 4 5/8 inches (117 mm)

Hook Height: 14 feet (4.27 meters)

Hook Diameter: 2 1/2 inches (63.5 mm)

Height Under Beam: 14 feet 3 inches (4.34 meters)

Outer Arm Height: 14 feet 9 inches (4.5 meters)

Overall Height: 15 feet 10 11/16 inches (4.85 meters)

Mast Diameter: 12 3/4 inches (324 mm)

Gusset Height: 20 inches (508 mm)

Anchor Bolt Pattern: 30 inches (762 mm)

Foundation Depth: 3 feet (0.91 meters)

Estimated Weight: 1167 lbs (529.4 kg)

Coating & Painting: Yellow spray paint

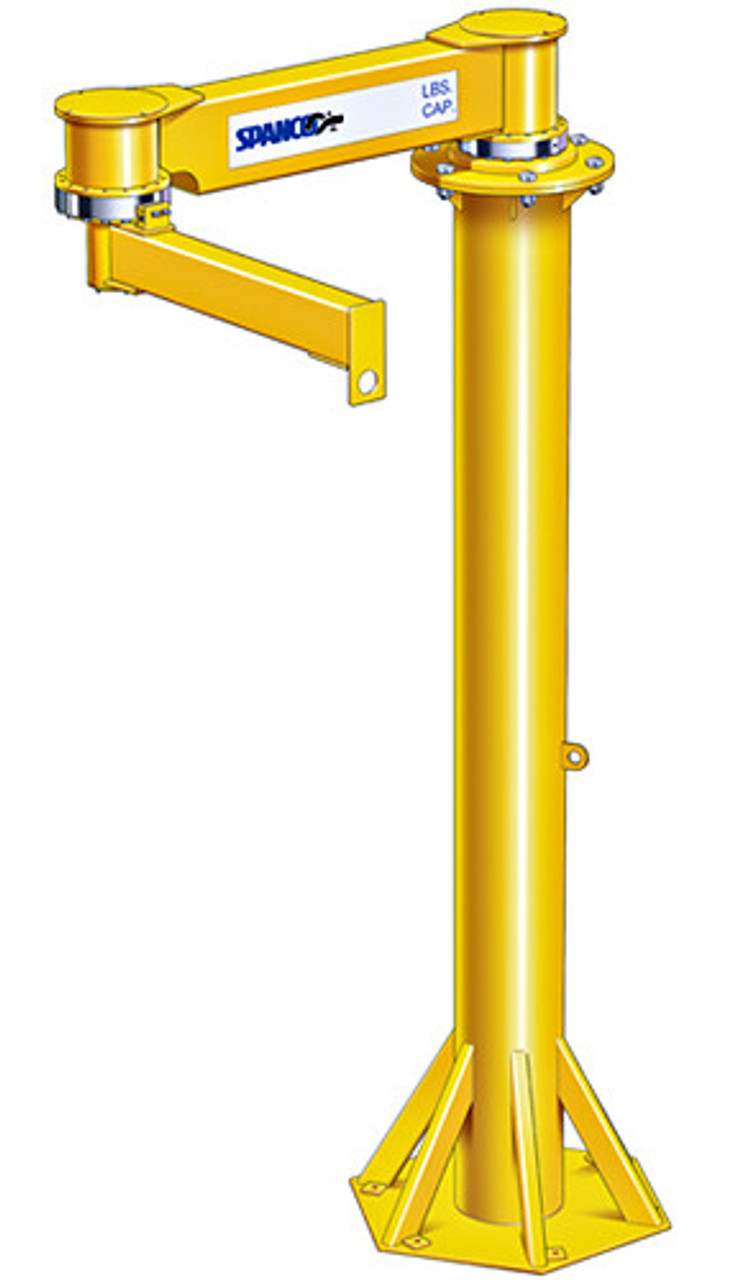

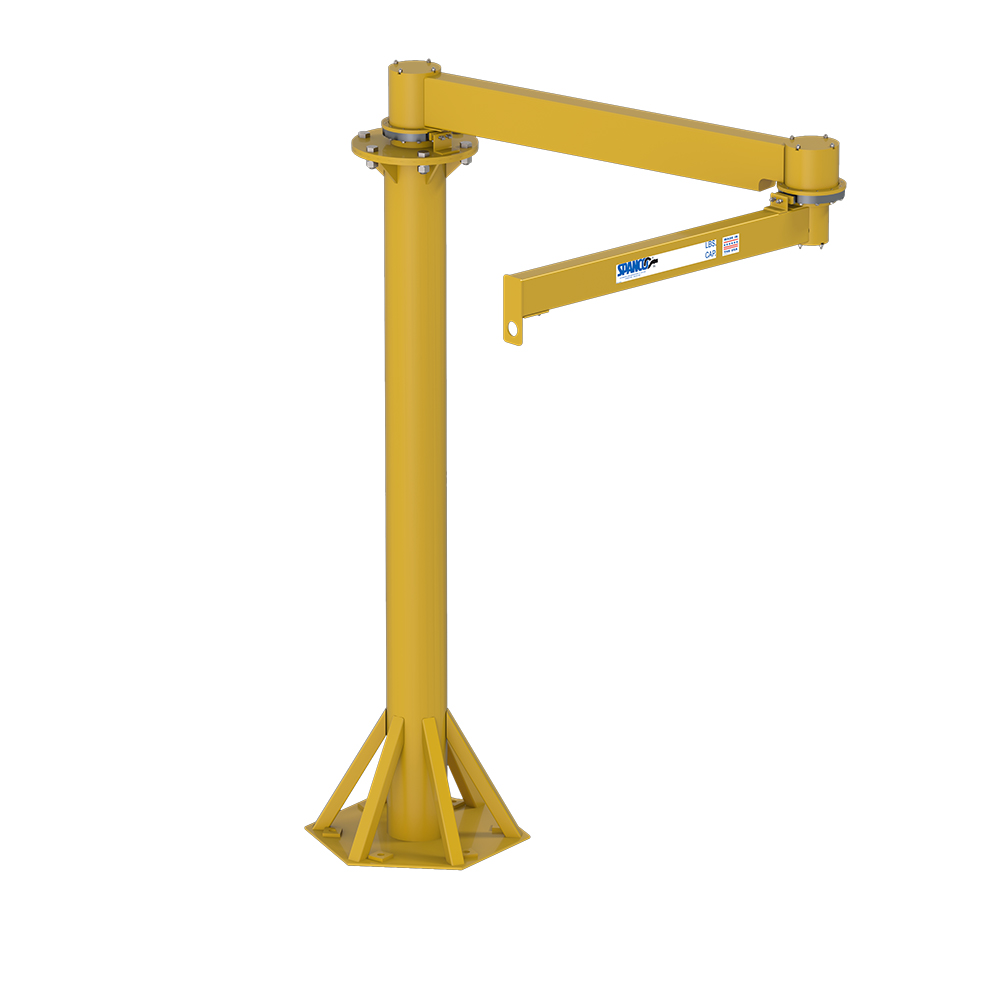

Overview: The 402M-16-14-250 articulating jib crane is designed for indoor environments where a freestanding solution for lifting to 250 lbs (113.4 kg) is required. With a robust construction and a span of 16 feet, this crane provides versatility and reliability for various industrial and commercial applications.

Key Features:

• Moderate Capacity: Capable of lifting loads to 250 lbs (113.4 kg), making it suitable for handling light to moderate-weight materials and components efficiently.
• Articulating Design: Features an articulating arm that allows for flexible positioning and maneuverability within its 16-foot operational radius, ensuring precise placement of loads.
• Freestanding: Designed to be freestanding with specific anchor bolt patterns and foundation depth requirements, ensuring stability and structural integrity.
• Tall Hook Height: Offers a hook height of 14 feet (4.27 meters), accommodating lifting operations that require significant height clearance under the beam.
• Durable Construction: Built with a sturdy mast, gussets for reinforcement, and a yellow spray paint coating for increased visibility and corrosion resistance.

Applications:

• Manufacturing: Facilitates efficient handling of materials, tools, and equipment in manufacturing processes, improving workflow and productivity.
• Warehouse and Distribution: Supports loading and unloading of goods and materials, optimizing storage space and operational efficiency in warehouses and distribution centers.
• Maintenance: Ideal for lifting materials and tools during maintenance and repair operations, enhancing safety and efficiency in various work environments.

Technical Specifications:

• Span: The crane has a total span of 16 feet, providing a broad reach for material handling operations.
• Inner Arm Length: The inner arm extends 8 feet 6 inches, allowing for considerable flexibility in load positioning.
• Outer Arm Length: The outer arm measures 7 feet 6 inches, enhancing the crane's overall reach and maneuverability.
• Bearing Width: The bearing width of 4 5/8 inches ensures smooth and stable operation.
• Hook and Arm Heights: With a hook height of 14 feet and an outer arm height of 14 feet 9 inches, the crane accommodates a variety of lifting tasks.
• Overall Height: The overall height of 15 feet 10 11/16 inches provides ample vertical clearance for indoor operations.

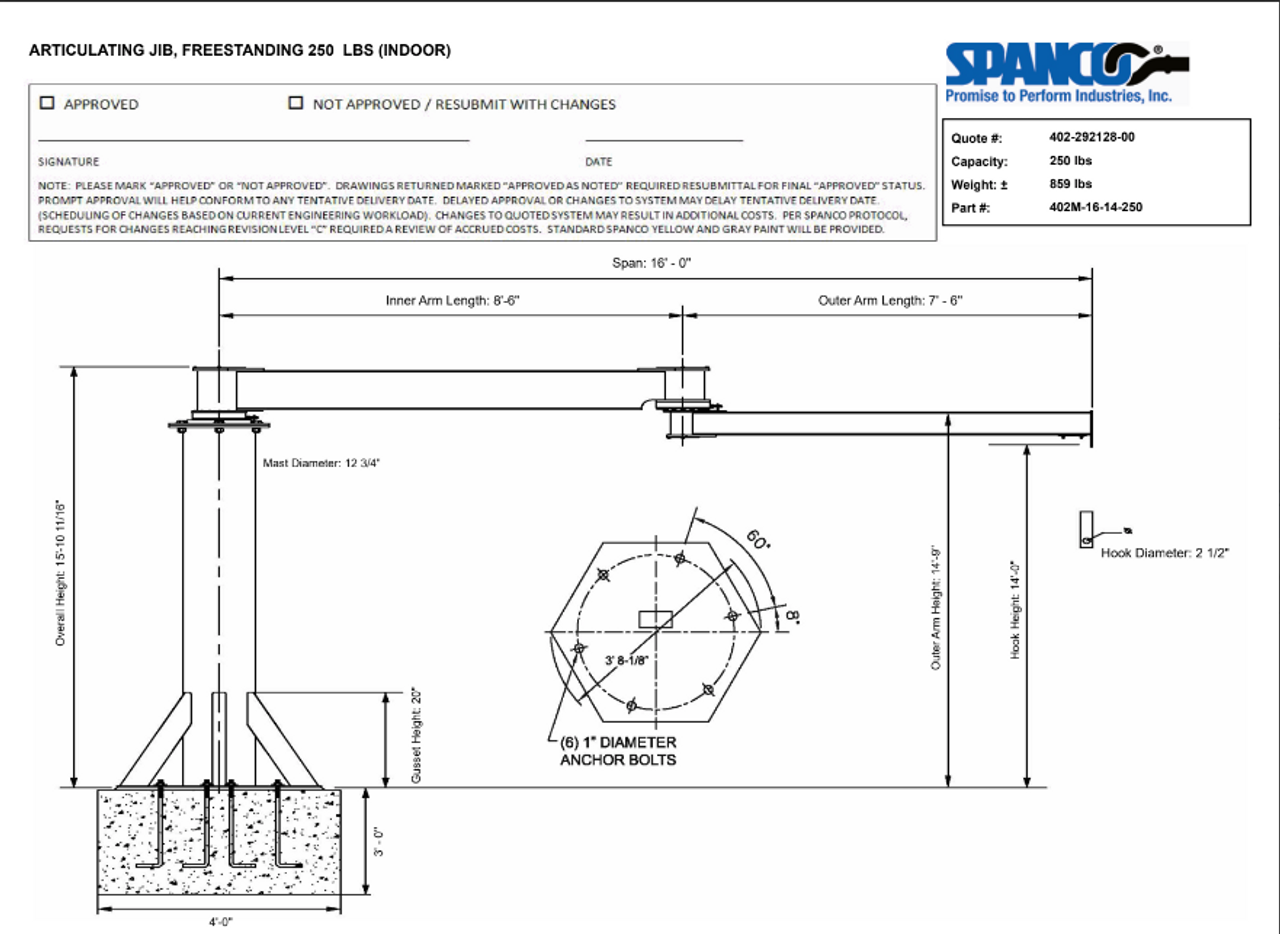

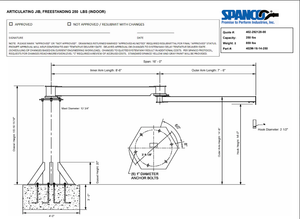

• Foundation and Stability: The anchor bolt pattern is 30 inches, and the foundation depth is 3 feet, ensuring the crane is securely mounted for safe operation.
• Weight and Durability: The crane has an estimated weight of 1167 lbs, reflecting its robust construction.

Coating and Finish: The crane is coated with yellow spray paint, enhancing visibility and providing protection against corrosion, ensuring longevity and durability in indoor environments.

The 402M-16-14-250 articulating jib crane offers a reliable and versatile solution for indoor environments requiring precise and moderate-capacity material handling. Its ergonomic design, durable construction, and freestanding features ensure consistent performance across various industrial and commercial applications, contributing to enhanced operational efficiency and safety.
