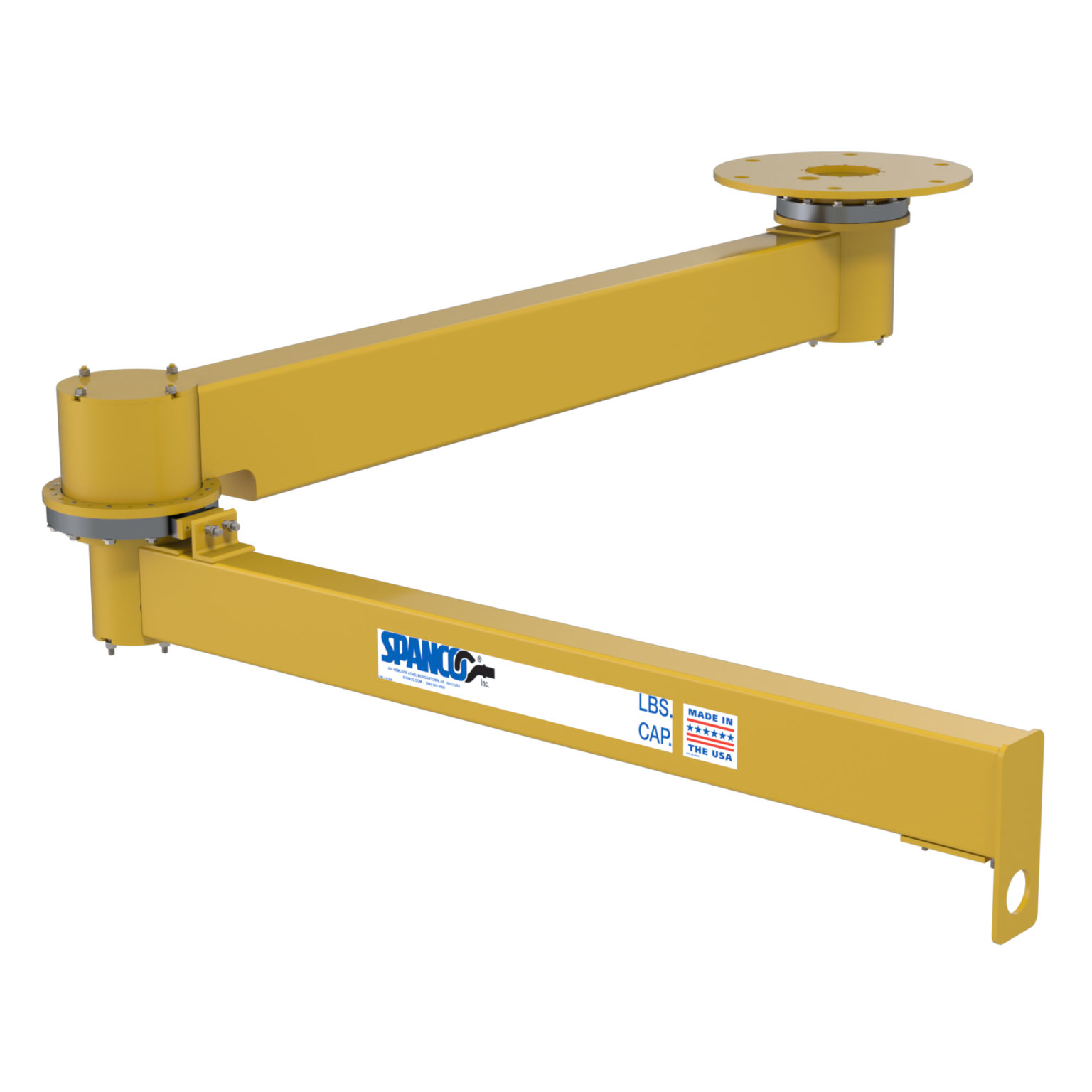

ARTICULATING JIB, CEILING MOUNTED 250 LBS (INDOOR), Capacity: 250 lbs, Span: 12'-0'', Inner Arm Length: 6'-6, Outer Arm Length: 5' - 6'', 400L-12-250

Product Overview

Model: 400L-12-250

Type: Articulating Jib, Ceiling Mounted (Indoor)

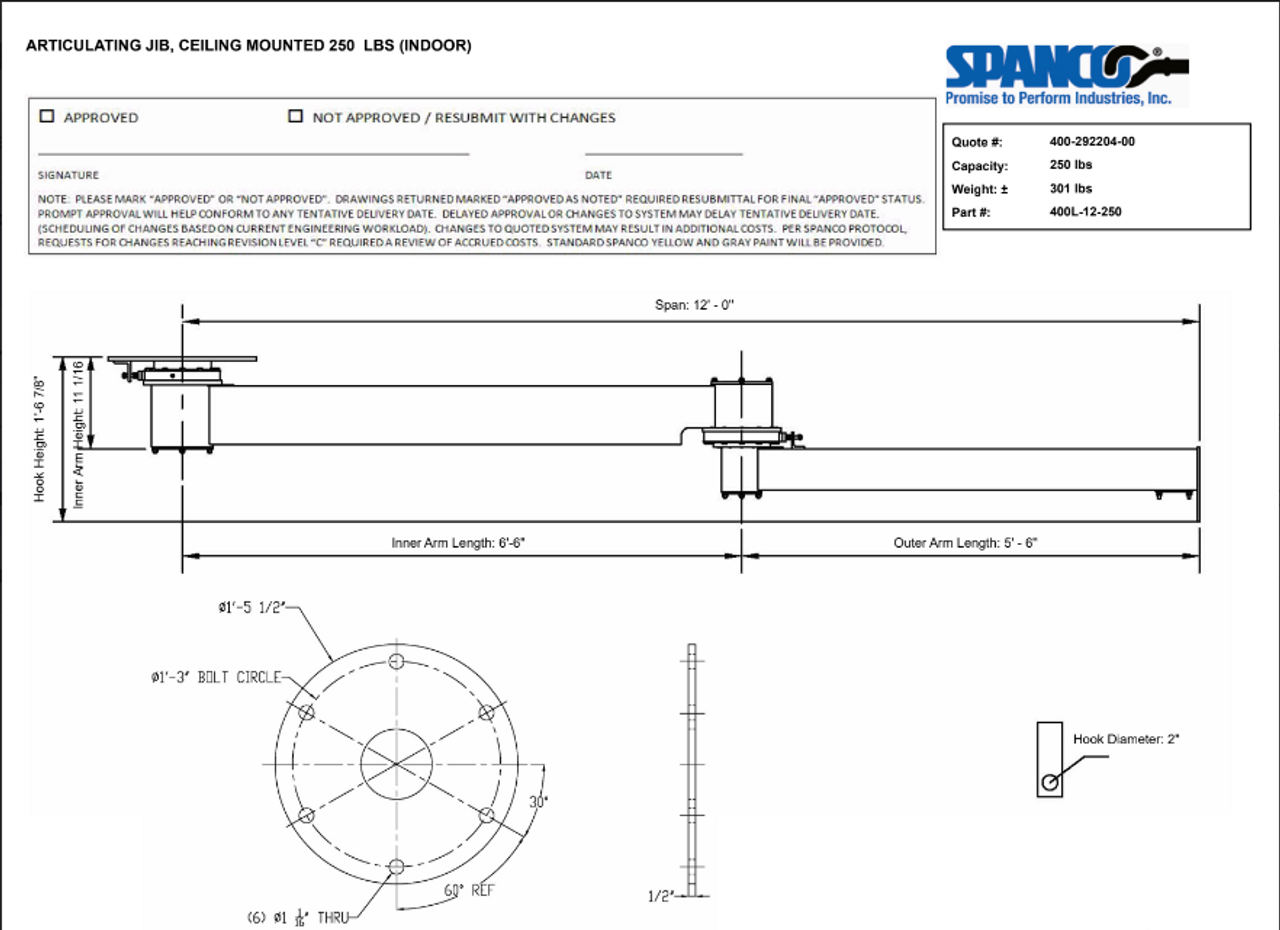

Specifications:

• Capacity: 250 lbs
• Span: 12' - 0''
• Inner Arm Length: 6' - 6''
• Outer Arm Length: 5' - 6''
• Bearing Width: 4 5/8"
• Hook Height: 1' - 6 7/8"
• Hook Diameter: 2"
• Inner Arm Height: 11 1/16"
• Coating & Painting: Painted with spray yellow for visibility and protection

Detailed Specifications:

Capacity:

• Capable of handling a maximum load of 250 lbs, suitable for light-duty lifting and material handling tasks.

Span:

• The total span of 12 feet provides a wide range of movement and coverage within the work area, enhancing flexibility in positioning and reaching different points.

Inner Arm Length:

• The inner arm length is 6 feet and 6 inches, extending from the mounting point and providing the primary reach of the crane.

Outer Arm Length:

• Outer arm length of 5 feet and 6 inches, enhancing the crane's maneuverability and ability to position loads with precision.

Bearing Width:

• Bearing a width of 4 5/8 inches, indicating the space available for rotation and articulation mechanisms, supporting the stability and smooth operation of the crane.

Hook Height:

• A hook height of 1 foot and 6 7/8 inches, the vertical distance from the mounting point to the lowest point of the hook, ensures the crane can clear obstacles and position loads accurately.

Hook Diameter:

• A hook diameter of 2 inches is crucial for determining the size and type of load attachments that can be used with the crane.

Inner Arm Height:

• Inner arm height of 11 1/16 inches, contributing to the overall profile of the crane and its ability to operate within confined spaces.

Coating & Painting:

• Finished with spray yellow paint, enhancing visibility for safety and protecting the crane from corrosion and wear, extending its service life.

Application:

This articulating jib crane is ideal for indoor use in environments where precise, light-duty lifting and positioning are required. The ceiling-mounted design saves floor space, allowing for efficient utilization of the work area. The articulated arms provide flexibility, making the crane suitable for tasks that involve navigating around obstacles or accessing confined spaces.
