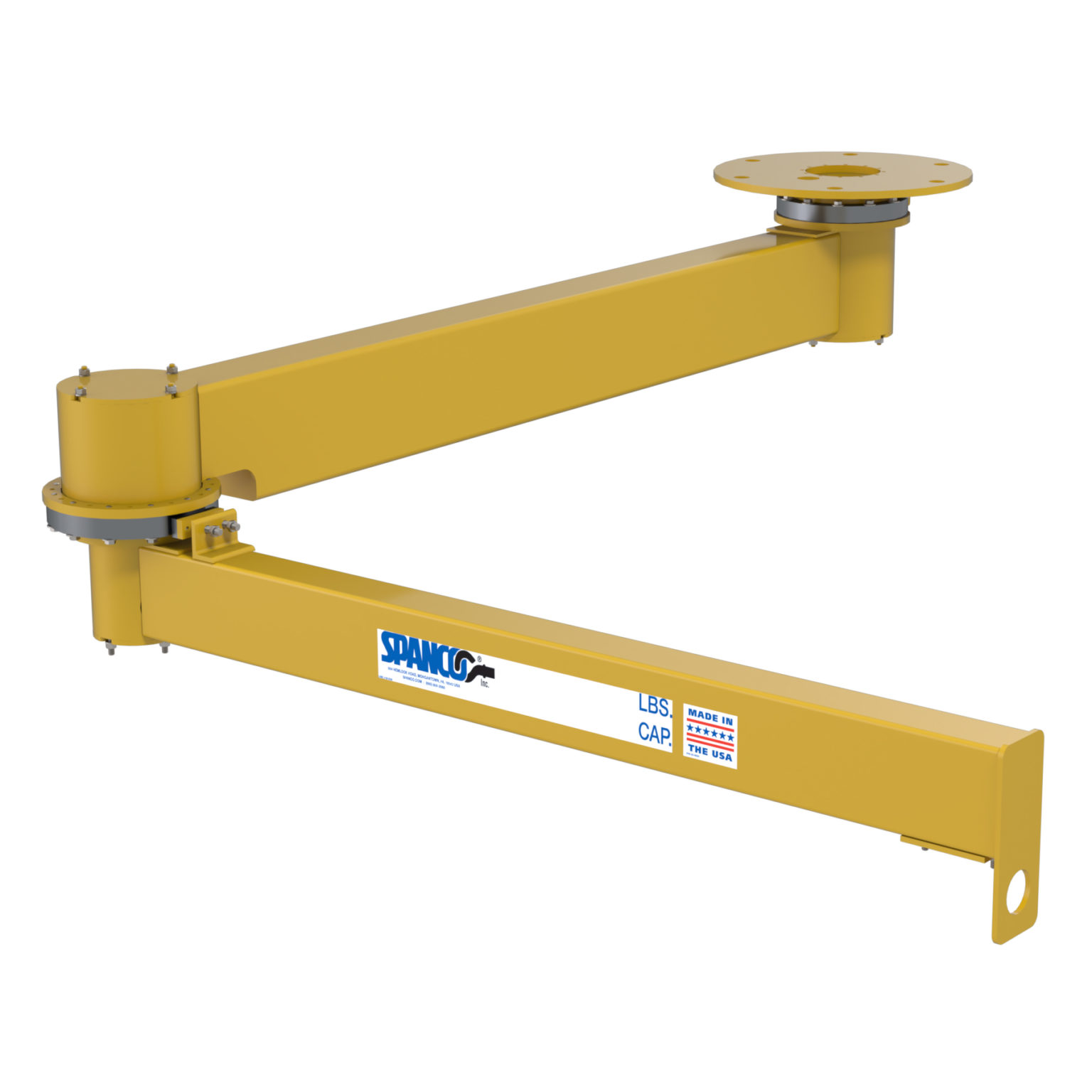

ARTICULATING JIB, CEILING MOUNTED 500 LBS (INDOOR), Capacity: 500 lbs, Span: 12'-0'', Inner Arm Length: 6'-6, Outer Arm Length: 5' - 6'', 400M-12-500

Product Overview

Model: 400M-12-500

Type: Articulating Jib, Ceiling Mounted (Indoor)

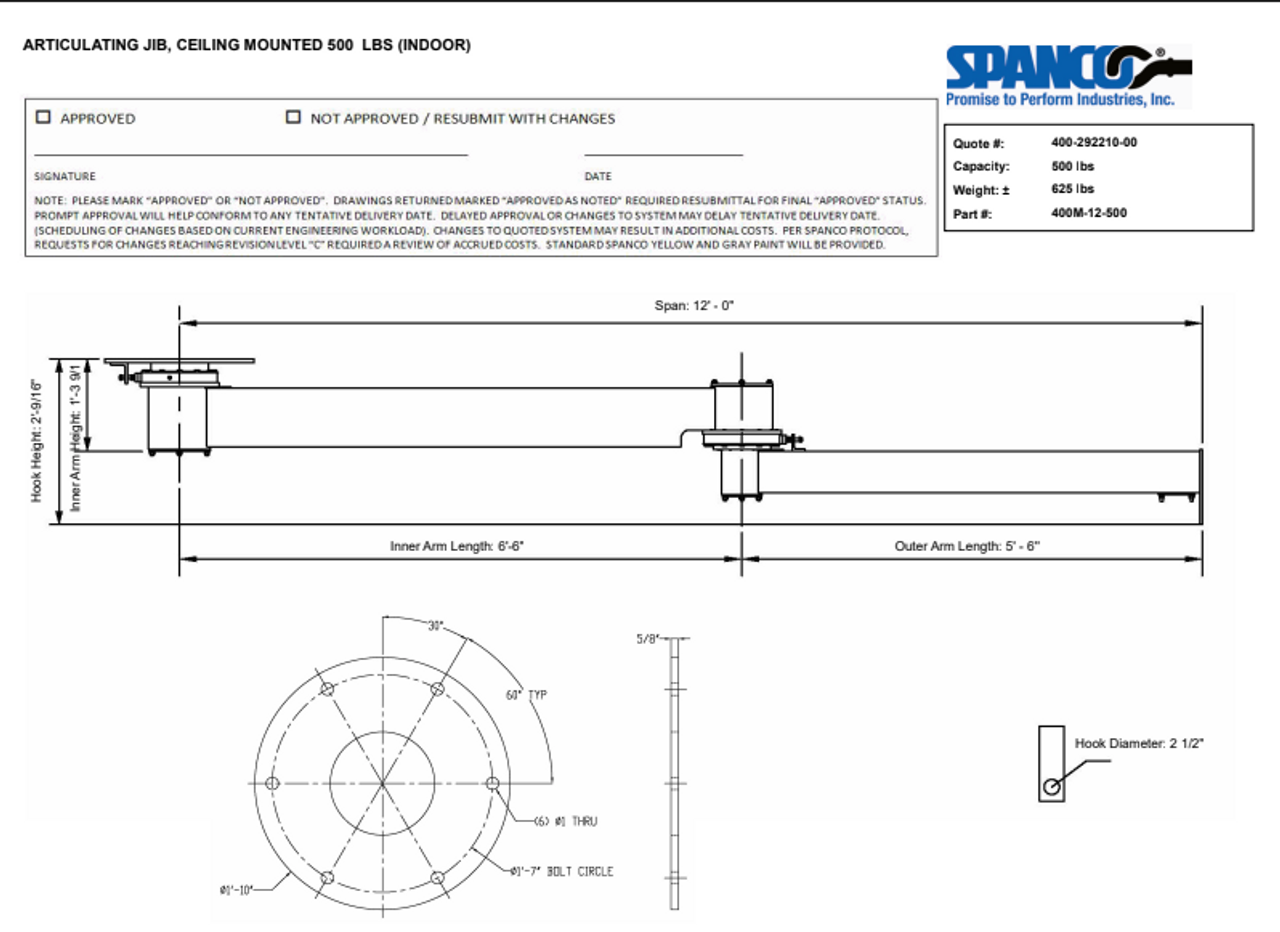

Specifications:

• Capacity: 500 lbs
• Span: 12' - 0''
• Inner Arm Length: 6' - 6''
• Outer Arm Length: 5' - 6''
• Bearing Width: 5 5/16"
• Hook Height: 2'-9/16"
• Hook Diameter: 2 1/2"
• Inner Arm Height: 1'-3 9/16"

Coating & Painting:

• Finish: Painted with spray yellow for visibility and protection.

Detailed Specifications:

1. Capacity:
   • The crane is capable of handling a maximum load of 500 lbs, suitable for light to moderate-duty lifting and material handling tasks.
2. Span:
   • The total span of the crane is 12 feet. This allows for a broad range of movement and coverage within the work area, providing flexibility in positioning and reaching different points.
3. Inner Arm Length:
   • The length of the inner arm is 6 feet and 6 inches. This arm extends from the mounting point and provides the primary reach of the crane.
4. Outer Arm Length:
   • The outer arm measures 5 feet and 6 inches. This articulating section enhances the crane's maneuverability and ability to position loads with precision.
5. Bearing Width:
   • The bearing width is 5 5/16 inches, indicating the space available for the rotation and articulation mechanisms. This width supports the stability and smooth operation of the crane.
6. Hook Height:
   • The height of the hook is 2 feet and 9/16 inches, which is the vertical distance from the mounting point to the lowest point of the hook. This height is important for ensuring that the crane can clear obstacles and position loads accurately.
7. Hook Diameter:
   • The diameter of the hook is 2 1/2 inches. This specification is crucial for determining the size and type of load attachments that can be used with the crane.
8. Inner Arm Height:
   • The height of the inner arm is 1 foot and 3 9/16 inches. This dimension contributes to the overall profile of the crane and its ability to operate within confined spaces.
9. Coating & Painting:
   • The crane is finished with spray-yellow paint. This coating provides visibility, which enhances safety by making the crane easily noticeable in the work environment. Additionally, the paint protects the crane from corrosion and wear, extending its service life.

Application:

• This articulating jib crane is ideal for indoor use in environments where precise, light to moderate-duty lifting and positioning are required. The ceiling-mounted design saves floor space and allows for efficient use of the work area. The articulated arms offer flexibility, making it suitable for tasks that require reaching around obstacles or into confined spaces.

Summary:

The 400M-12-500 model articulating jib crane is a versatile and reliable solution for indoor material handling needs. Its robust design, combined with detailed specifications, ensures safe and efficient operation for a variety of lifting tasks. The yellow paint finish not only enhances safety but also provides durable protection against environmental factors.
