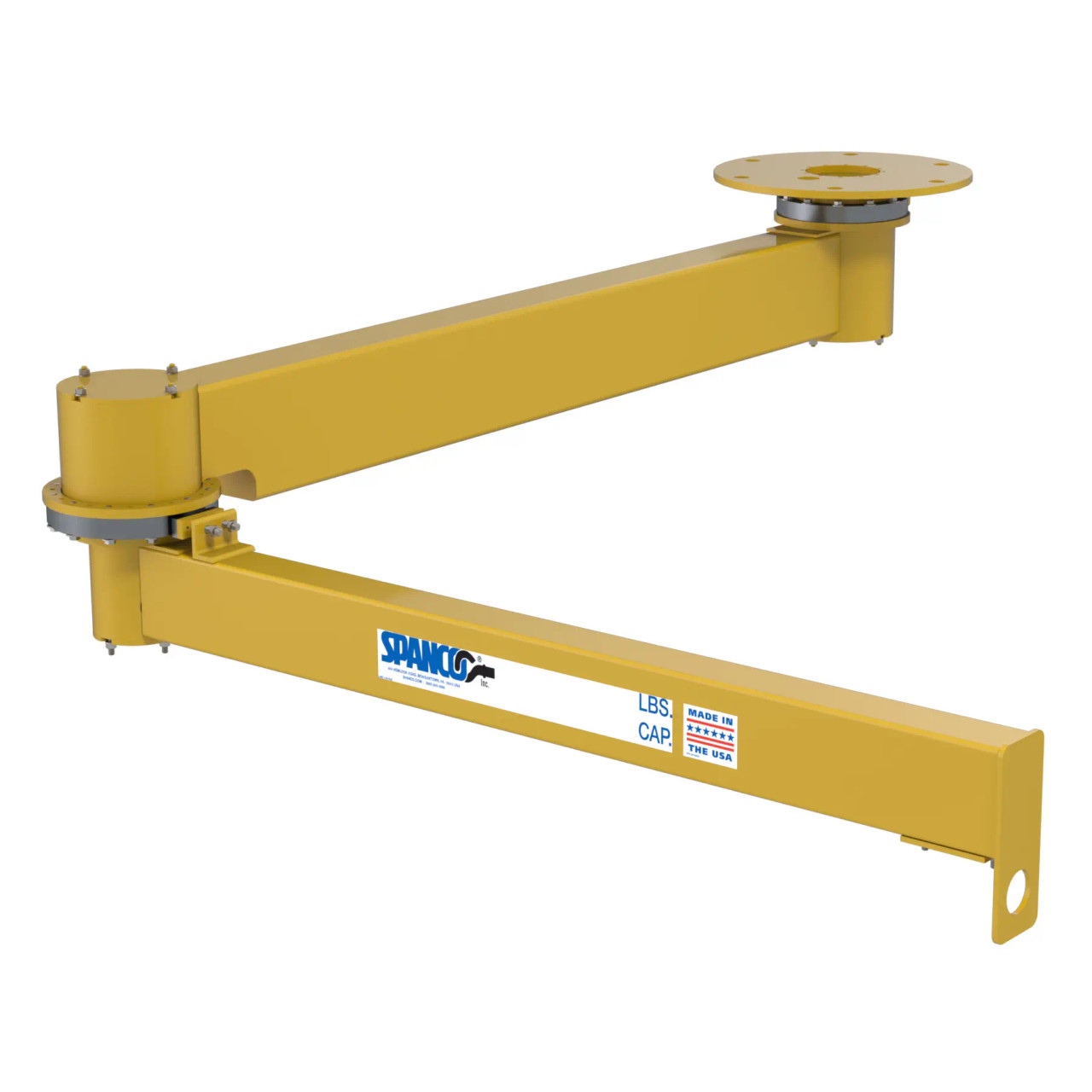

ARTICULATING JIB, CEILING MOUNTED 500 LBS (INDOOR), Capacity: 500 lbs, Span: 16'-0'', Inner Arm Length: 8'-6, Outer Arm Length: 7' - 6'', 400M-16-500

Product Overview

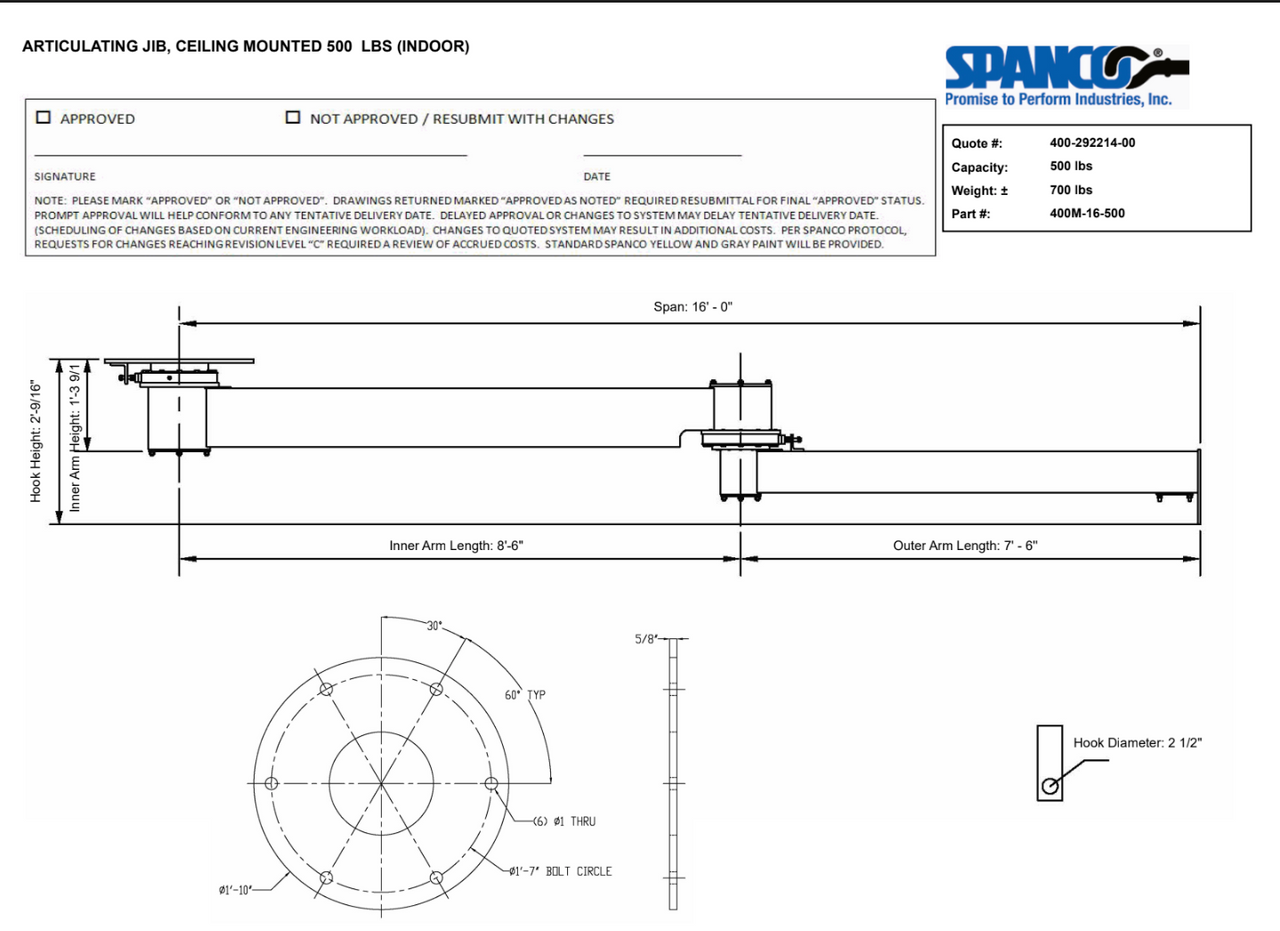

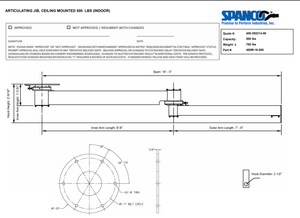

400M-16-500

ARTICULATING JIB, CEILING MOUNTED 1000 LBS (INDOOR)

Capacity: 500 lbs

Span: 16' - 0''

Inner Arm Length: 8'-6"

Outer Arm Length: 7' - 6''

Hook Diameter: 2 1/2"

Bearing Width: 5 5/16"

Hook Height: 2'-9/16"

Inner Arm Height: 1'-3 9/16"

Coating & Painting: PAINT, SPRAY YELLOW

Key Features:

• Articulating Mechanism: The crane's articulating feature allows for flexible and efficient material handling within its specified span and arm lengths. The articulating arm design enables the crane to reach around obstacles and into tight spaces, providing greater flexibility compared to standard jib cranes.
• Load Capacity: With a maximum load capacity of 500 lbs, this crane is suitable for a variety of light to medium-duty lifting tasks, making it ideal for assembly lines, manufacturing processes, and maintenance operations.
• Span and Arm Lengths:
  • Span: The crane has a span of 16' - 0'', offering a broad coverage area for lifting operations.
  • Inner Arm Length: The inner arm measures 8' - 6'' and provides substantial reach for maneuvering loads.
  • Outer Arm Length: The outer arm is 7' - 6'', adding to the crane's flexibility and range.
• Hook and Bearing Specifications:
  • Hook Diameter: The hook's diameter is 2 1/2", ensuring it can securely handle the specified load capacity.
  • Bearing Width: The bearing width is 5 5/16", contributing to the crane's stability and smooth operation.
  • Hook Height: The hook height is 2'-9/16", designed to accommodate various lifting needs.
• Inner Arm Height: The inner arm height is 1'-3 9/16", designed to maintain structural integrity while providing necessary clearance.
• Coating and Painting: The crane is coated with spray yellow paint, which enhances safety by making the equipment easily noticeable. This bright color helps prevent accidents and ensures the crane's visibility in a busy industrial environment.

Applications:

• Manufacturing: Ideal for lifting and moving parts in assembly lines and production areas.
• Maintenance: Suitable for maintenance tasks that require lifting and positioning of tools and equipment.
• Warehousing: This can be used to handle inventory and materials in storage areas.
• Workshops: Perfect for tasks that involve precise positioning of materials and equipment in a workshop setting.

Benefits:

• Increased Safety: The bright yellow paint improves visibility, reducing the risk of accidents.
• Enhanced Efficiency: The articulating design allows for more precise and flexible load handling, improving operational efficiency.
• Versatile Use: It is suitable for a wide range of indoor applications, making it a valuable addition to any industrial setup.

By incorporating these features, the Model 400M-16-500 articulating jib crane offers a practical and efficient solution for various lifting and material handling tasks, ensuring both safety and productivity in the workplace.
