ALR Titon Electric Chain Hoist – 1 Ton Capacity | 10-Foot Lift | Three-Phase

Product Overview

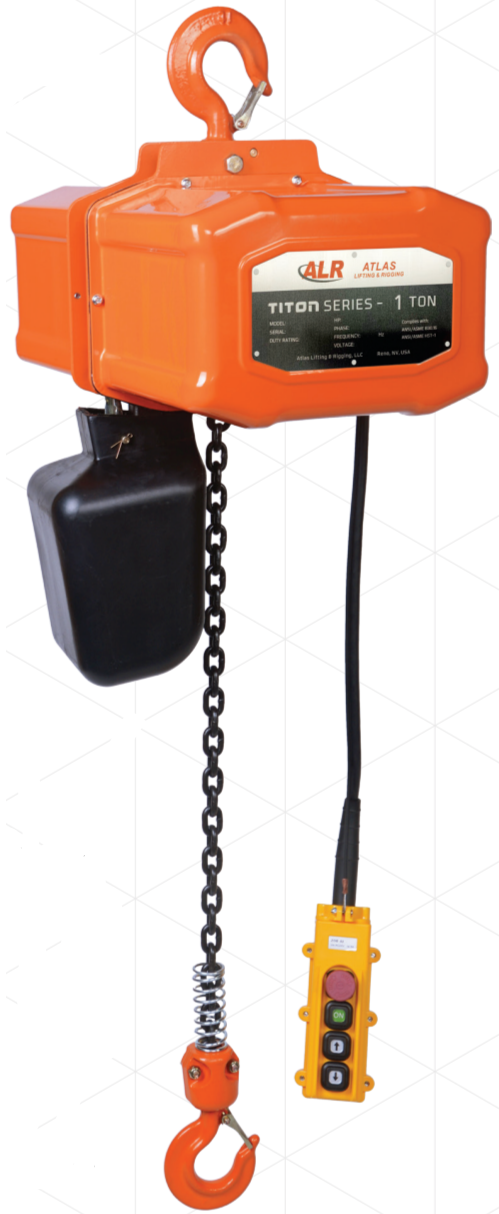

Atlas Titon Electric Chain Hoist – TEH-3-010-10

1 Ton Capacity | 10-Foot Lift | Three-Phase | Single Speed

The Atlas TEH-3-010-10 Titon Electric Chain Hoist is designed for efficient and reliable lifting in a wide range of industrial settings. Hoist has a 1-ton (2,200 lbs) load capacity and a standard 10-foot lift height, this hoist is built to handle moderate material handling tasks with consistent performance. Its robust construction, three-phase power, and advanced safety features make it suitable for manufacturing, maintenance, and warehouse operations.

Features

• 1 Ton Rated Capacity: Handles up to 2,200 lbs, making it ideal for safely lifting heavier equipment and materials.
• 10-Foot Lift Height: Standard vertical reach for most overhead lifting requirements.
• Industrial Load Chain: Grade 80 alloy steel chain with black oxide coating for strong corrosion resistance.
• Three-Phase Motor: Provides smooth and efficient operation, built for continuous or repetitive use.
• Electromagnetic Load Brake: Engages automatically to securely hold the load during operation or in the event of a power failure.
• 24V Pendant Control: Low-voltage push-button pendant enhances safety and user control.
• Forged Suspension Hook: Heavy-duty top hook allows for secure attachment to beam clamps or trolley systems.
• IP54-Rated Housing: Offers protection against dust and moisture, ensuring reliable performance in industrial environments.

Specifications

• Model: TEH-3-010-10
• Rated Capacity: 1 Ton (2,200 lbs)
• Lift Height: 10 feet
• Lifting Speed: Approx. 13–16 FPM (varies slightly by configuration)
• Load Chain: Grade 80 alloy steel, black oxide coated
• Brake System: Electromagnetic
• Motor Protection: Thermal overload protection
• Pendant Control: 24V low-voltage, push-button pendant
• Suspension: Top hook mount
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent duty)
• Power Supply: Three-phase (specify voltage at time of order)
• Approximate Weight: 110–130 lbs
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-3-010-10 is a dependable, industry-grade hoist engineered to deliver strength, safety, and durability for day-to-day lifting tasks in professional environments.
