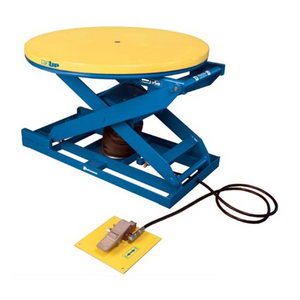

Bishamon EZU-15-R Series EZ-UP Lift Table, 1,700 lb, 43 in Round

Write a Review
$4,830.00
SKU: EZU-15-R
Condition: New
Weight: 538.00 LBS
Width: 44.00 (in)
Height: 15.00 (in)
Depth: 48.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Adding to cart… The item has been added
Bishamon EZU-15-R Series EZ-UP Lift Table, 1,700 lb, 43 in Round

Bishamon EZU-15-R Series EZ-UP Lift Table, 1,700 lb, 43 in Round

$4,830.00

The Bishamon EZ UP ® EZU-15-R Pneumatic Lift Table is a powerful, air-operated lifting solution designed for ergonomic material handling in environments where electricity is not available or preferred. With a 1,700 lb capacity, this lift table is ideal for clean rooms, food processing facilities, paint booths, and other sensitive applications requiring safe, reliable, and contamination-free operation.

Powered entirely by shop air, the EZU-15-R eliminates the need for electrical or hydraulic components, making it a low-maintenance and environmentally friendly solution. Its Firestone Airstroke actuator delivers smooth, controlled lifting and lowering, ensuring consistent performance even in demanding industrial settings.

One of the standout features of this model is its integrated rotating platform, which allows operators to easily spin loads for full 360 ° access. This reduces the need for walking, reaching, or repositioning materials manually €”significantly improving workflow efficiency while minimizing operator fatigue and the risk of injury.

Constructed from high-quality structural steel, the EZU-15-R is built for durability and long-term use. The entrapped scissor roller design enhances stability throughout the lift cycle, keeping loads balanced and secure. A three-position hand lever control allows precise adjustment of platform height, giving operators full control over load positioning.

For added safety, the unit includes hinged maintenance bars and a powder-coated finish that protects against corrosion, wear, and harsh working conditions. The rotating platform is supported by a ball-bearing center pivot, ensuring smooth and reliable movement during operation.

Whether used as a pallet positioner or a workstation lift, the Bishamon EZ UP ® EZU-15-R delivers exceptional ergonomic benefits, improves productivity, and supports safer material handling practices in specialized environments.

Specifications
Model: EZU-15-R
Capacity: 1,700 lbs (770 kg)
Type: Pneumatic (air-powered) lift table with rotating platform
Operation: Shop air powered (no electrical or hydraulic components)
Lift Mechanism: Firestone Airstroke actuator
Platform Feature: Rotating platform with ball-bearing center pivot
Control: Three-position hand lever for lift and lowering
Construction: Heavy-duty structural steel frame
Stability: Entrapped scissor rollers for smooth, stable operation
Safety Features: Hinged maintenance bars
Finish: Durable powder-coated finish for corrosion resistance
Applications: Clean rooms, food processing, paint stations, pallet positioning, assembly, material handling

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
