Bishamon EZ Up Stainless Steel W/Hand Valve

Write a Review
$9,240.00
$8,085.00
(You save $1,155.00 )
SKU: EZU-15-R-SS
Condition: New
Weight: 525.00 LBS
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Adding to cart… The item has been added
Bishamon EZ Up Stainless Steel W/Hand Valve

Bishamon EZ Up Stainless Steel W/Hand Valve

$9,240.00
$8,085.00
(You save $1,155.00 )

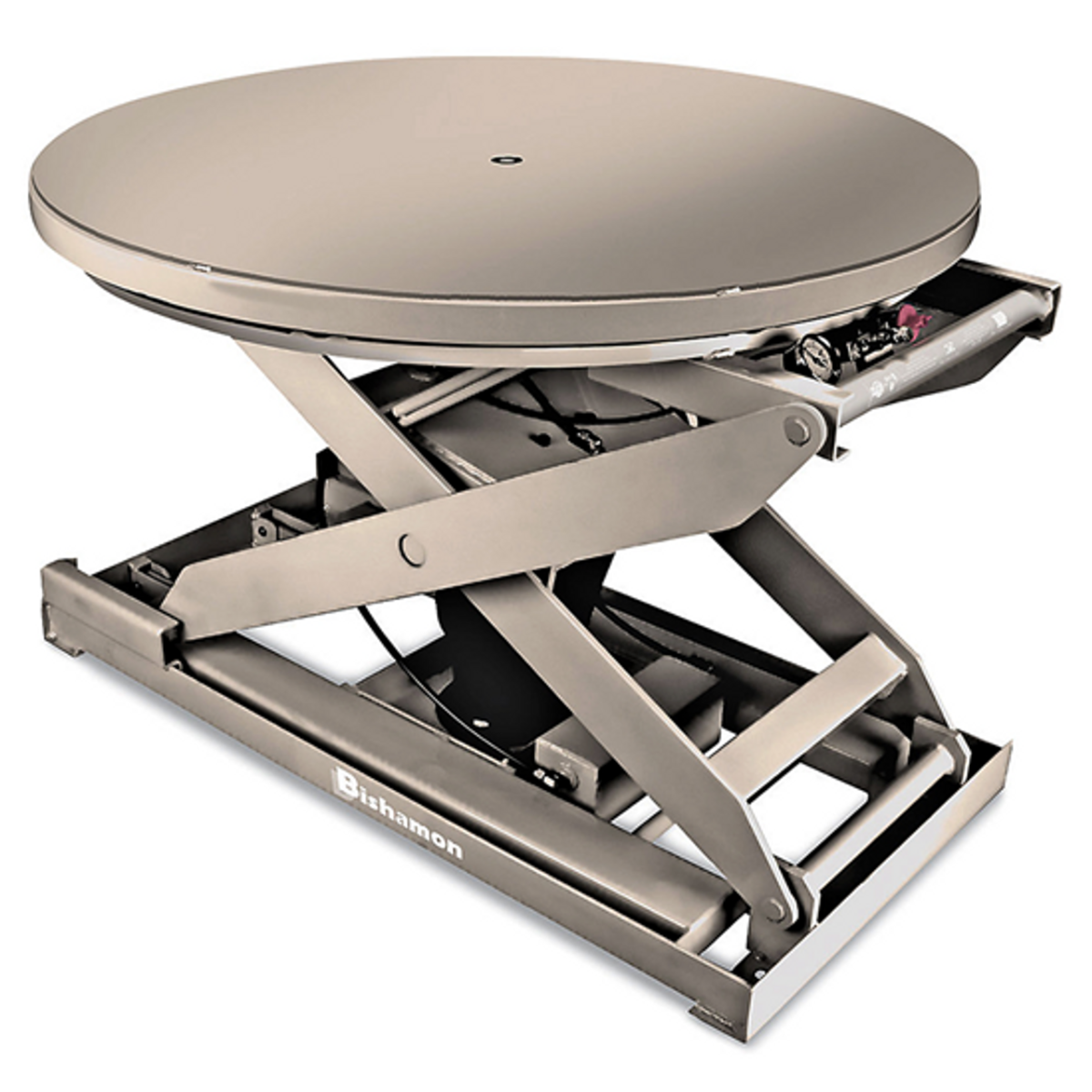

The Bishamon EZ UP ® EZU-15R-SS Pneumatic Lift Table is a premium stainless steel, air-powered lift solution engineered for sanitary environments and ergonomic material handling. With a 1,700 lb capacity and an integrated rotating platform, this model is ideal for food processing, pharmaceutical manufacturing, cleanrooms, and washdown applications where cleanliness, durability, and efficiency are essential.

Powered entirely by shop air, the EZU-15R-SS operates without electrical or hydraulic components, making it a low-maintenance and contamination-free solution for sensitive environments. Its Firestone Airstroke actuator provides smooth, controlled lifting and lowering, ensuring consistent performance in demanding industrial conditions.

The rotating platform with a ball-bearing center pivot allows for easy 360 ° access to loads, eliminating the need for operators to walk around the table. This significantly improves workflow efficiency while reducing operator fatigue and the risk of repetitive strain injuries. It also makes the unit highly effective as a pallet positioner, improving productivity during loading and unloading tasks.

Constructed from corrosion-resistant stainless steel, the EZU-15R-SS is designed to withstand moisture, chemicals, and frequent washdowns. The entrapped scissor roller system enhances stability throughout the lift cycle, ensuring loads remain balanced and secure. A three-position hand lever control allows precise adjustment of platform height for optimal load positioning.

For added safety, the unit includes hinged maintenance bars to secure the platform during servicing. Its smooth, easy-to-clean surfaces support strict hygiene standards while minimizing maintenance time.

Whether you're optimizing production workflows or ensuring compliance in sanitary environments, the Bishamon EZ UP ® EZU-15R-SS delivers reliable, ergonomic, and efficient lifting performance tailored for specialized applications.

Specifications
Model: EZU-15R-SS
Capacity: 1,700 lbs (770 kg)
Type: Stainless steel pneumatic lift table with rotating platform
Operation: Air-powered (no electrical or hydraulic components)
Lift Mechanism: Firestone Airstroke actuator
Platform Feature: Rotating platform with ball-bearing center pivot
Control: Three-position hand lever for lift and lowering
Construction: Corrosion-resistant stainless steel frame
Stability: Entrapped scissor rollers for smooth, stable operation
Safety Features: Hinged maintenance bars
Finish: Stainless steel for washdown and corrosion resistance
Applications: Food processing, pharmaceuticals, cleanrooms, pallet positioning, assembly, material handling

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
