Pneumatic Scissor Lift Tables EZ UP ® EZU Series EZU-15, EZU-15-R, EZU-15-R-SS

Write a Review
$4,000.00
$3,500.00
(You save $500.00 )
SKU: EZU-15
Condition: New
Weight: 500.00 LBS
Width: 44.00 (in)
Height: 15.00 (in)
Depth: 48.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Pneumatic Scissor Lift Tables   EZ UP  ® EZU Series EZU-15, EZU-15-R, EZU-15-R-SS

Pneumatic Scissor Lift Tables EZ UP ® EZU Series EZU-15, EZU-15-R, EZU-15-R-SS

$4,000.00
$3,500.00
(You save $500.00 )

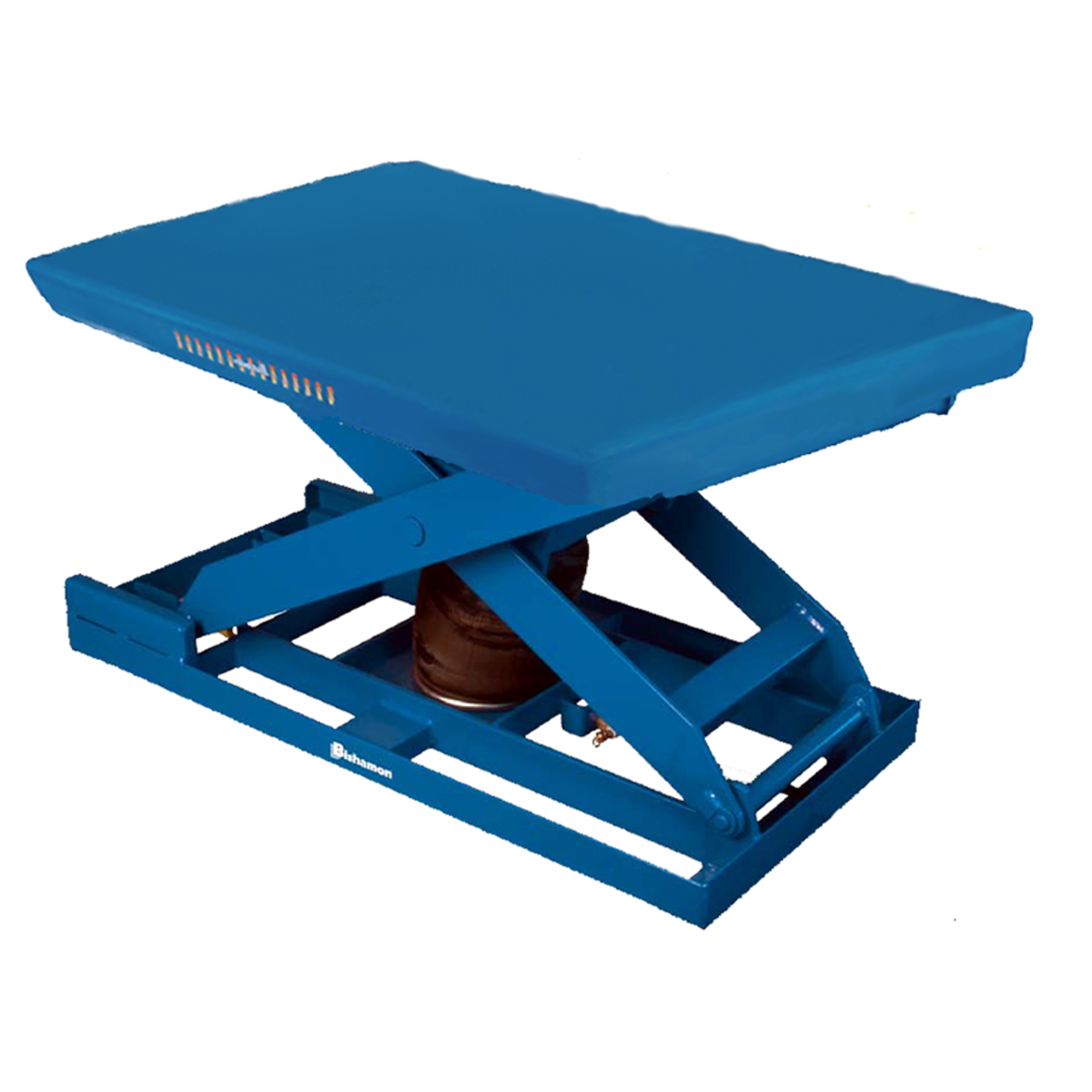

The Bishamon EZ UP ® EZU-15 Pneumatic Lift Table is a reliable, air-powered solution engineered for safe, efficient, and ergonomic lifting in environments where electricity is not available or preferred. With a 1,700 lb capacity, this lift table is ideal for clean rooms, food processing facilities, paint stations, and other applications requiring contamination-free operation and consistent performance.

Powered entirely by shop air, the EZU-15 eliminates the need for electrical or hydraulic components, reducing maintenance requirements and making it a dependable choice for sensitive or regulated environments. Its Firestone Airstroke actuator ensures smooth and controlled lifting and lowering, delivering reliable performance even in demanding industrial conditions.

Designed with operator safety and comfort in mind, the EZU-15 allows users to position loads at an optimal working height, reducing bending, lifting, and repetitive strain. This ergonomic advantage helps improve productivity while minimizing the risk of workplace injuries and product damage during handling tasks.

Constructed from high-strength structural steel, the EZU-15 is built to withstand daily use in industrial settings. The entrapped scissor roller system enhances stability throughout the lift cycle, keeping loads balanced and secure. A three-position hand lever control provides precise and easy adjustment of platform height, allowing operators to position materials exactly where needed.

The unit features a durable powder-coated finish that protects against corrosion, wear, and harsh working conditions, ensuring long service life. For added safety, hinged maintenance bars are included to secure the platform during servicing.

While rotating platform models are available in the EZ UP ® series, the EZU-15 offers a fixed platform design for straightforward lifting applications where rotation is not required. Whether used for pallet handling, assembly work, or material staging, the Bishamon EZU-15 delivers dependable performance, low maintenance, and ergonomic efficiency.

Specifications
Model: EZU-15
Capacity: 1,700 lbs (770 kg)
Type: Pneumatic (air-powered) lift table
Operation: Shop air powered (no electrical or hydraulic components)
Lift Mechanism: Firestone Airstroke actuator
Platform: Fixed steel platform
Control: Three-position hand lever for lift and lowering
Construction: Heavy-duty structural steel frame
Stability: Entrapped scissor rollers for smooth, stable operation
Safety Features: Hinged maintenance bars
Finish: Durable powder-coated finish for corrosion resistance
Applications: Clean rooms, food processing, paint stations, assembly, pallet handling, material positioning

WARRANTY STATEMENT (U.S.A. and Canada) APPLICABILITY This Warranty Statement applies only to Bishamon Industries Corporation (“Bishamon”) products that are purchased from Bishamon or a Bishamon authorized dealer and used within the U.S.A. and Canada. ALLOCATION OF RISKS This Warranty Statement constitutes an agreement that allocates the risks of product failure between Bishamon and the purchaser (as hereafter defined). This allocation is recognized by both parties and is reflected in the price of the products. The purchaser or any user acknowledges that it has read this agreement, understands it, and is bound by its terms. WARRANTY Bishamon warrants its products to be free from defects in material and workmanship for a period of five (5) years for parts and two (2) years for labor; provided, however, that the warranty period for the UniLift and Lift Pilot shall be one (1) year for both parts and labor. Notwithstanding the foregoing, this warranty does not cover batteries and normal wear and tear items including without limitation, bushings and seals. The warranty period commences as of the date of delivery of the product to the purchaser. This warranty applies only to the original purchaser who purchases the product from Bishamon (including Bishamon authorized dealers) or from a Bishamon authorized dealer (the “purchaser”) and it is not transferable to any subsequent buyer or user. This warranty applies only to original equipment manufactured by Bishamon. This warranty shall not apply to: (a) defects caused by failure to provide a suitable installation environment for the product; (b) damage caused by use of the product for purposes other than those for which it was designed; (c) damage caused by disasters such as fire, flood, wind, and lightning; (d) damage caused by unauthorized attachments or modifications; (e) damage during shipment; or (f) any other abuse, misuse, accident, alteration, or unauthorized repair of any Bishamon product or part by the purchaser or any user. Bishamon must receive written notice of any defect within the warranty period. Upon Bishamon’s timely receipt of a notice of a warranty claim, Bishamon will, at its election: (a) replace the defective unit; or (b) repair the product at Bishamon’s facilities or through an authorized repair representative selected and authorized by Bishamon to perform warranty work. This warranty does not cover any repair work not authorized by Bishamon, including, but not limited to repair work arranged by or performed by the purchaser or any user. Any replacement product or parts installed during the warranty period are covered by this warranty for the balance of the original warranty period. Any replaced product or parts becomes Bishamon’s property. If warranty service requires shipment to Bishamon or its authorized repair representative, then Bishamon will arrange pick-up and shipping for the defective product which is covered by this Warranty Statement. Bishamon will provide the purchaser with packing instructions for product shipments. The purchaser must use reasonable care to package the return product for shipping in accordance with Bishamon’s packing instructions. Bishamon shall not be responsible for negligent or inappropriate packing of returned products. In addition to the warranty stated above, if a product is custom built by Bishamon to specifications provided by the purchaser, then Bishamon warrants that the custom-built product will meet the purchaser’s specifications. The purchaser must inspect custom built products immediately. All claims of nonconformity must be stated in writing and delivered to Bishamon within ten (10) days of the date of delivery. To the extent allowed by local law, the remedies provided in this Warranty Statement are the sole and exclusive remedies of the purchaser or any user. Except as specifically stated herein, there are no other warranties for Bishamon products or parts, express or implied, including the warranties of merchantability and fitness for a particular purpose, all of which are hereby excluded. This Warranty Statement gives the purchaser specific legal rights. The purchaser or any user may also have other rights, which vary from state to state in the U.S.A. and from country to country elsewhere in the world. DISCLAIMER OF WARRANTY THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. LIMITATION OF REMEDIES IN NO EVENT WILL BISHAMON BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL THEORY. DAMAGES THAT BISHAMON WILL NOT BE RESPONSIBLE FOR INCLUDE BUT ARE NOT LIMITED TO: LOSS OF PROFITS; LOSS OF SAVINGS OR REVENUE; LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT; COST OF CAPITAL; COST OF ANY SUBSTITUTE EQUIPMENT, FACILITIES, OR SERVICES; DOWNTIME; THE CLAIMS OF THIRD PARTIES, INCLUDING CUSTOMERS; AND INJURY TO PROPERTY, AND WHETHER ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Bishamon makes no warranty with respect to the compliance of any of its products with any applicable federal, state or local safety or product standard codes. Any noncompliance with such safety or product standard codes shall not be a defect either of material or workmanship pursuant to this warranty. Bishamon shall have no liability for any damages or costs of any kind incurred by the purchaser or any user due to such noncompliance. NO OTHER WARRANTIES. Unless modified in a writing signed by both parties, this Warranty Statement is understood to be the complete and exclusive agreement between the parties, superseding all oral or written prior agreements and all other communications between the parties relating to this Warranty Statement, including, but not limited to statements made by salespersons. No employee of Bishamon or any other party is authorized to make any warranty in addition to those made in this Warranty Statement. The provision of this Warranty Statement may only be altered or modified in writing and only if signed by an officer of Bishamon. Any provision contained herein which is deemed to be invalid or unenforceable shall be ineffective to the extent of such prohibition without invalidating the remaining provisions herein or effecting their validity or enforceability. TIME LIMIT FOR BRINGING SUIT. Any action for breach of warranty must be commenced within fifteen (15) months following delivery of the Product
