Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 115V Hand Control
Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 115V Hand Control

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 115V Hand Control

Write a Review
$7,098.00 - $8,557.50
SKU: L66K-TT4848-115-H
Condition: New
Weight: 1,270.00 LBS
Width: 48.00 (in)
Height: 20.00 (in)
Depth: 60.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 115V Hand Control

Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 115V Hand Control

$7,098.00 - $8,557.50

Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 115V Hand Control

$7,098.00 - $8,557.50
Description

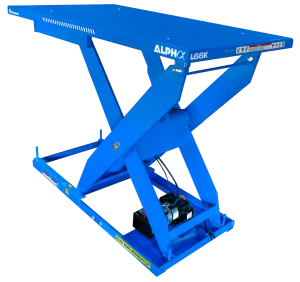

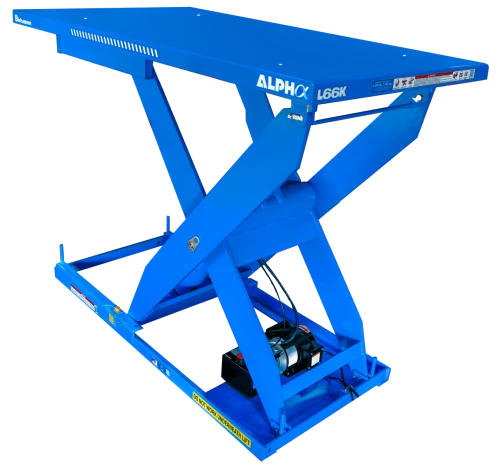

ALPHA Electric-Hydraulic Lift Tables - L66K-TT4848

The L66K-TT4848 Alpha Electric-Hydraulic Lift Table with Turntable is a heavy-duty ergonomic lifting solution engineered to improve productivity, enhance operator safety, and streamline material handling processes in industrial environments. Designed as part of the next-generation Alpha Series, this model features a spacious 48" x 48" rotating turntable platform combined with a powerful electric-hydraulic lifting system, making it ideal for handling large, bulky, or heavy loads with ease.

With an impressive 6,600 lb lifting capacity, the L66K-TT4848 is built for demanding applications in manufacturing plants, warehouses, assembly lines, and logistics centers. The integrated turntable provides smooth 360-degree rotation, allowing operators to access all sides of a load without repositioning it manually. This reduces unnecessary lifting, bending, and reaching —helping minimize workplace injuries while increasing operational efficiency.

The electric-hydraulic scissor lift system delivers smooth, controlled lifting and lowering, ensuring precise load positioning during repetitive or high-volume tasks. A reinforced scissor structure maintains stability even under maximum load conditions, while integrated flow-limiting valves prevent sudden drops and provide safe, controlled descent for added protection.

Built for durability, this lift table features a rugged steel frame and reinforced scissor arms designed to withstand harsh industrial environments. Premium high-load ball bearings and continuous axle rollers ensure smooth operation and support up to 35,000 cycles per year, making it a reliable choice for high-demand operations.

The unit includes a compact, integrated hydraulic power unit and reservoir, maximizing efficiency while minimizing space requirements. Its plug-and-play control system is intuitive and user-friendly, allowing for quick installation and easy operation across various applications.

Maintenance is simplified with self-lubricating, maintenance-free bushings, reducing downtime and eliminating routine lubrication. A built-in maintenance safety pin ensures safe servicing. The lift table complies with ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring the highest level of safety and compliance.

Backed by a 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT4848 Alpha Lift Table with Turntable is a long-term, high-performance solution for industrial material handling.

Specifications

  • Model / SKU: L66K-TT4848
  • Series: Alpha Electric-Hydraulic Lift Tables
  • Lifting Capacity: 6,600 lbs
  • Lift Mechanism: Electric-hydraulic scissor lift system
  • Platform Size: 48" x 48" turntable platform
  • Turntable Function: 360 ° rotation for full load accessibility
  • Operation: Powered lifting with manual or assisted rotation
  • Bearings: High-load ball bearings for smooth, consistent performance
  • Rollers: Continuous axle rollers for durability and stability
  • Safety Features: Flow-limiting valve; maintenance safety pin
  • Power Unit: Compact, integrated hydraulic power unit and reservoir
  • Controls: Plug-and-play, user-friendly interface
  • Construction: Heavy-duty steel frame with reinforced scissor design
  • Bushings: Self-lubricating, maintenance-free
  • Cycle Rating: Up to 35,000 cycles per year
  • Compliance: ANSI MH29.1:2020; UL/CSA certified components
  • Applications: Manufacturing, warehousing, assembly, packaging, and inspection
  • Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT4848 Lift Table with Turntable provides the perfect combination of high-capacity lifting, ergonomic efficiency, and industrial durability, making it an essential asset for modern material handling operations.

Warranty Information
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
