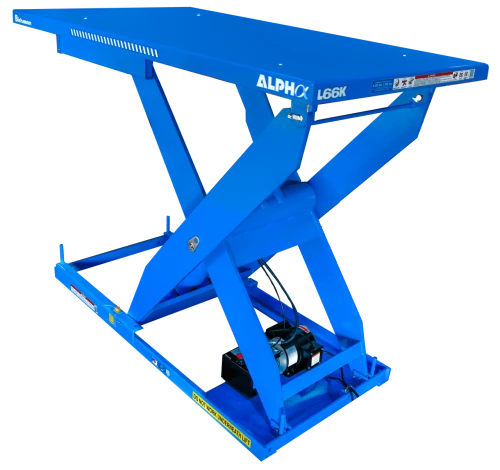

ALPHA Electric-Hydraulic Lift Tables - L66K-TT

The L66K-TT Alpha Electric-Hydraulic Lift Table with Turntable is a high-capacity, heavy-duty lifting solution engineered to deliver superior ergonomic performance, safety, and efficiency in demanding industrial environments. As part of the next-generation Alpha Series, this lift table integrates powerful electric-hydraulic lifting with a precision rotating turntable, enabling operators to handle, position, and access heavy loads with maximum control and minimal physical strain.

With an impressive 6,600 lb lifting capacity, the L66K-TT is designed for manufacturing facilities, warehouses, assembly lines, and distribution centers that require reliable handling of large and heavy materials. The integrated turntable provides smooth 360-degree rotation, allowing operators to access all sides of a load from a single position —eliminating unnecessary movement and significantly improving workflow efficiency.

The electric-hydraulic scissor lift system ensures smooth, controlled lifting and lowering, delivering precise positioning and stable load handling. Equipped with flow-limiting valves, the system prevents sudden drops and ensures safe, controlled descent —enhancing operator safety and protecting valuable materials.

Built for durability, the L66K-TT features a reinforced steel frame and heavy-duty scissor arms designed for continuous use in high-cycle environments. Premium high-load ball bearings and continuous axle rollers provide smooth operation and support up to 35,000 cycles per year, making it ideal for demanding production schedules.

The lift table includes a compact, integrated hydraulic power unit and reservoir, optimizing performance while minimizing space requirements. Its plug-and-play control system is intuitive and user-friendly, allowing for quick integration into existing workflows and increased productivity.

Maintenance is simplified with self-lubricating, maintenance-free bushings, reducing wear and eliminating routine lubrication. The unit is compliant with ANSI MH29.1:2020 safety standards, and all electrical components are UL and CSA certified, ensuring top-tier safety and reliability.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT Alpha Lift Table with Turntable delivers long-lasting performance and peace of mind for heavy-duty material handling operations.

Specifications

• Model / SKU: L66K-TT
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Type: Integrated rotating turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent, reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly lines, packaging and inspection stations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT Lift Table with Turntable is the ideal choice for businesses seeking maximum lifting capacity, advanced ergonomic functionality, and reliable long-term performance in heavy-duty material handling applications.
