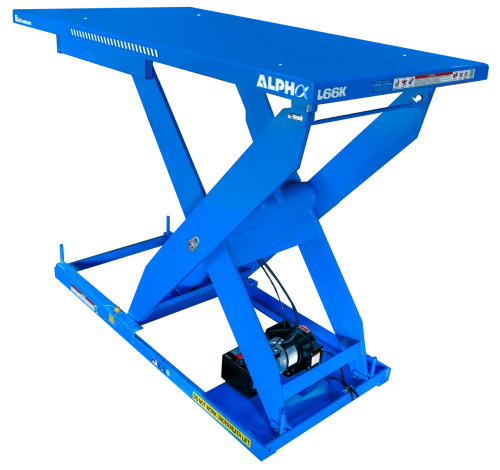

ALPHA Electric-Hydraulic Lift Tables - L66K-TT-480

The L66K-TT-480 Alpha Electric-Hydraulic Lift Table with Turntable is a high-capacity, industrial-grade solution engineered to deliver superior lifting performance, ergonomic efficiency, and long-term durability. Designed for demanding applications, this Alpha Series lift table combines powerful 480V electric-hydraulic lifting with a precision rotating turntable, allowing operators to safely and efficiently position heavy loads with minimal effort.

Built for manufacturing facilities, warehouses, assembly lines, and distribution centers, this lift table significantly reduces manual lifting, bending, and repositioning. With a heavy-duty 6,600 lb lifting capacity, the L66K-TT-480 is ideal for handling large components, pallets, and equipment while maintaining smooth, stable operation.

The integrated turntable provides full 360-degree rotation, enabling operators to access all sides of a load from a single position. This feature improves productivity, reduces handling time, and minimizes operator fatigue —making it especially valuable in repetitive or high-volume workflows. The 480V electric-hydraulic system is designed for continuous, high-cycle use, delivering precise lifting and lowering with consistent control.

Safety is a core feature of the design. Flow-limiting valves prevent sudden drops and ensure controlled descent, protecting both personnel and materials. A built-in maintenance safety pin provides secure servicing and inspection, helping maintain safe operating conditions.

Constructed with a reinforced steel frame and heavy-duty scissor arms, the L66K-TT-480 is built to withstand rigorous industrial use. Premium high-load ball bearings and continuous axle rollers ensure smooth, reliable operation and support up to 35,000 cycles per year, making it ideal for demanding production environments.

The lift table features a compact, integrated hydraulic power unit and reservoir, optimizing performance while minimizing footprint. Its plug-and-play control system offers intuitive operation, allowing quick installation and seamless integration into existing systems.

Maintenance requirements are minimal thanks to self-lubricating, maintenance-free bushings, which reduce wear and eliminate routine servicing. The unit complies with ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring top-tier safety and reliability.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT-480 Alpha Lift Table with Turntable delivers dependable, long-lasting performance.

Specifications

• Model / SKU: L66K-TT-480
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Power Supply: 480V industrial electric power
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Type: Integrated rotating turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent, reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly lines, packaging and inspection stations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT-480 Lift Table with Turntable is the ideal choice for businesses seeking maximum lifting power, enhanced ergonomics, and reliable performance in high-demand industrial material handling operations.
