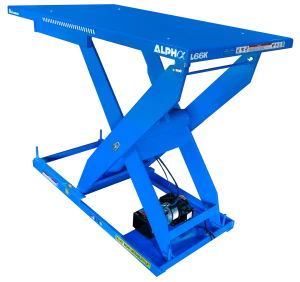

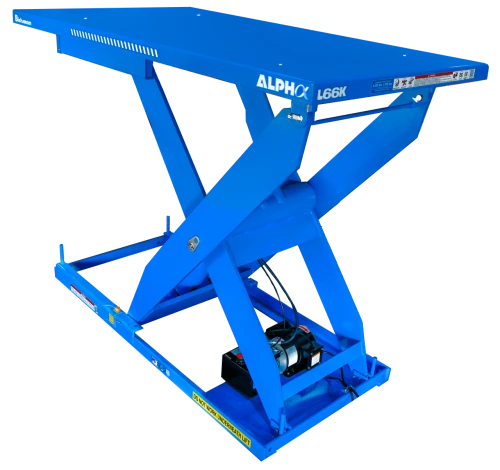

ALPHA Electric-Hydraulic Lift Tables - L66K-TT4444-480

The L66K-TT4444-480 Alpha Electric-Hydraulic Lift Table with Turntable is a high-capacity, industrial-grade lifting solution engineered to deliver superior performance, enhanced safety, and optimized ergonomics in demanding material handling environments. As part of the advanced Alpha Series, this lift table integrates powerful 480V electric-hydraulic lifting with a 44" x 44" rotating turntable platform, allowing operators to efficiently handle and position heavy loads with precision and ease.

Designed for manufacturing facilities, warehouses, assembly lines, and distribution centers, this lift table helps eliminate manual lifting, bending, and repositioning. With a heavy-duty 6,600 lb lifting capacity, the L66K-TT4444-480 is ideal for applications that require reliable performance under high loads. The integrated turntable provides smooth 360-degree rotation, enabling full access to all sides of a load without operator repositioning —improving workflow efficiency and reducing fatigue.

The 480V electric-hydraulic system is built for continuous, high-cycle operation, delivering smooth and controlled lifting and lowering for precise load positioning. The reinforced scissor lift mechanism ensures stable, balanced performance under load, while integrated flow-limiting valves prevent sudden drops and ensure controlled descent, enhancing operational safety.

Constructed with a heavy-duty steel frame and reinforced scissor arms, this lift table is engineered for long-term durability in rigorous industrial environments. Premium high-load ball bearings and continuous axle rollers ensure smooth, consistent movement and support up to 35,000 cycles per year, making it ideal for demanding production workflows.

The unit features a compact, integrated hydraulic power unit and reservoir, maximizing performance while minimizing space requirements. Its plug-and-play control system is intuitive and user-friendly, allowing for quick installation and seamless integration into existing operations.

Maintenance is minimal thanks to self-lubricating, maintenance-free bushings, which reduce wear and eliminate routine servicing. A built-in maintenance safety pin ensures safe inspections and servicing. The lift table meets ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring top-tier safety and compliance.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT4444-480 Alpha Lift Table with Turntable delivers dependable, long-term performance.

Specifications

• Model / SKU: L66K-TT4444-480
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Power Supply: 480V industrial electric power
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Size: 44" x 44" turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent, reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly, packaging, and inspection operations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT4444-480 Lift Table with Turntable is the ideal choice for businesses seeking maximum lifting capacity, enhanced ergonomics, and reliable performance in high-demand industrial material handling applications.
