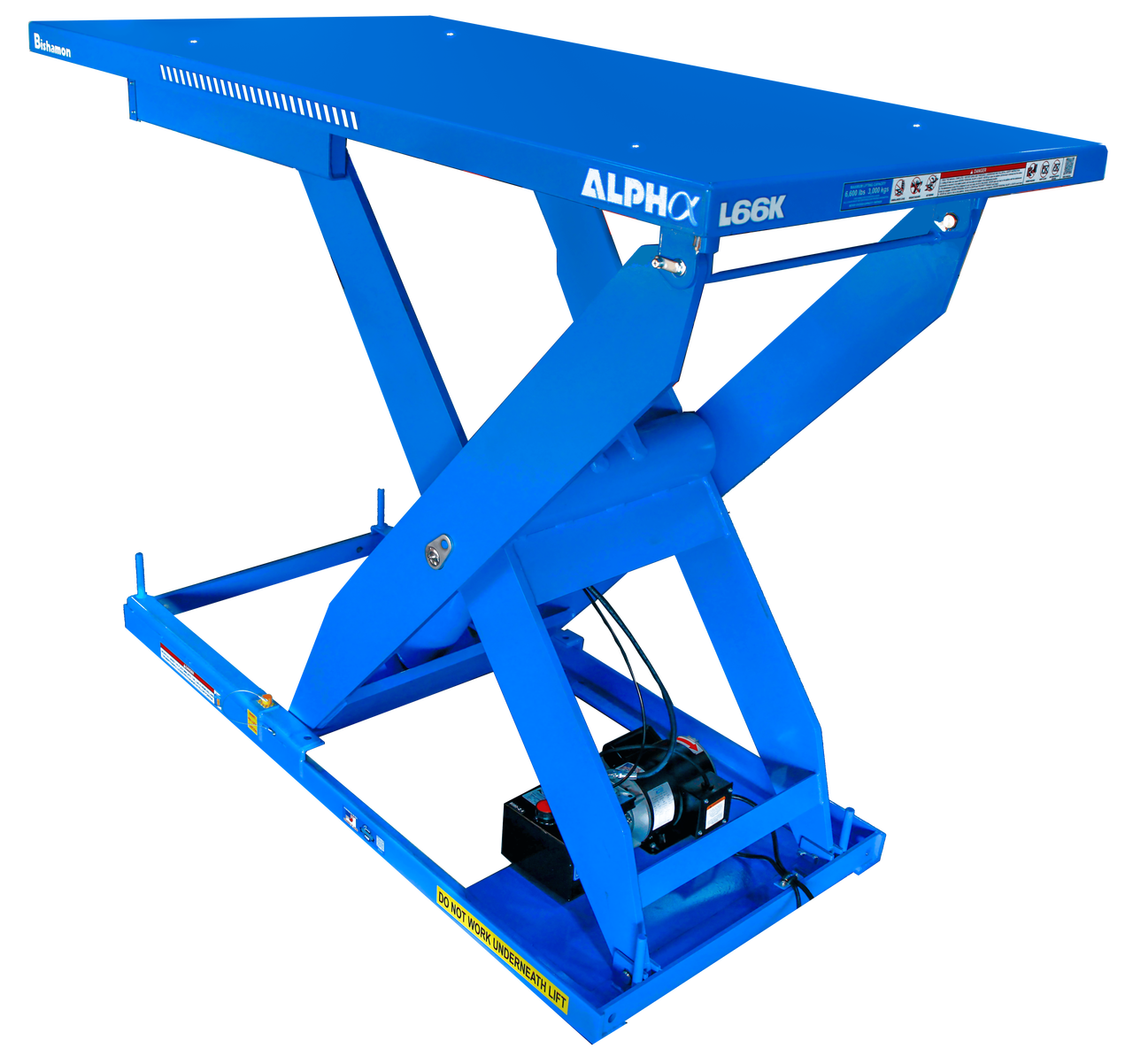

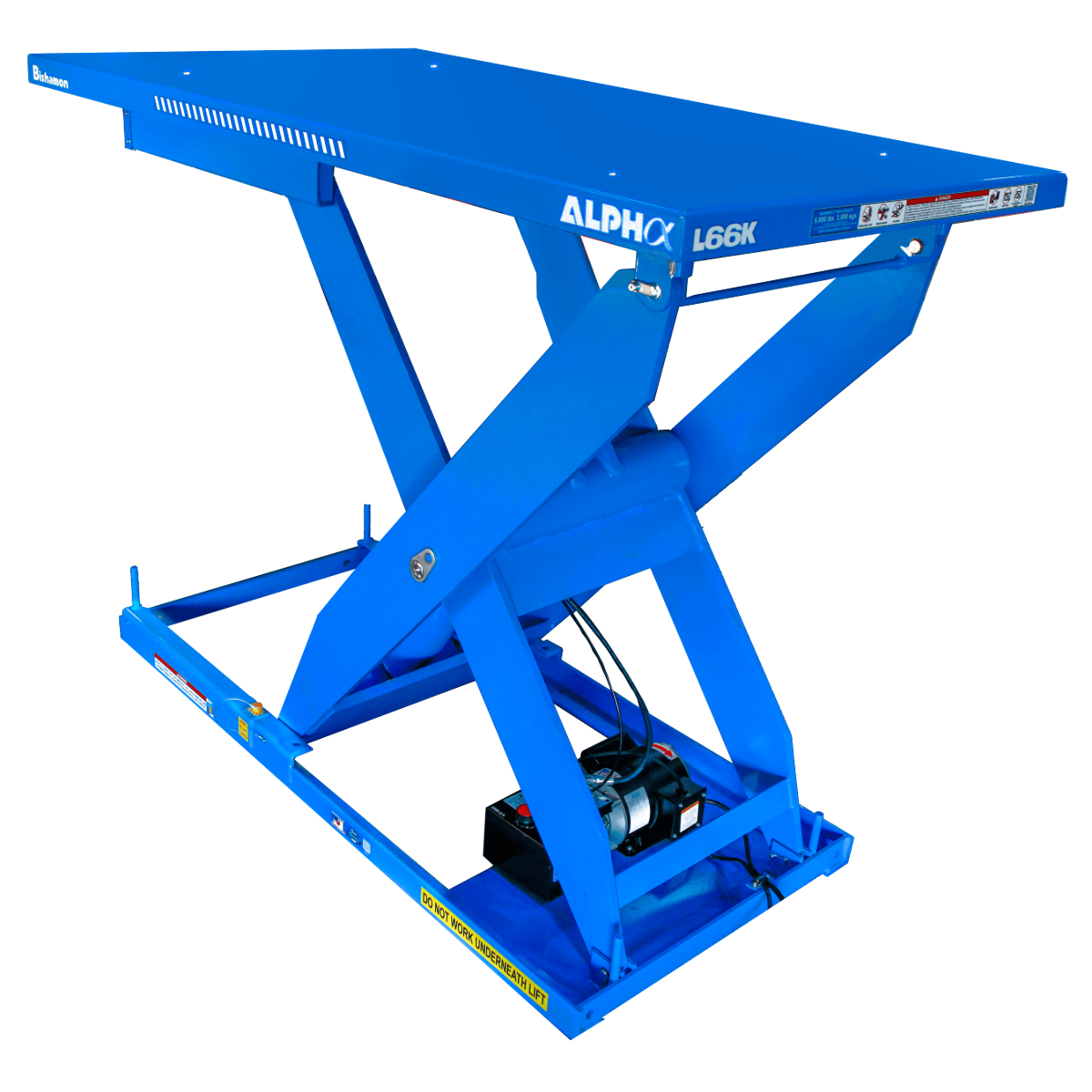

ALPHA Electric-Hydraulic Lift Tables - L66K-TT4444

The L66K-TT4444 Alpha Electric-Hydraulic Lift Table with Turntable is a high-capacity, precision-engineered lifting solution designed to improve safety, productivity, and ergonomic performance in demanding industrial environments. As part of the advanced Alpha Series, this lift table combines powerful electric-hydraulic lifting with a heavy-duty 44" x 44" rotating turntable platform, allowing operators to efficiently position and access loads from all angles.

With a robust 6,600 lb lifting capacity, the L66K-TT4444 is ideal for manufacturing facilities, warehouses, assembly lines, and packaging operations where heavy materials must be handled safely and efficiently. The integrated turntable enables smooth 360-degree rotation, eliminating the need for operators to manually reposition loads. This significantly reduces strain, improves workflow efficiency, and enhances overall productivity.

The electric-hydraulic scissor lift system provides smooth, controlled lifting and lowering, ensuring precise load positioning and stable performance under heavy loads. Built-in flow-limiting valves enhance safety by preventing sudden drops and maintaining controlled descent during operation. This ensures both operator protection and load stability.

Constructed with a reinforced steel frame and heavy-duty scissor arms, the L66K-TT4444 is engineered for durability in high-cycle industrial applications. Premium high-load ball bearings and continuous axle rollers ensure smooth operation and long-term reliability, supporting up to 35,000 cycles per year.

The unit features a compact, integrated hydraulic power unit and reservoir, optimizing space while delivering consistent hydraulic performance. Its plug-and-play control system is intuitive and user-friendly, allowing for easy operation and seamless integration into existing workflows.

Maintenance is minimized with self-lubricating, maintenance-free bushings, reducing wear and eliminating the need for routine lubrication. A built-in maintenance safety pin ensures secure servicing and inspection procedures. The lift table complies with ANSI MH29.1:2020 safety standards, and all electrical components are UL and CSA certified, providing peace of mind in critical applications.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT4444 Alpha Lift Table with Turntable delivers reliable, long-term performance for heavy-duty material handling operations.

Specifications

• Model / SKU: L66K-TT4444
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Size: 44" x 44" turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent, reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly, packaging, and inspection stations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT4444 Lift Table with Turntable is the perfect solution for businesses seeking high-capacity lifting, enhanced ergonomics, and dependable performance in demanding industrial material handling applications.
