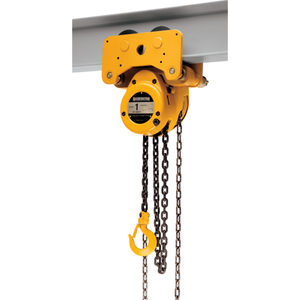

NTH Navy Trolley Hoist ' Lift-Capacity 1 Ton Manual Hoist with Push HARRINGTON

Product Overview

The NTH Navy Trolley Hoist is the ideal lifting solution designed to meet a variety of heavy-duty needs with remarkable efficiency. With a lift capacity of 1 Ton, this manual hoist excels in handling substantial loads effortlessly. Its compact and sturdy design is particularly well-suited for tight spaces, making it an essential tool for any worksite, garage, or warehouse.

A key feature of the NTH010 model is its permanently attached trolley, which enhances maneuverability and simplifies positioning without the need for extra equipment. This innovative design enables users to streamline their lifting operations, saving valuable time and effort. This hoist not only minimizes setup challenges but also maximizes efficiency in any lifting scenario.

The NTH010 is equipped with a cost-effective CF hand chain hoist. This combination ensures that you benefit from the traditional power of a hoist while enjoying the economical advantages of a hand chain system. Users can rely on the dependable performance of this hoist to repeatedly deliver results.

With its compact structure, the NTH Navy Trolley Hoist is your go-to solution for situations where headroom is at a premium. It effortlessly adapts to confined spaces without sacrificing lifting capacity or performance. Whether lifting items in a crowded workshop, performing tasks in construction, or managing heavy loads on a limited scaffold, the NTH010 is engineered to excel.

Investing in the NTH Navy Trolley Hoist translates to embracing reliability and efficiency in your lifting tasks. Its durable construction ensures long-lasting performance, making it a valuable addition to your toolkit. Experience the versatility and ease of use with the NTH010 and transform your lifting operations today.

Product Specifications

.

product:

Low Headroom Chain Hoist, 10 ft.Lift

Load Capacity:

2,000 lb

Hoist Lift:

10 ft

Hoist Mount:

Push Trolley

Hoist Overload Protection:

No

Pull to Lift Rated Load:

72 lb

Housing Length:

12 1/2 in

Housing Width:

11 in

Housing Depth:

8 in

Manufacturers Warranty Length:

2 yr

Lifting Hook Opening Width:

1 3/32 in

For Min Beam Flange Width:

2 5/16 in

Minimum Retracted Length:

12 1/2 in

For Max Beam Flange Height:

Not Applicable

Body Depth:

8 3/32 in

Body Width:

10 29/32 in

Chain Length:

11 ft

For Max Beam Flange Width:

5 5/32 in

Lever Length:

Not Applicable

Maximum Lifting Length:

10 ft

For Min Beam Flange Height:

3 1/2 in

Min Between Hooks:

12 1/2 in

Hook Opening:

1 7/64 in

Brake:

Weston Style Brake

Trolley Configuration:

Push Trolley

Fits Beam Flange W:

2 5/16 in to 5 3/16 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Chain Hoist

Color:

Yellow

Maximum Pulling Capacity:

Not Applicable

Resistance Properties:

Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant

Lifting Hook Type:

Hook with Safety Latch

Includes Clutch:

Clutch Not Included

Brake Type:

Weston Style

Number of Reeves:

1

Mount Type:

Push Trolley

Body Material:

Die-Cast Aluminum

Number of Load Chains:

1

Lifting Hook Material:

Carbon Steel

Includes Brake:

Brake Included

Chain Material:

Manganese Alloy

Overload Protection Included:

No

Operating Position:

Vertical

Features:

Integral Trolley

Included Components:

Safety Latch Hooks

Maximum Lifting Capacity:

2,000 lb

Chain Grade:

Grade 100

Headroom:

12 1/2 in

Power Source:

Manual
