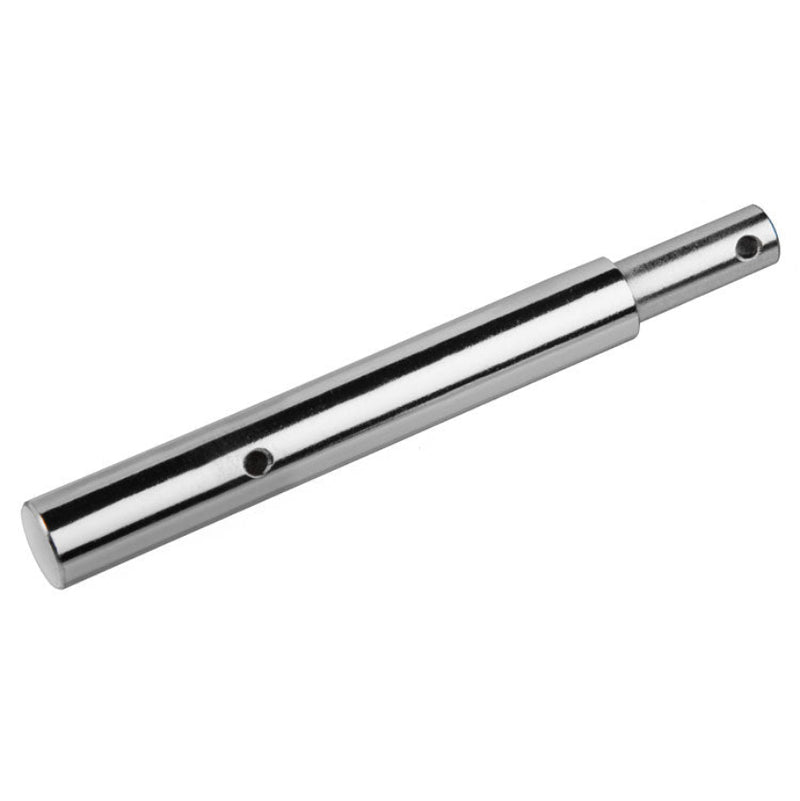

Main Frame Pawl Shaft “ SKU: 584 The Precision Shaft That Anchors Your Hoist's Load-Holding Mechanism In a ratchet winch hoist, the load doesn't just move ” it holds. And the component that makes reliable load-holding possible is the pawl system. The Main Frame Pawl Shaft (SKU: 584) is the genuine OEM replacement shaft that keeps your Lug-All hoist's main frame pawl securely mounted, correctly aligned, and performing as designed. This part is specifically compatible with Lug-All hoist models 3-B and 4-B ” the convertible web strap come-along ratchet winch hoists equipped with hot-stick rings for electrical lineman work and industrial maintenance applications. The EHP Group The Lug-All model 3-B is an industrial-grade 1½-ton web strap come-along ratchet winch hoist ” when used as a single line hoist, it has 11 feet of web strap and a 1,500-pound capacity; as a double line hoist, it has 5 feet 6 inches of web strap and a 3,000-pound capacity. The model 4-B is a 2-ton version ” with 10 feet of web strap and a 2,000-pound single-line capacity, or 5 feet of web strap and a 4,000-pound double-line capacity. Lug-AllLug-All The main frame pawl shaft is the structural pin that secures the main frame pawl within the hoist's cast aluminum main frame. When replacing the pawl, the main frame pawl shaft is removed, then a new shaft is inserted through the pawl and into the main frame to secure all components in place. Without an intact, properly dimensioned shaft, the pawl cannot engage the drum's ratchet teeth consistently ” and without that consistent engagement, the hoist cannot hold a load safely between handle strokes. Lug-All Lug-All's double interlocking pawl mechanism ensures that no load brakes will slip or fail, delivering positive load-holding in all environments. That guarantee depends directly on a correctly fitting, OEM-spec main frame pawl shaft. An undersized, worn, or incorrect substitute shaft introduces play and misalignment into the pawl assembly ” a risk no professional should accept on a working hoist. Certex Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number584Part NameMain Frame Pawl ShaftLength4½"Diameter½"Compatible ModelsLug-All #3-B, #4-BHoist TypeWeb Strap Ratchet Winch Hoist (Convertible / Hot Stick)Model 3-B Capacity1,500 lbs (single line) / 3,000 lbs (double line)Model 4-B Capacity2,000 lbs (single line) / 4,000 lbs (double line)Component CategoryMain Frame / Pawl SystemCountry of OriginUSA

Order With Confidence The SKU 584 Main Frame Pawl Shaft is sized specifically for models 3-B and 4-B. It is not interchangeable with the main frame pawl shafts for other Lug-All model families, which differ in length and diameter. Confirm your hoist model number ” stamped into the ratchet side of the drum ” before ordering. Order SKU 584 today and keep your hoist's load-holding system fully functional and field-ready.
