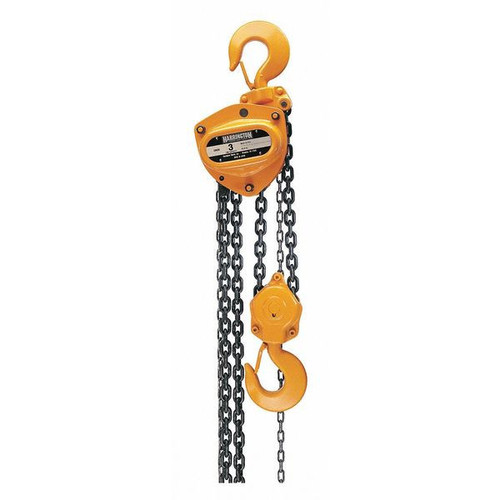

CB Hand Chain Hoist 20' Lift-Capacity 5 Ton CB050 Hand Chain Hoist HARRINGTON

Product Overview

The CB050-20 HARRINGTON CB Hand Chain Hoist is a heavy-duty hoist that is built to last in even the toughest industrial environments. With its durable construction and high-quality internal components, this hoist offers unmatched reliability and performance.The hoist features a 20' lift, providing the flexibility and convenience needed for a wide variety of lifting tasks. Whether you need to lift small loads or heavy machinery, this hoist has the power and capacity to handle it all.One of the standout features of the CB050-20 HARRINGTON CB Hand Chain Hoist is its easy maintenance and repairability. Designed with user-friendly features, this hoist can be easily maintained to ensure optimal performance and a long lifespan.With Capacity ranging from 5 ton, this hoist offers a wide range of options to meet your specific lifting needs. No matter the size or weight of the load, the CB050-20 HARRINGTON CB Hand Chain Hoist has the strength and power to get the job done efficiently.Reliability is crucial when it comes to industrial lifting equipment, and the CB050-20 HARRINGTON CB Hand Chain Hoist delivers just that. Built with durability in mind, this hoist can handle even the toughest lifting tasks with ease.Investing in the CB050-20 HARRINGTON CB Hand Chain Hoist will greatly enhance your industrial operations. With its exceptional quality, easy maintenance, and wide range of Capacity, this hoist is a must-have for any industrial setting. Don't settle for less when it comes to your lifting needs-choose the CB050-20 HARRINGTON CB Hand Chain Hoist and experience the difference it can make.

Product Specifications

.

Part Number:

CB050-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Manual Chain Hoist, 20 ft.Lift=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

11 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

7 1/2 in

Housing Length:

23 39/64 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

11 3/32 in

Body Depth:

7 19/32 in

Body Material:

Steel

Maximum Lifting Length:

20 ft

Lifting Hook Opening Width:

1 13/16 in

Minimum Retracted Length:

23 19/32 in

Load Capacity:

10,000 lb

Minimum Between Hooks:

23 3/4 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Headroom:

23 19/32 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

10,000 lb

Number of Load Chains:

1
