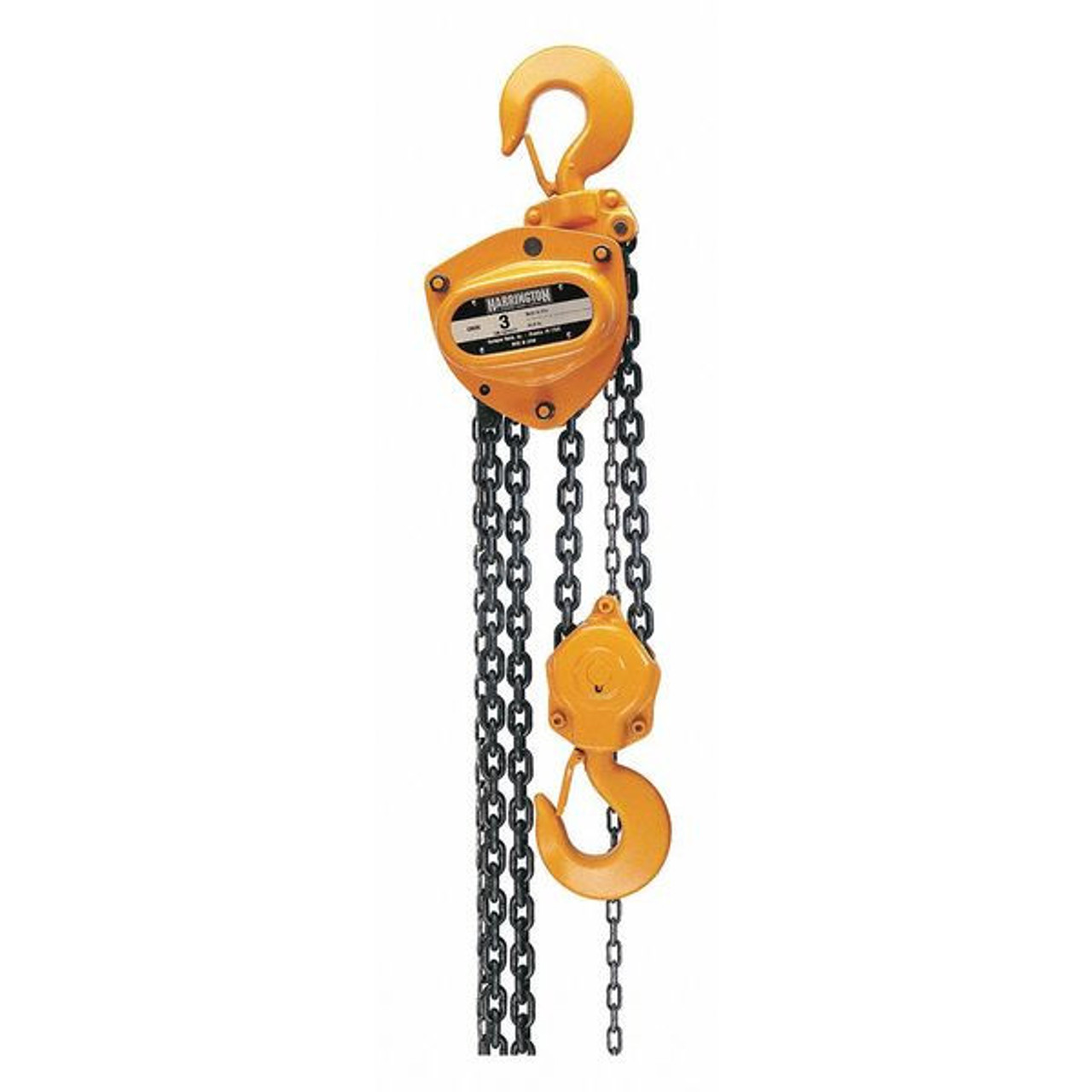

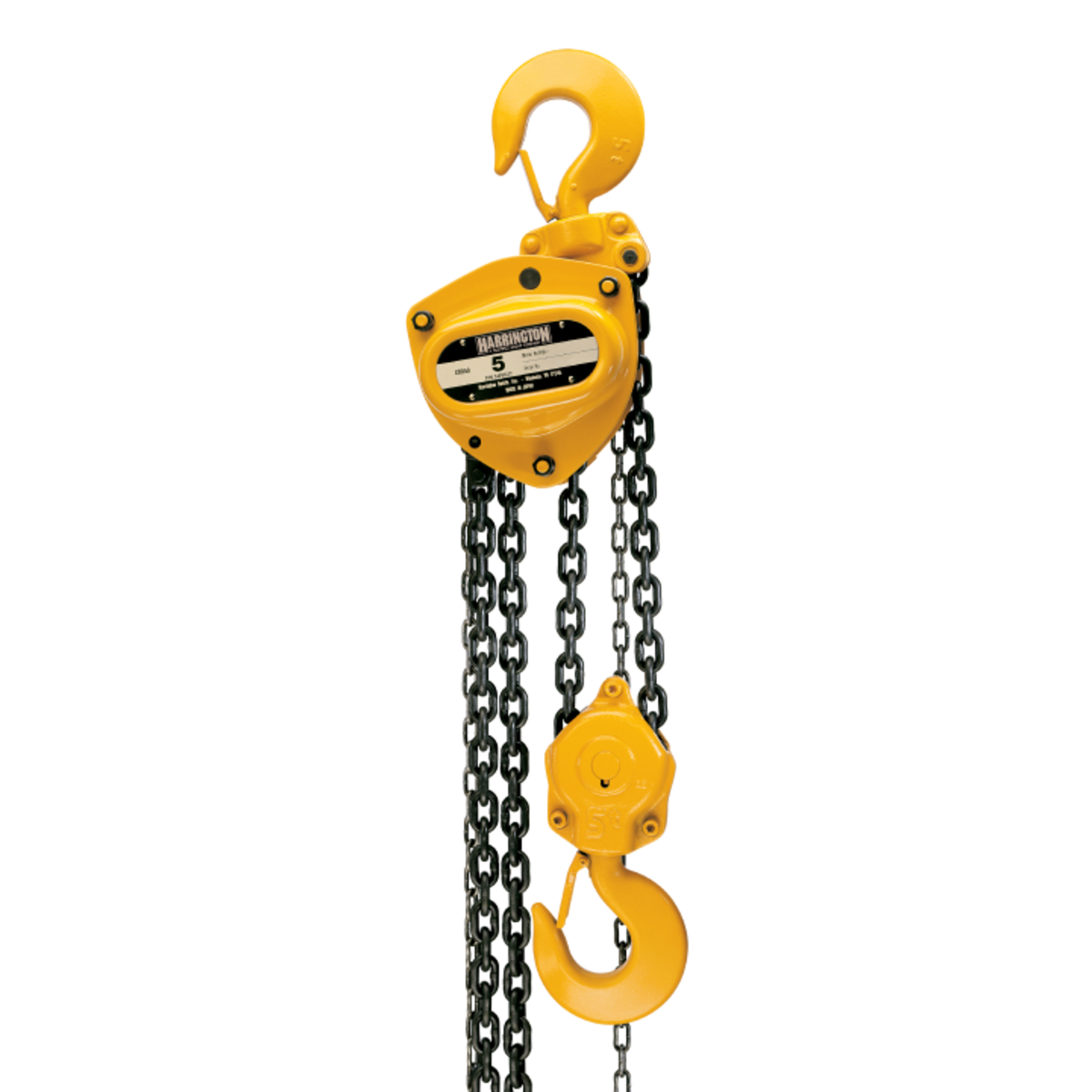

Harrington CB Series Hand Chain Hoist - 5 Ton - 10 ft Lift

Write a Review
$3,980.20
$3,631.93
(You save $348.27 )
SKU: CB050 - 10
Condition: New
Availability: Subject to Availability
Weight: 85.00 LBS
Width: 13.00 (in)
Height: 9.25 (in)
Depth: 15.00 (in)
Shipping: Calculated at Checkout
Color: Yellow
Hoist Lift: 10 ft
Includes: 8-1/2 ft Hand Chain
Housing Width: 11 in
Manufacturers Warranty Length: 2 yr
Housing Depth: 7 1/2 in
Housing Length: 23 39/64 in
For Minimum Beam Flange Width: Not Applicable
For Minimum Beam Flange Height: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Flange Height: Not Applicable
Body Width: 11 3/32 in
Body Depth: 7 19/32 in
Body Material: Steel
Maximum Lifting Length: 10 ft
Lifting Hook Opening Width: 1 13/16 in
Minimum Retracted Length: 23 19/32 in
Load Capacity: 10,000 - 19,999 lbs
Minimum Between Hooks: 23 3/4 in

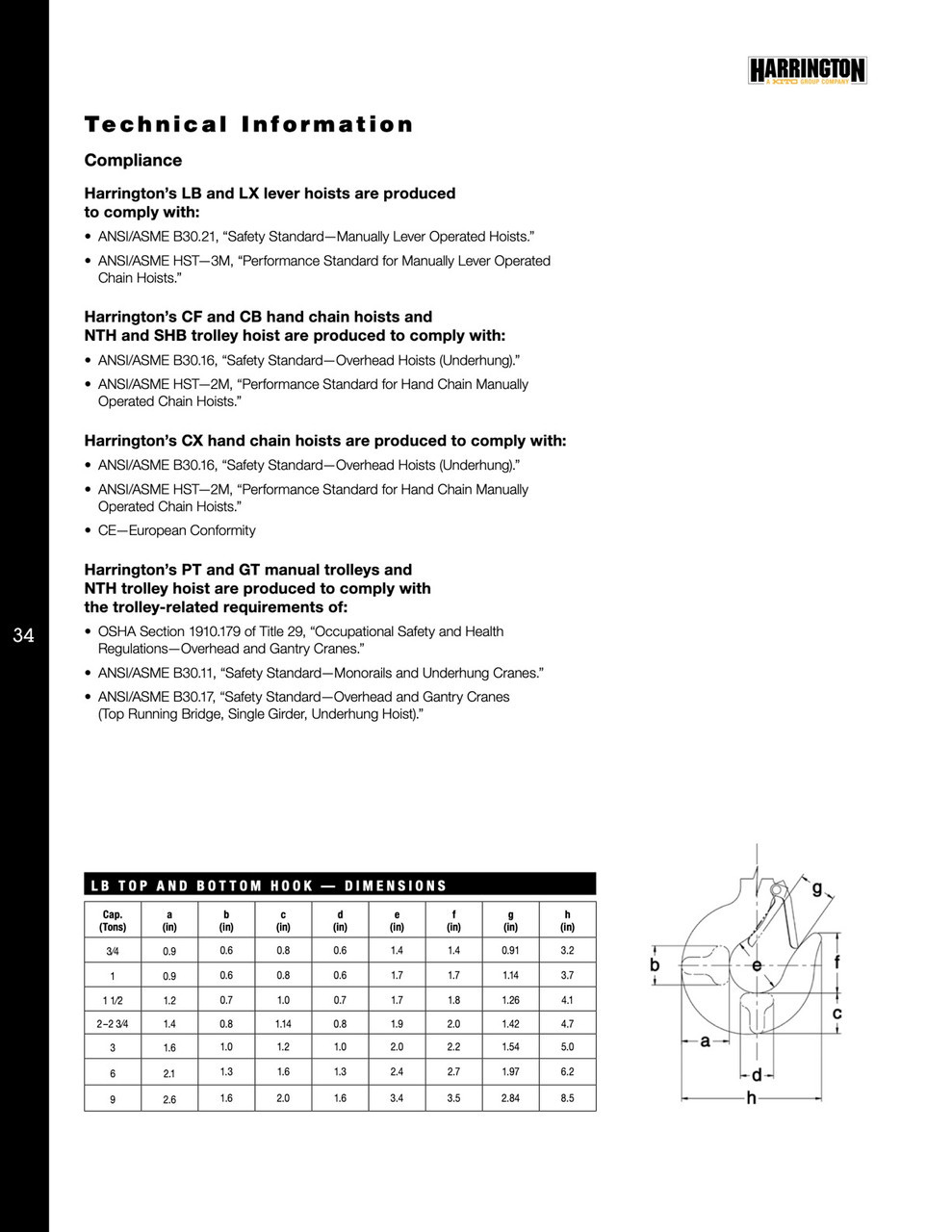

Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Item: Manual Chain Hoist
Brake: Weston Style
Trolley Configuration: Hook Mounted-No Trolley
Features: Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Chain Grade: Grade 100
Included Components: Safety Latch Hooks
Controls: Mount Type: Hook Mounted-No Trolley
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 2
Headroom: 23 19/32 in
Includes Brake: Brake Included
Lifting Hook Type: Hook with Safety Latch
Maximum Lifting Capacity: 10,000 lb
Number of Load Chains: 1
Capacity: 10,000 - 19,999 lbs
Lift: 10 ft
Adding to cart… The item has been added
Harrington CB Series Hand Chain Hoist - 5 Ton - 10 ft Lift

Harrington CB Series Hand Chain Hoist - 5 Ton - 10 ft Lift

$3,980.20
$3,631.93
(You save $348.27 )

Harrington CB Series Hand Chain Hoist - 5 Ton - 10 ft Lift

$3,980.20
$3,631.93
(You save $348.27 )

The CB050 HARRINGTON CB Hand Chain Hoist is the ultimate solution for heavy-duty lifting in the toughest industrial environments. With its 10' lift capacity, this hoist is perfect for applications that demand exceptional strength and reliability.What sets the CB050 apart is its unbeatable durability. Constructed with high-quality materials and precision engineering, it can withstand the harshest conditions and deliver outstanding performance day in and day out. Whether you need to lift 5 ton, this hoist can handle it all effortlessly.Safety is a top priority with the CB050. It features top-of-the-line internal components that ensure optimal reliability and worker protection. You can trust this hoist to lift your valuable assets with precision and without compromising on safety.Maintenance and repairability are a breeze with the CB050. It is designed with easy access to internal components, making servicing quick and hassle-free. This means less downtime and increased productivity for your operations.Investing in the CB050 is a wise choice for any industrial fleet. Its robust construction and superior performance guarantee that it will meet your lifting demands for years to come. This hoist is built to last and will become an integral part of your lifting equipment arsenal.Say goodbye to unreliable hoists that struggle with heavy lifting tasks. With the CB050 HARRINGTON CB Hand Chain Hoist, you can confidently tackle any heavy-duty application with ease. Its exceptional durability, top-notch safety features, and easy maintenance make it the go-to choice for professionals in various industries.Choose the CB050 HARRINGTON CB Hand Chain Hoist and experience the ultimate power and reliability in your lifting operations. Invest in quality, efficiency, and peace of mind. Get your CB050 today and elevate your industrial lifting capabilities to new heights.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
