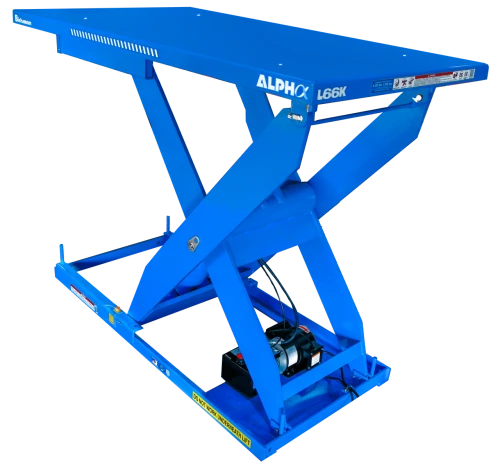

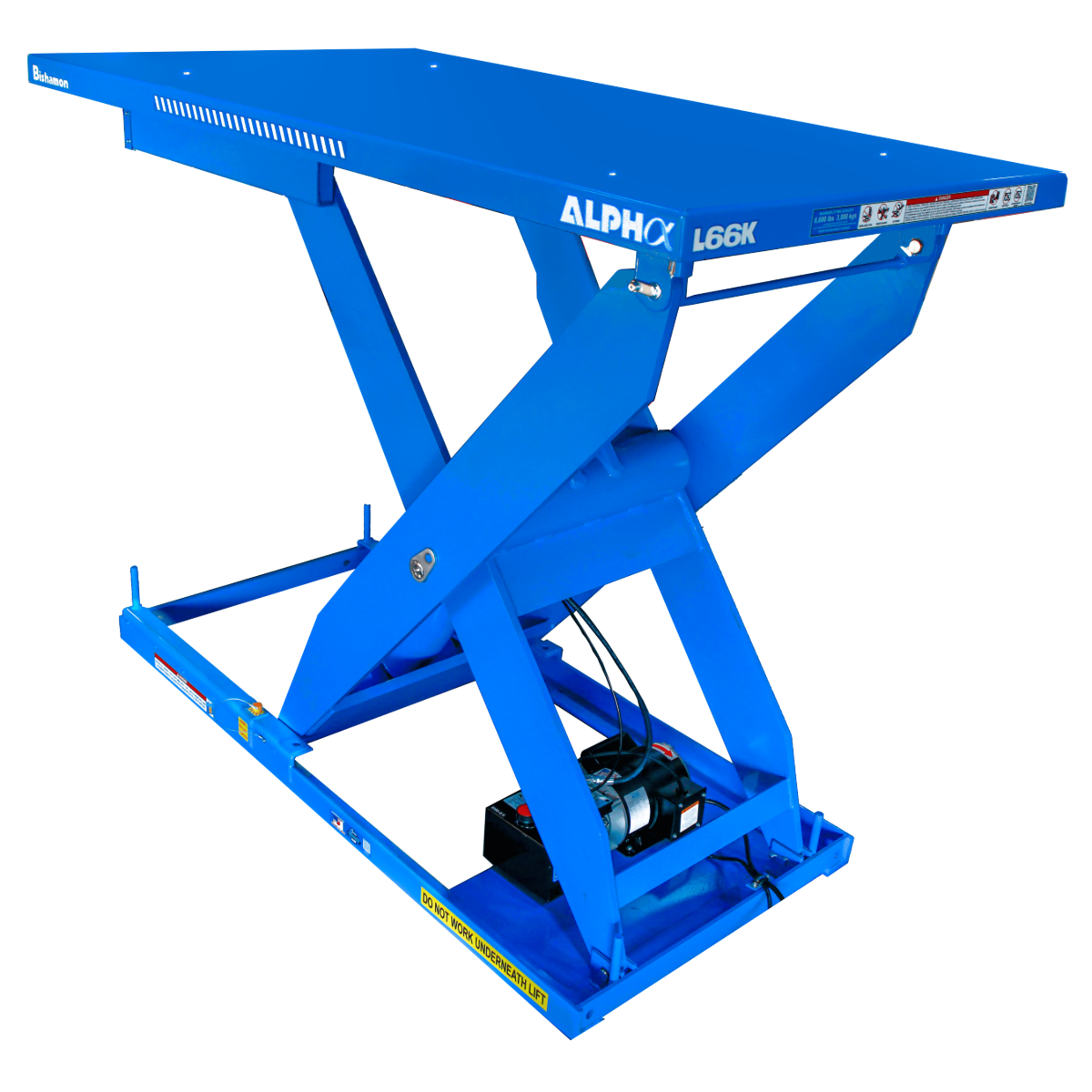

ALPHA Electric-Hydraulic Lift Tables - L66K-TT-230-3

The L66K-TT-230-3 Alpha Electric-Hydraulic Lift Table with Turntable is a high-capacity, industrial-grade lifting solution engineered to maximize efficiency, enhance safety, and improve ergonomic performance in demanding work environments. As part of the next-generation Alpha Series, this lift table integrates powerful electric-hydraulic lifting with a precision 360 ° rotating turntable, allowing operators to handle and position heavy loads with ease and accuracy.

Built for warehouses, manufacturing facilities, assembly lines, and distribution centers, this lift table eliminates the need for repetitive lifting, bending, and repositioning. With a robust 6,600 lb lifting capacity, the L66K-TT-230-3 is ideal for heavy-duty applications requiring reliable performance and consistent load handling.

The integrated turntable enables full 360-degree rotation, allowing operators to access all sides of a load without moving around it. This significantly improves productivity while reducing physical strain and minimizing the risk of injury. Powered by a 230V electric-hydraulic system, the lift table delivers smooth, controlled lifting and lowering for precise positioning, while the reinforced scissor mechanism ensures stable and balanced operation under load.

Safety is built into every aspect of the design. Flow-limiting valves prevent sudden drops and ensure controlled descent, protecting both operators and materials. A maintenance safety pin provides secure servicing and inspection, reducing downtime and improving long-term reliability.

Constructed with a heavy-duty steel frame and reinforced scissor arms, the L66K-TT-230-3 is designed for durability in high-cycle environments. Premium high-load ball bearings and continuous axle rollers ensure smooth operation and support up to 35,000 cycles per year, making it ideal for demanding production schedules.

The unit features a compact, integrated hydraulic power unit and reservoir, optimizing performance while conserving space. Its plug-and-play control system is intuitive and user-friendly, allowing quick integration into existing workflows and increased operational efficiency.

Maintenance is minimal thanks to self-lubricating, maintenance-free bushings, eliminating routine lubrication and reducing wear. The lift table complies with ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring industry-leading safety and reliability.

Backed by a 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT-230-3 Alpha Lift Table with Turntable delivers dependable, long-term performance.

Specifications

• Model / SKU: L66K-TT-230-3
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Power Supply: 230V electric power
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Type: Integrated rotating turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent, reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly lines, packaging and inspection stations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT-230-3 Lift Table with Turntable is the ideal choice for businesses seeking maximum lifting power, ergonomic efficiency, and reliable long-term performance in heavy-duty material handling operations.
