Description

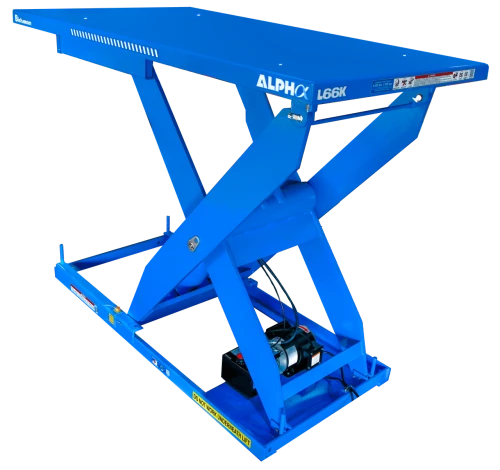

ALPHA Electric-Hydraulic Lift Tables - L66K-TT-230-1

The L66K-TT-230-1 Alpha Electric-Hydraulic Lift Table with Turntable is a high-performance, heavy-duty material handling solution engineered to improve efficiency, enhance operator safety, and optimize ergonomic workflows. As part of the advanced Alpha Series, this lift table combines powerful electric-hydraulic lifting with a precision rotating turntable, allowing operators to safely lift, position, and access heavy loads with ease.

Designed for demanding environments such as manufacturing plants, warehouses, assembly lines, and distribution centers, this lift table eliminates the need for repetitive lifting, bending, and repositioning. With a substantial 6,600 lb lifting capacity, the L66K-TT-230-1 is ideal for handling large, heavy materials while maintaining consistent performance and stability.

The integrated turntable provides smooth 360-degree rotation, enabling operators to access all sides of a load without moving around it —significantly improving productivity and reducing strain. The 230V electric-hydraulic system delivers smooth, controlled lifting and lowering for precise positioning, while the reinforced scissor mechanism ensures stable, balanced operation under load.

Safety is a top priority, with flow-limiting valves that prevent sudden drops and ensure controlled descent. This added protection helps safeguard both operators and materials during operation. The lift table also includes a maintenance safety pin for secure servicing and inspections.

Built for long-term durability, the L66K-TT-230-1 features a heavy-duty steel frame and reinforced scissor arms designed for high-cycle industrial use. Premium high-load ball bearings and continuous axle rollers ensure smooth, reliable movement and support up to 35,000 cycles per year, making it suitable for demanding production schedules.

The compact, integrated hydraulic power unit and reservoir maximize performance while minimizing space requirements. Its plug-and-play control system simplifies operation, allowing for quick installation and improved workflow efficiency.

Maintenance is minimal thanks to self-lubricating, maintenance-free bushings, which reduce wear and eliminate routine lubrication. The unit complies with ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring industry-leading safety and reliability.

Backed by a 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT-230-1 Alpha Lift Table with Turntable delivers dependable, long-lasting performance.

Specifications

  • Model / SKU: L66K-TT-230-1
  • Series: Alpha Electric-Hydraulic Lift Tables
  • Lifting Capacity: 6,600 lbs
  • Power Supply: 230V electric power
  • Lift Mechanism: Electric-hydraulic scissor lift system
  • Platform Type: Integrated rotating turntable platform
  • Turntable Function: Smooth 360 ° rotation for full load accessibility
  • Operation: Powered lifting with manual or assisted rotation
  • Bearings: Premium high-load ball bearings for enhanced durability
  • Rollers: Continuous axle rollers for consistent and reliable movement
  • Safety Features: Flow-limiting valve; maintenance safety pin
  • Power Unit: Compact, integrated hydraulic power unit and reservoir
  • Controls: User-friendly plug-and-play control system
  • Construction: Heavy-duty steel frame with reinforced scissor structure
  • Bushings: Self-lubricating, maintenance-free pivot bushings
  • Cycle Rating: Up to 35,000 cycles per year
  • Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
  • Applications: Manufacturing, warehousing, assembly lines, packaging and inspection stations
  • Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT-230-1 Lift Table with Turntable is the ideal solution for businesses seeking maximum lifting power, ergonomic efficiency, and reliable performance in high-demand industrial material handling applications.
