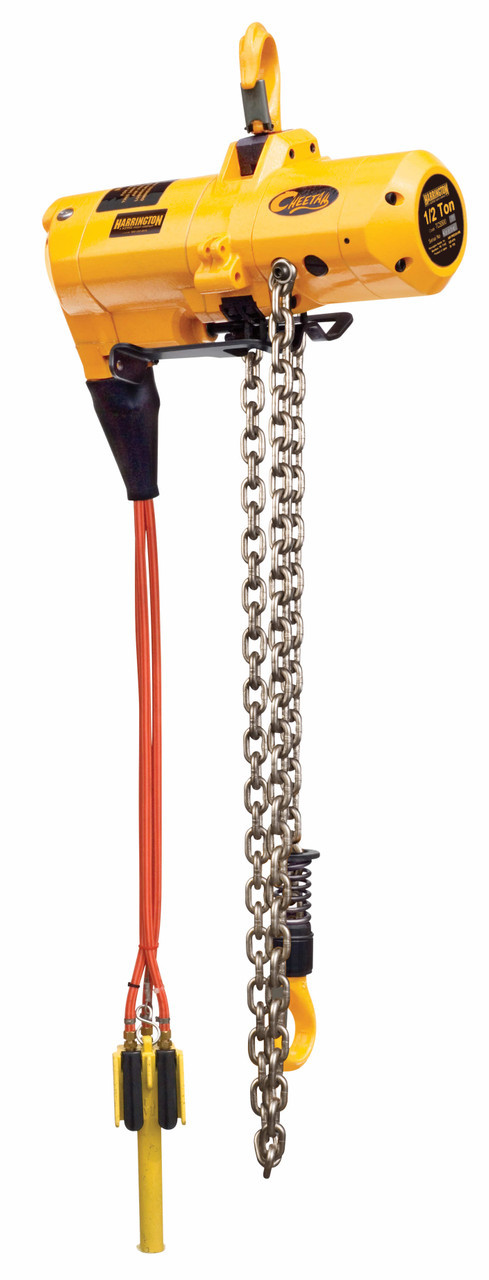

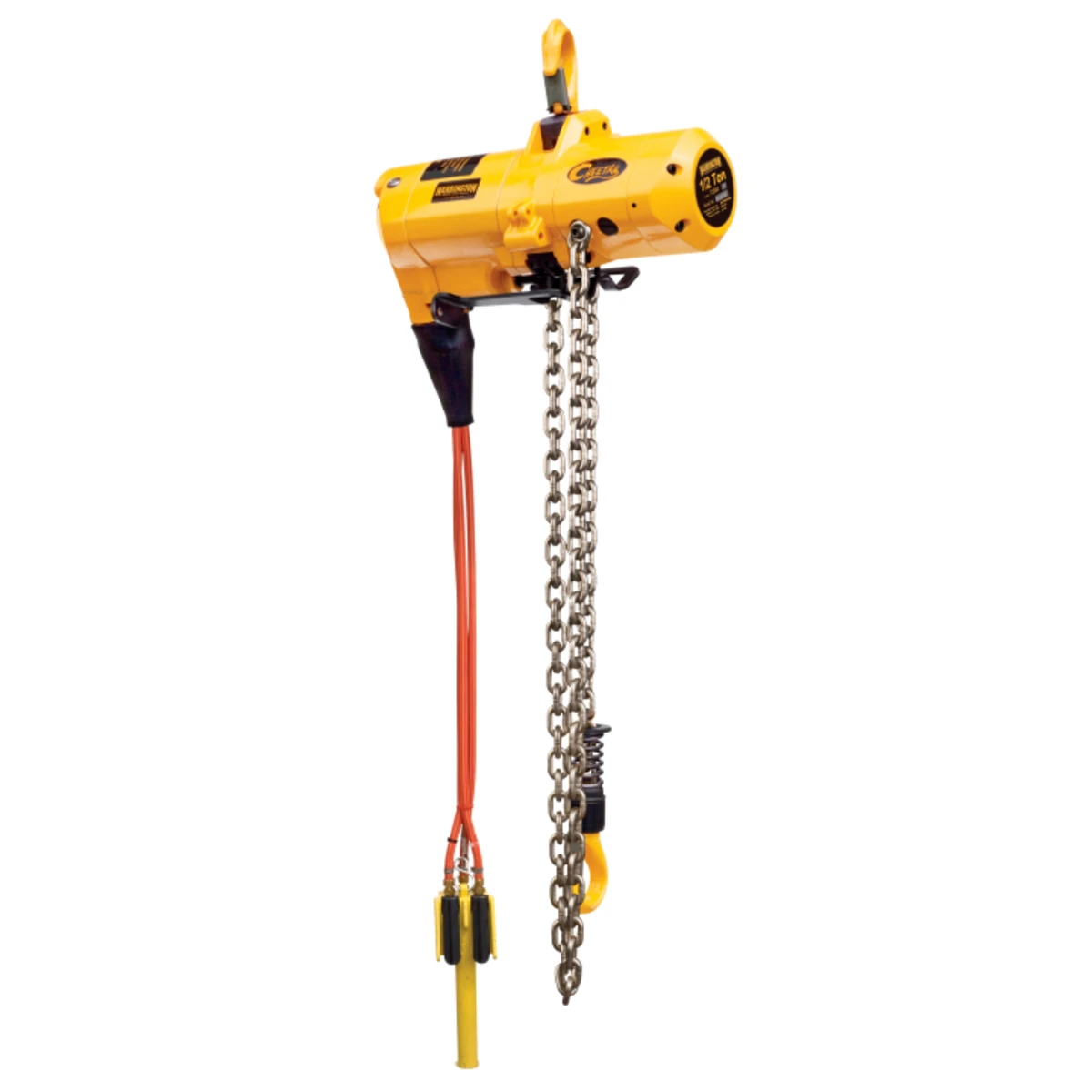

TCS Air Hoist 10' Lift-Capacity 1/4 Ton TCS250C Air Hoist HARRINGTON

Product Overview

The TCS250C-10 HARRINGTON TCS Air Hoist is a premium-quality lifting solution designed for durability and superior performance. With a lift capacity of 10 feet and load Capacity ranging from 1/4 ton, this air hoist offers exceptional power for a wide range of applications.Efficiency and speed are at the forefront of the TCS250C-10 HARRINGTON TCS Air Hoist's design. Its adjustable lifting and lowering speeds provide precise control over the movement of your loads, saving you time and effort. Whether you're tackling heavy lifting tasks in a manufacturing facility or delicately handling materials in a warehouse, this hoist is equipped to handle any job with precision.Constructed with reliability in mind, the TCS250C-10 HARRINGTON TCS Air Hoist is built to withstand demanding working conditions. Its robust construction ensures long-lasting performance, making it ideal for heavy-duty use. No matter the challenge, this hoist is up to the task.What sets the TCS250C-10 HARRINGTON TCS Air Hoist apart is its exceptional power and speed. Professionals can rely on its impressive performance to get the job done efficiently, saving time and increasing productivity. Its precise control allows for accurate material handling, preventing costly mistakes and ensuring the safety of both workers and goods.Investing in the TCS250C-10 HARRINGTON TCS Air Hoist means investing in a reliable and high-performance tool. Designed to exceed expectations and deliver consistent results, this hoist is a valuable asset for any industrial professional. Don't settle for less when it comes to your lifting needs. Choose the TCS250C-10 HARRINGTON TCS Air Hoist and experience the difference for yourself.

Product Specifications

.

Part Number:

TCS250C-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Air Chain Hoist, 500 lb. Cap., 10 ft. Lift=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, External Speed Adjustment, Nickle Plated Load Chain

Lift Speed:

121 fpm

Housing Width:

8 11/16 in

Manufacturers Warranty Length:

1 yr

Housing Length:

14 3/8 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 11/16 in

Body Depth:

14 13/32 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 13/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

500 lb

Minimum Between Hooks:

16 5/16 in

Standards:

ANSI/ASME B30.17

Item:

Air Chain Hoist

Reeving:

1

Trolley Configuration:

Hook Mounted-No Trolley

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

Yes

Brake Type:

Disc

Chain Grade:

Grade 80

Included Components:

Chain Container, External Speed Adjustment Screws

Fixed Lift Speed:

121 fpm

Chain Finish:

Nickel Plated

Controls:

Pull Cord=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

16 3/10 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Cast Aluminum

Programmable:

Non-Programmable
