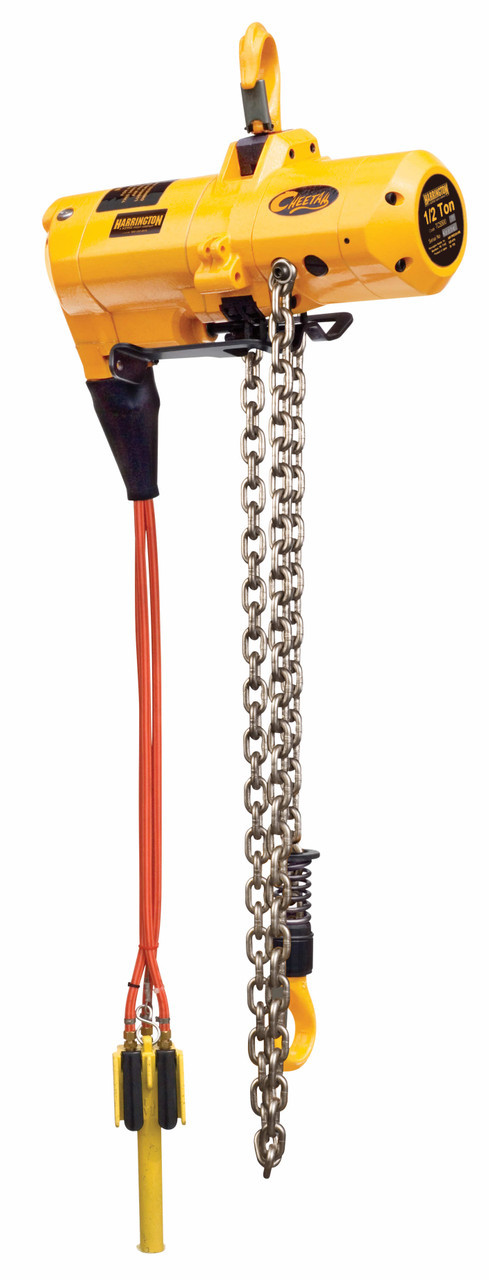

Harrington TCS Cheetah Series Air Hoist - 1/2 Ton - Pendant Control - 10 ft Lift

Write a Review
$6,832.22
$5,081.46
(You save $1,750.76 )
SKU: TCS500P-10
Condition: New
Availability: Subject to Availability
Weight: 46.00 LBS
Shipping: Calculated at Checkout
Part Number: TCS500P-10
Color: Yellow
Hoist Lift: 10 ft
product: Air Chain Hoist, 1000 lb. Cap., 10 ft. Lft, Hoist Mount: Hook Mounted-No Trolley
Includes: Chain Container, External Speed Adjustment, Nickle Plated Load Chain
Lift Speed: 10 ft
Housing Width: 8 11/16 in
Manufacturers Warranty Length: 1 yr
Housing Length: 14 3/8 in
For Minimum Beam Flange Width: Not Applicable
For Minimum Beam Flange Height: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Flange Height: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 6 19/32 in
Body Depth: 14 13/32 in
For Minimum Beam Height: Not Applicable
Body Length: 14 13/32 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Lifting Hook Opening Width: 1 in
Minimum Retracted Length: 16 5/16 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 16 5/16 in
Standards: ANSI/ASME B30.17
Item: Air Chain Hoist
Reeving: 1
Trolley Configuration: Hook Mounted-No Trolley
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Not Included
Overload Protection Included: Yes
Brake Type: Disc
Chain Grade: Grade 80
Included Components: Chain Container, External Speed Adjustment Screws
Fixed Lift Speed: 60 fpm
Chain Finish: Nickel Plated
Controls: Pull Cord, Mount Type: Hook Mounted-No Trolley
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Headroom: 16 3/10 in
Includes Brake: Brake Included
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 1,000 lb
Body Finish: Painted
Number of Load Chains: 1
Body Material: Cast Aluminum
Programmable: Non-Programmable
Capacity: 1,000 - 2,499 lbs
Suspension / Mounting: Hook
Lift: 10 ft
Control: Pull Cord
Adding to cart… The item has been added
Harrington TCS Cheetah Series Air Hoist - 1/2 Ton - Pendant Control - 10 ft Lift

Harrington TCS Cheetah Series Air Hoist - 1/2 Ton - Pendant Control - 10 ft Lift

$6,832.22
$5,081.46
(You save $1,750.76 )
Experience unrivaled speed and adaptability with the TCS500P-10 HARRINGTON TCS Air Hoist. This extraordinary hoist allows you to customize lifting and lowering speeds, catering to the exact needs of any task. Its remarkable capabilities make it ideal for a wide range of applications.With a lifting capacity that ranges from an impressive 1/2 Ton, this hoist effortlessly handles heavy loads. The 10-foot lift provides ample height for smooth and efficient operations. Say goodbye to the days of struggling with bulky and cumbersome equipment. The TCS500P-10 is designed to handle the toughest challenges with ease.The TCS500P-10 is built with cutting-edge technology, guaranteeing fast and reliable performance. It is engineered to excel in even the most demanding environments, making it the ultimate choice for professionals who value productivity and efficiency.Upgrade your lifting capabilities today and unlock a world of possibilities with the TCS500P-10 HARRINGTON TCS Air Hoist. Harness the power of unmatched speed and versatility, allowing you to complete tasks with precision and ease. This hoist is the perfect companion for those looking to elevate their work to new heights.With its sleek and innovative design, the TCS500P-10 not only delivers exceptional functionality but also showcases a modern and professional aesthetic. It is durably constructed to withstand the rigors of daily use, ensuring longevity and reliability.When it comes to lifting heavy loads, trust in the TCS500P-10 HARRINGTON TCS Air Hoist to get the job done effortlessly. Experience powerful performance, unmatched speed, and unrivaled versatility. Invest in the TCS500P-10 today and elevate your productivity to new levels.
All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
