SNERP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1 Tons SNERP010S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Enhance your heavy-duty lifting with the SNERP Electric Chain Hoist with Push Trolley, model SNERP010S-20. Specifically engineered for extreme duty applications, this electric chain hoist offers unmatched reliability and efficiency for industries that require substantial lifting capabilities.

Designed with a single-phase motor, the SNERP010S-20 ensures consistent performance, enabling you to tackle the toughest lifting jobs with ease. Boasting a remarkable lifting capacity of up to 1 ton, this hoist is well-equipped to handle demanding tasks, making it an invaluable asset in settings such as construction sites, manufacturing facilities, and more.

• Heavy-duty 20' lift capacity of 1 ton for substantial lifting tasks.
• Powered by a robust single-phase motor for reliable and consistent operation.
• Equipped with a push trolley for enhanced maneuverability and positioning.
• Constructed from durable materials to withstand rigorous working conditions.
• Ideal for various industries, including construction, manufacturing, and warehousing.
• Designed to streamline operations and improve productivity.
• Reduces the need for manual lifting, enhancing worker safety.

Upgrade your lifting capabilities and increase operational efficiency with the SNERP010S-20 HARRINGTON Electric Chain Hoist. This advanced hoisting solution allows for smooth and precise movement, ensuring you can maneuver heavy loads seamlessly. Say goodbye to the physical strain associated with manual lifting and embrace a modern, reliable solution that enhances productivity.

Investing in the SNERP Electric Chain Hoist is not just a purchase; it's a commitment to transforming your heavy-lifting processes. Trust in its robust design and efficient performance to elevate your operational standards. Experience the significant impact it can have on your workforce's safety and productivity—choose the SNERP010S-20 HARRINGTON Electric Chain Hoist with Push Trolley today.

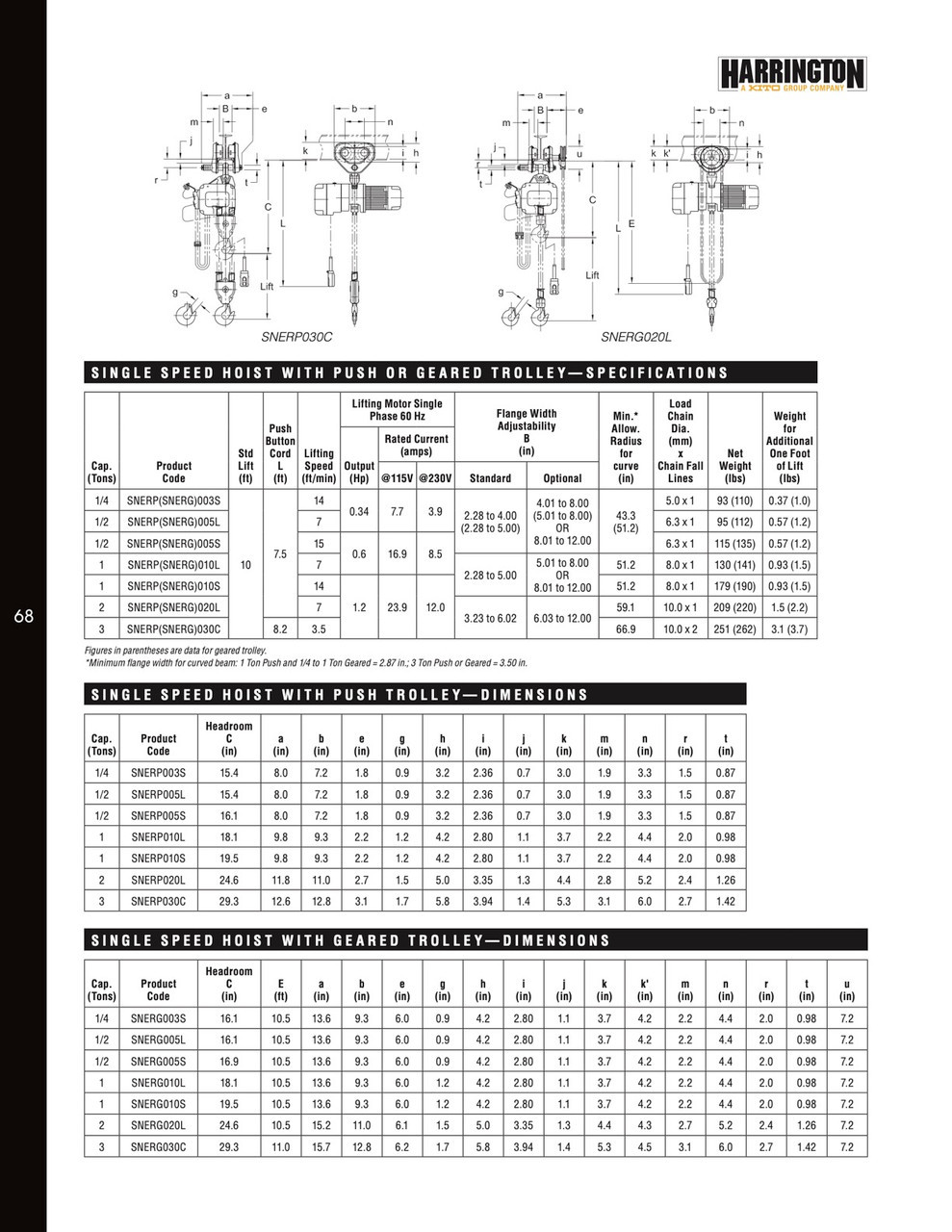

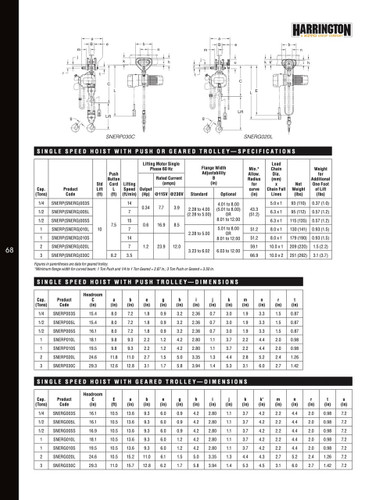

Product Specifications

.

Part Number:

SNERP010S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

Chain Container,, Push Trolley

Lift Speed:

14 fpm

Housing Width:

16 1/2 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

8 5/16 in

Housing Length:

26 7/8 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 1/2 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

4 3/16 in

Body Length:

26 7/8 in

Minimum Radius Curve:

51 3/16 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/5 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 1/2 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

17 11/16 in

Motor HP:

1.2 hp

Phase:

1

Standards:

ANSI/ASME B30.16, ASME HST-1M

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Option

Control Cord:

16 ft

Amps @ Low Volts:

23.9 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

17 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

23.9 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
