SNER Electric Chain Hoist 20' Lift-Capacity 3 Tons SNER030C Electric Chain Hoist HARRINGTON

Product Overview

The SNER030C-20 HARRINGTON SNER Electric Chain Hoist stands out in the heavy-duty lifting market, offering unparalleled performance and reliability. With an impressive 20-foot lift capacity and a robust load-bearing capability of up to 3 tons, this electric chain hoist is engineered to master even the most demanding industrial applications.

When it comes to heavy lifting, the SNER030C-20 is an exceptional performer. Designed for both industrial settings and large-scale projects, it employs advanced technology to convert single-phase power into remarkable lifting force. This innovation ensures that users can manage tough jobs efficiently and effectively, thereby saving time and reducing labor costs.

• 20-foot lift capability ensures flexibility in various lifting scenarios.
• 3-ton lifting capacity handles the heaviest loads with ease.
• Advanced power conversion technology guarantees maximum efficiency in operation.
• Robust construction with high-quality materials is built to last in harsh environments.
• Smooth and precise lifting mechanism allows for easy control and accurate load positioning.
• Designed for heavy-duty tasks, making it an ideal choice for industries requiring reliability.
• Easy to install and operate, enhancing user experience and productivity.

Built for resilience, the SNER030C-20 HARRINGTON SNER Electric Chain Hoist is engineered with materials that ensure long-lasting performance even under the most strenuous working conditions. This hoist's sturdy construction translates to lower maintenance costs and reduced downtime, making it an investment that pays dividends over time.

Efficiency and safety are at the forefront of the SNER030C-20 design. The hoist’s lifting mechanism operates seamlessly, allowing operators to position heavy loads with precision. Whether you are lifting, lowering, or moving materials, this hoist offers controlled operation, enhancing both productivity and safety measures on the job site.

In summary, the SNER030C-20 HARRINGTON SNER Electric Chain Hoist is the ultimate solution for those who require high-quality lifting solutions. With its unmatched lift capacity, durable build, and efficient performance, it is poised to handle the toughest tasks in any heavy-duty environment. Make the smart choice for your lifting needs—invest in the SNER030C-20 HARRINGTON SNER Electric Chain Hoist and experience superior power and durability in action.

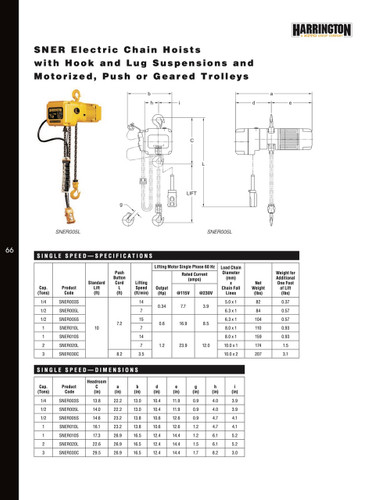

Product Specifications

.

Part Number:

SNER030C-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 6,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

3.5 fpm

Housing Width:

13 3/16 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

8 5/16 in

Housing Length:

29 1/2 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 3/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

29 1/2 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 11/16 in

Minimum Retracted Length:

26 29/32 in

Load Capacity:

6,000 lb

Minimum Between Hooks:

29 1/2 in

Motor HP:

1.2 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

2

Thermal Protection:

No

Control Cord:

16 ft

Finish:

Electrostatic Enamel

Amps @ Low Volts:

23.9 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

3.5 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

1 1/4 hp

Headroom:

29 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

6,000 lb

Current at Minimum Voltage:

23.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
