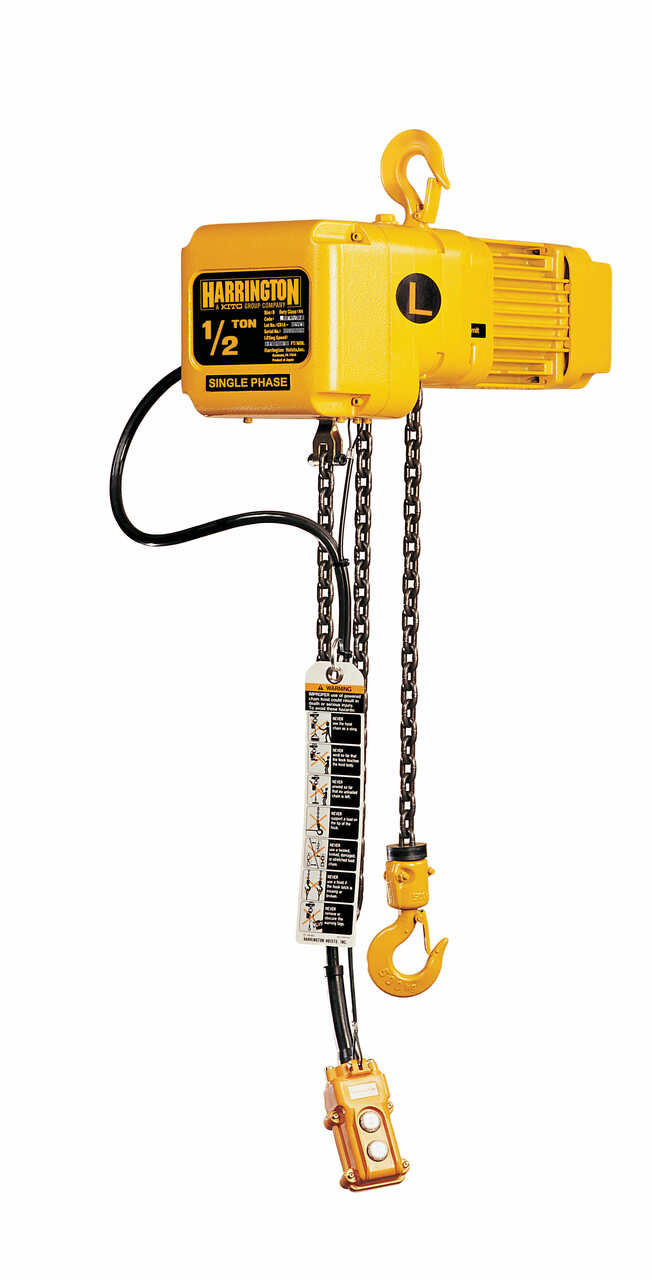

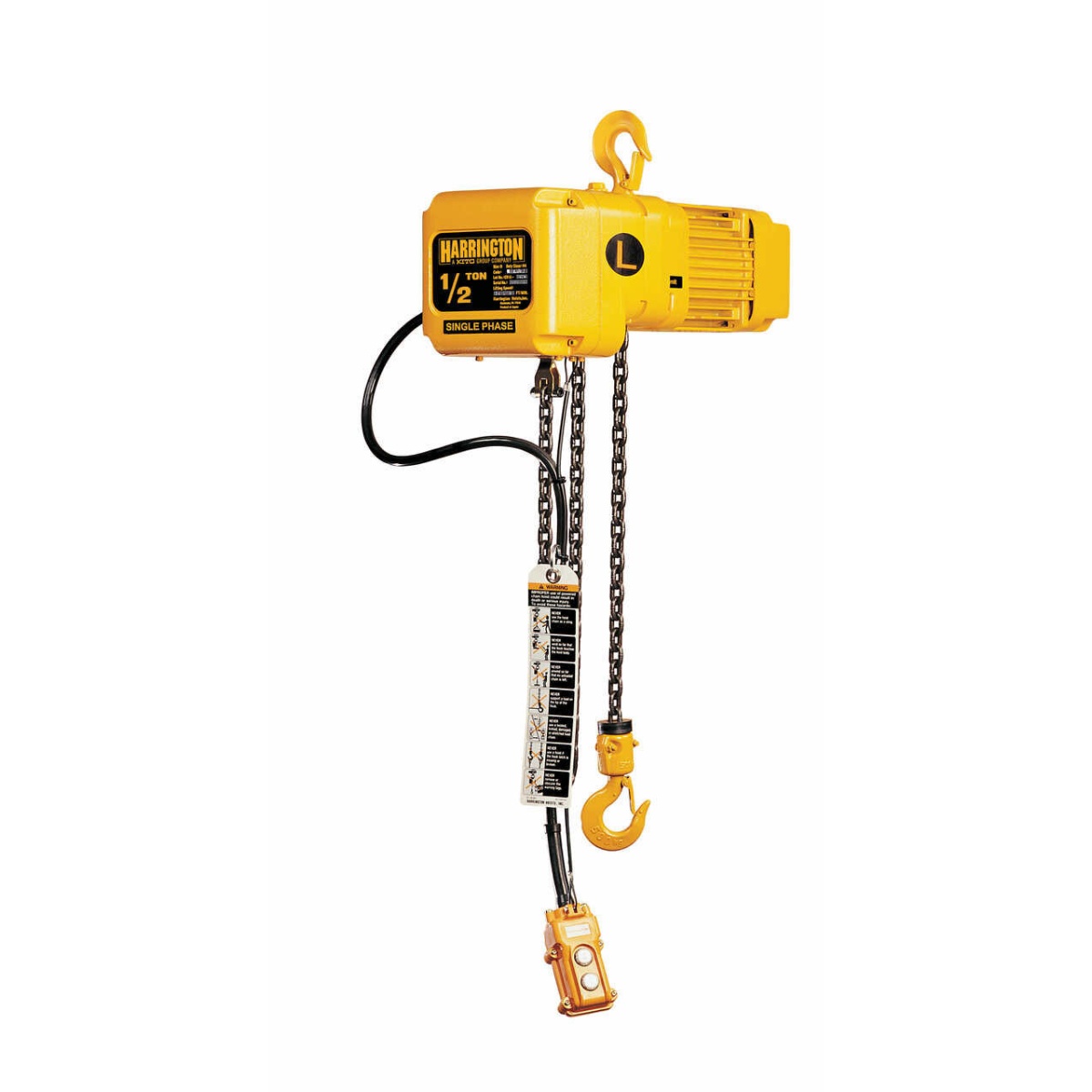

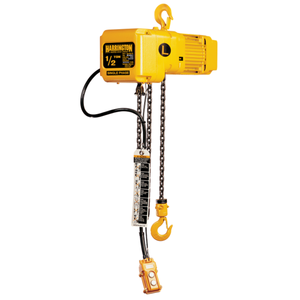

SNER Electric Chain Hoist 15' Lift-Capacity 1 Tons SNER010S Electric Chain Hoist HARRINGTON

Product Overview

The SNER010S-15 HARRINGTON SNER Electric Chain Hoist is the perfect solution for all your heavy-duty lifting needs. With a lift capacity of 15', this electric chain hoist is designed to handle loads ranging from 1 tons. Whether you need to lift equipment, materials, or machinery, this hoist has got you covered.Featuring a robust construction, the SNER010S-15 is built to withstand the toughest of environments. Its durable and reliable performance ensures that your operations run seamlessly, without any hiccups. You can trust this chain hoist to handle your lifting needs with precision and control.One of the key features of the SNER010S-15 is its compatibility with single-phase power. This means that you don't have to worry about complicated power requirements or installations. Simply plug it into a single-phase power source, and you're good to go. This makes it an ideal choice for a wide range of applications, including workshops, warehouses, and construction sites.The SNER010S-15 HARRINGTON SNER Electric Chain Hoist is designed with the user in mind. Its ergonomic design ensures ease of operation, allowing you to lift and lower loads effortlessly. The controls are intuitive and user-friendly, making it suitable for both novice and experienced operators.When it comes to safety, the SNER010S-15 delivers. It has been equipped with various safety features to ensure that your lifting operations are conducted securely. From overload protection to adjustable upper and lower limit switches, this chain hoist is designed to keep you and your equipment safe at all times.Upgrade your lifting capabilities with the SNER010S-15 HARRINGTON SNER Electric Chain Hoist. Experience efficiency, reliability, and durability like never before. Whether you're in the manufacturing industry, construction business, or any other sector that requires heavy lifting, this electric chain hoist is your ultimate solution. Invest in the SNER010S-15 and witness the difference it can make in improving your operations.

Product Specifications

.

Part Number:

SNER010S-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

14 fpm

Housing Width:

13 5/16 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

8 5/16 in

Housing Length:

17 5/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 5/16 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

17 5/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

17 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

17 5/16 in

Motor HP:

1.2 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Control Cord:

11 ft

Amps @ Low Volts:

23.9 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

17 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

23.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
