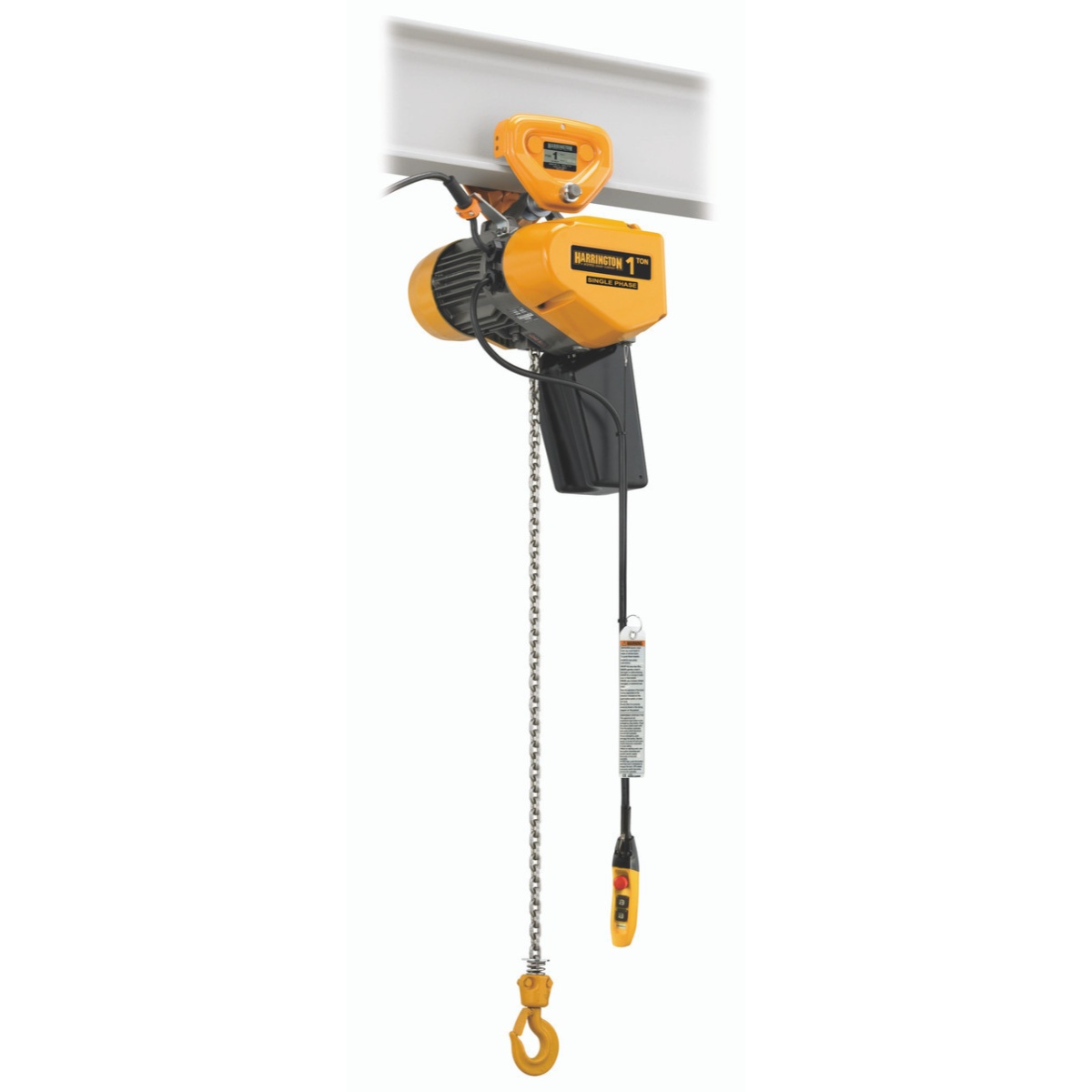

SEQP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1 Tons EQP010SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SEQP Electric Chain Hoist with Push Trolley, model SEQP010SD-20 from HARRINGTON, revolutionizes the way professionals handle heavy lifting. Designed for efficiency and reliability, this electric chain hoist boasts a powerful lift capacity of 1 ton and an impressive 20-foot lift height, making it an indispensable tool for warehouses, construction sites, and manufacturing facilities.

Constructed with cutting-edge dual-speed Variable Frequency Drive (VFD) control, the SEQP010SD-20 offers unparalleled precision in load manipulation. This dual-speed functionality allows operators to adjust the lifting speed according to the specific lifting requirements of each task, ensuring not only quick load retrieval but also meticulous control during operation. The result is a seamless workflow that translates to enhanced productivity and reduced operational downtime.

• 1 ton lifting capacity: Handles heavy loads with remarkable ease.
• 20-foot lifting height: Ideal for various applications across different settings.
• Dual-speed VFD control: Offers precise speed adjustments for optimized performance.
• PT push trolley: Facilitates effortless movement along overhead beams.
• Heavy-duty construction: Built to withstand rigorous environments and daily use.
• Trusted HARRINGTON quality: Over 150 years of industry experience.

One standout feature of the SEQP010SD-20 is the integrated PT push trolley, designed to enhance mobility. Unlike fixed hoists, the push trolley allows for easy transport of the hoist along overhead tracks, providing flexibility that is crucial in busy work environments. This feature not only saves time but also significantly increases the safety and efficiency of lifting operations.

HARRINGTON has a well-earned reputation for quality and reliability, which makes the SEQP010SD-20 an investment worth considering. The hoist’s durable construction ensures it can endure the demanding conditions of industrial environments while minimizing the potential for maintenance issues. When you choose HARRINGTON, you’re choosing a brand that has stood the test of time and continues to set benchmarks in the industry.

Don’t let cumbersome lifting processes slow down your operations. Upgrade your workplace with the SEQP010SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley. Experience the perfect blend of power, precision, and portability, and witness firsthand how this electric chain hoist transforms your approach to heavy lifting.

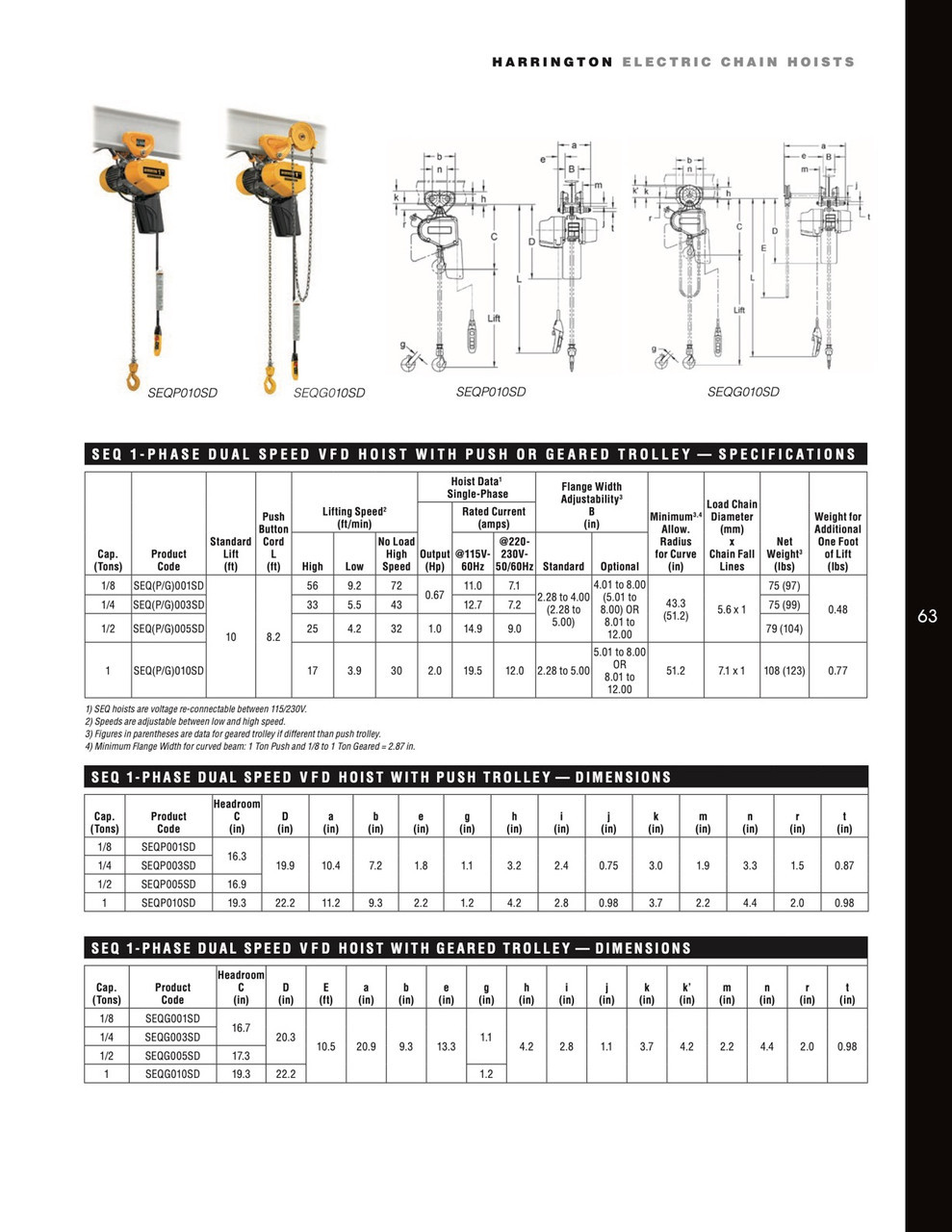

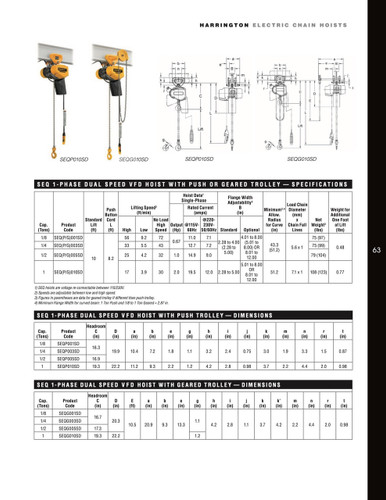

Product Specifications

.

Part Number:

SEQP010SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

17/3.9 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

1.3 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

19 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

17 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.9 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

19.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
