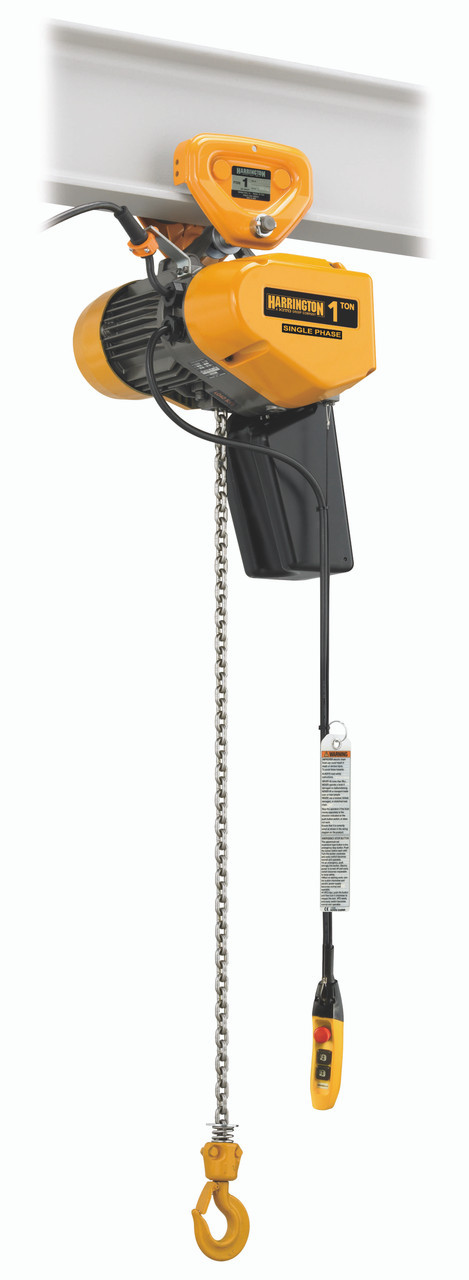

SEQP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1 Tons EQP010SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SEQP010SD-10 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is a top-notch product designed to elevate your lifting and transportation capabilities to new heights. With a substantial 10' lift capacity, this electric chain hoist is perfect for a wide range of industries and applications, providing you with the reliability and efficiency you need to meet your material handling demands.

Designed with user convenience in mind, the SEQP010SD-10 comes equipped with VFD control, allowing for seamless dual-speed operation. This means you can easily toggle between a slow, precise lift for delicate tasks and a fast, powerful lift for heavy loads. Say goodbye to the burden of manual lifting and embrace the advanced technology that empowers you to handle jobs quickly and competently. The push trolley featured in this model further enhances functionality, enabling straightforward transportation of heavy materials. Simply attach the trolley, and you can effortlessly shift loads with minimal physical strain.

• 10' lift capacity for versatile lifting applications
• Variable Frequency Drive (VFD) for dual-speed control
• Integrated push trolley for easy transportation of heavy loads
• Durable construction to withstand tough industrial conditions
• Lightweight design for enhanced mobility and usability
• Safety features to ensure secure lifting and operation
• Efficient performance to save you time and effort in your lifting tasks

The durability of the SEQP010SD-10 is engineered for the toughest of environments, ensuring that it remains a reliable asset for your operation day in and day out. With its robust build, this electric chain hoist can handle the demands of the construction industry, manufacturing, warehousing, and beyond. Elevate your workflow with a hoist that is as safe as it is effective.

Investing in the SEQP010SD-10 means you are choosing to enhance your material handling capabilities. This electric chain hoist with push trolley not only simplifies your lifting tasks but also improves productivity and safety across your operations. Make the smart choice for your business and experience the exceptional performance of the SEQP010SD-10 HARRINGTON SEQP Electric Chain Hoist. Elevate your efficiency, maximize your output, and transform your lifting processes today.

Product Specifications

.

Part Number:

SEQP010SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 2,000 lb, 10 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

17/3.9 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

1.3 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

19 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

17 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.9 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

19.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
