Custom Field

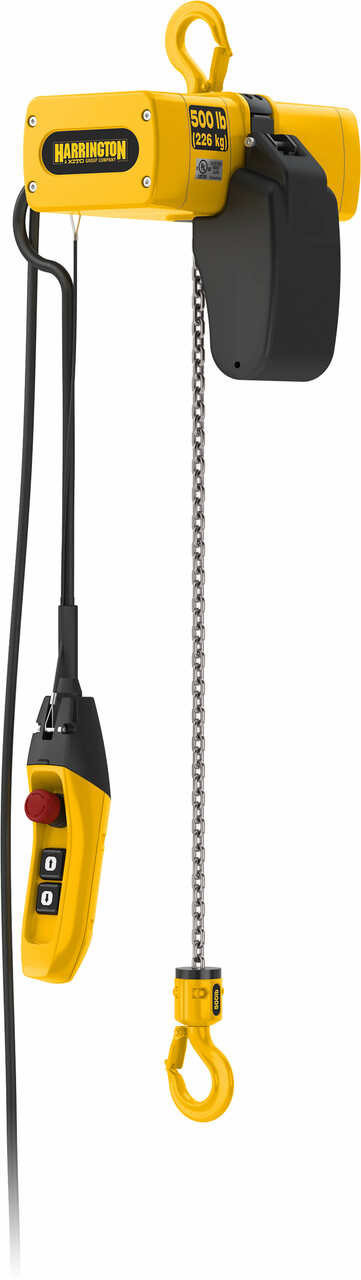

Part Number SEM003L-10
Color Yellow
Hoist Lift 1
Product Electric Hoists=Hoist Mount=1
Includes Push Button Pendant
Lift Speed 12 fpm
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 5 yr
Body Width 11 1/2 in
Body Depth 7 29/32 in
For Minimum Beam Height Not Applicable
Body Length 11 1/2 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 10 ft
Controller Cord Length 8 3/16 ft
Lifting Hook Opening Width 29/32 in
Minimum Retracted Length 11 19/32 in
Phase 1
Number of Speeds 1
Features LED Error Indicator, Protects the Hoist from Overwinding, State-of-the-Art Control System using Solid State Relay (SSR) Technology and a Microcontroller Unit (MCU), Chain Guide Discharges the Chain from the Side of the Hoist Body preventing the Chain
Lifting Hook Material Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type Electromagnetic
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Rubber Bumpers
Fixed Lift Speed 12 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 300
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 1/4 hp
Headroom 11 19/32 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP65
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 500 lb
Current at Minimum Voltage 4.6 A
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 2.3 A
Number of Load Chains 1
Body Material Die-Cast Aluminum
Programmable Non-Programmable
