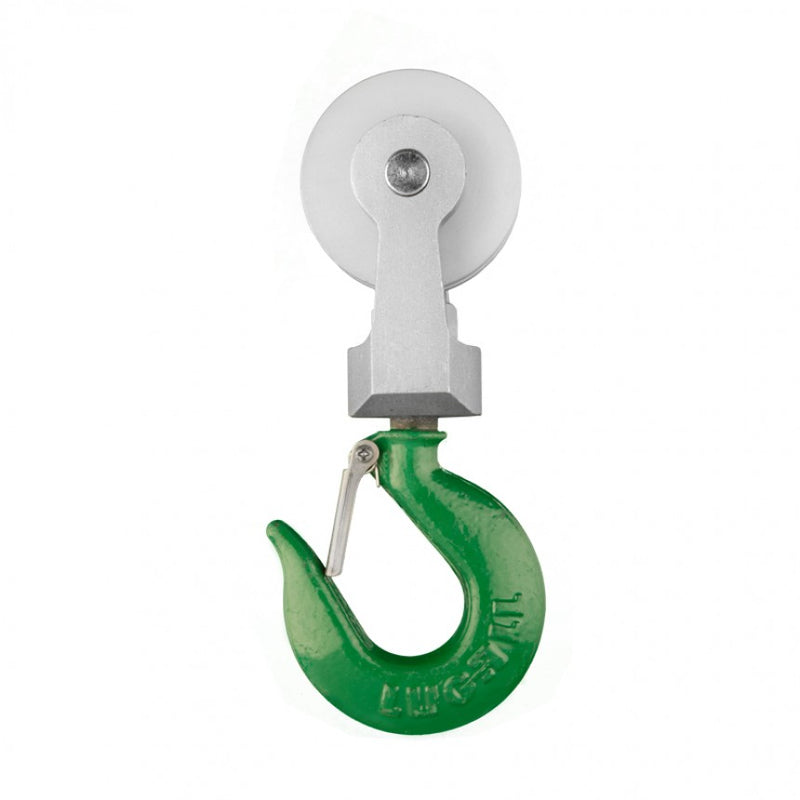

SKU: 803-GREEN | Pulley Block Assembly ” Compatible with Lug-All Models 125-R and 1500-25 (3/4-Ton Cable Hoists) Unlock Full Double-Line Capacity on Your 3/4-Ton Cable Hoist ” OEM Pulley Block Assembly in Green A fully functional pulley block assembly is what separates a 750-pound single-line puller from a 1,500-pound double-line lifting and pulling system ” and when yours is damaged or worn, half your hoist's rated capacity is inaccessible until it's replaced correctly. The SKU 803-GREEN Pulley Block Assembly is a genuine OEM replacement component engineered for two of Lug-All's capable 3/4-ton cable hoists: the model 1500-25, an industrial-grade 3/4-ton cable come along ratchet winch hoist with 25 feet of cable at 750 lbs single-line, or 12 feet 6 inches at 1,500 lbs in double-line configuration, and the model 125-R, a 3/4-ton cable come along ratchet winch hoist featuring rapid lowering that allows the hoist to lower four times faster than other models, with the same 25 feet at 750 lbs single-line or 12 feet 6 inches at 1,500 lbs double-line capacity. Both models share the same cable specification and pulley block geometry, making SKU 803-GREEN the correct single replacement assembly for either hoist. Lug-AllLug-All In double-line operation, the cable routes from the drum, loops through the pulley block assembly, and returns to the fixed anchor point ” creating the mechanical advantage that doubles the hoist's effective lifting and pulling capacity from 750 to 1,500 lbs. The pulley block must rotate freely under this full double-line load during every ratcheting cycle, ensuring smooth cable travel and even load distribution across both cable legs. A seized pulley wheel, cracked housing, or worn shaft bore introduces friction and misalignment into the cable path ” reducing efficiency, accelerating cable wear, and making the full double-line capacity unreliable and potentially unsafe to use. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. The SKU 803-GREEN assembly is manufactured to the dimensional and material specifications required for the 3/16" aircraft cable used in both the 1500-25 and 125-R ” ensuring correct cable seating in the pulley groove and clean, friction-free cable movement at full rated load. The GREEN color designation is Lug-All's capacity-class identifier for the 3/4-ton family, confirming the correct capacity rating when ordering and preventing cross-model substitution errors. Lug-All The model 125-R brings an additional operational advantage to this pairing. The 125-R's rapid lowering feature allows the hoist to lower four times faster than standard models ” a capability that depends entirely on smooth pulley block rotation for efficient cable management during the rapid lowering cycle. A seized or worn pulley block degrades this performance immediately, making timely replacement especially important for 125-R operators who rely on rapid lowering in time-sensitive field applications. Lug-All Lug-All cable hoists include a handle designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment ” a safety feature that works alongside a correctly functioning pulley block assembly as part of the hoist's complete safety and performance system. Lug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU803-GREENPart NamePulley Block AssemblyColor DesignationGreen (3/4-ton model identifier)Compatible ModelsLug-All 125-R and 1500-25Hoist TypeCable Come-Along / Ratchet Winch HoistSingle Line Capacity750 lbs / 25 FT (both models)Double Line Capacity1,500 lbs / 12 FT 6 IN (both models)125-R Special FeatureRapid Lowering (4x faster descent)Cable Type7x19 Aircraft CableCable Diameter3/16 inchPart TypeComplete OEM Replacement AssemblyCountry of ManufactureUSA

Color Coding Prevents Costly Ordering Mistakes Lug-All's color-coded pulley block system ensures maintenance teams and operators can quickly confirm they are ordering the correct capacity-class assembly for their hoist. The GREEN designation on SKU 803-GREEN confirms this assembly is matched to the 3/4-ton (1,500-lb) capacity class ” distinct from the BLACK (1-1/8-ton), RED (1-1/2-ton), and other capacity designations in the Lug-All pulley block range. Regular maintenance and inspection of hoist parts are essential for ensuring safe and efficient operation, and addressing wear or malfunctions promptly contributes to the longevity and reliability of the hoist system. Always verify both model number and color designation before ordering to ensure you receive the capacity-correct OEM replacement for your specific hoist. BH-USA This pulley block assembly is compatible with Lug-All models 125-R and 1500-25 only. Please verify your hoist model number and color designation before ordering.
