XP36 Series 1500lb capacity 24 x 48 platform

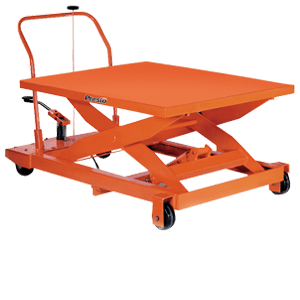

XP36-15 – A rugged manual scissor lift table with 1,500 lb capacity and a 24″ × 48″ platform. Designed for ergonomic lifting, positioning, and transport throughout warehouse, production, or shopfloor environments.
Product Description
When handling heavy loads over extended shifts, the XP36-15 Manual Scissor Lift Table becomes an indispensable tool for boosting safety, productivity, and operator comfort. Engineered for industrial settings where power may not always be available or desirable, this manual lift table allows your team to reposition, elevate, and transport heavy items with ease—reducing physical strain and keeping your workflow smooth.
With a 1,500 lb (≈ 680 kg) rated load capacity, the XP36-15 handles substantial loads—machinery parts, large containers, tool assemblies, or stacked goods—without compromise. Its 24″ × 48″ platform strikes a balance between ample work surface and space efficiency, allowing for effective handling in aisles, loading zones, or near workstations.
The scissor mechanism, built with ½-inch steel-plate legs and lifetime lubricated bearings, offers reliable vertical motion with minimal maintenance. Dual hydraulic systems move the platform via a foot pump, while a hand-release valve enables smooth, controlled lowering. The lift table’s travel supports a raised height of approximately 45″ and a lowered height near 9¼″. The unit uses 69 strokes to reach full height.
Mobility is built in. The XP36-15 rolls on two fixed and two swivel 5″ × 2″ phenolic casters, allowing easy repositioning across the facility, with a foot-operated floor lock for stability when in use. A hinged platform gives quick access to the hydraulic cylinders for inspection or maintenance. The device is ideal as a mobile workstation, machine feed platform, or ergonomic lift station for parts staging or assembly.
With the XP36-15, you’ll reduce bending, lifting strain, and handling risk, while increasing throughput. It’s compact enough to integrate into your facility layout yet powerful enough to carry heavy loads reliably over time.
Specifications
-
Model / SKU: XP36-15
-
Capacity: 1,500 lb (≈ 680 kg)
-
Platform Size: 24″ W × 48″ L
-
Lowered Height: ~ 9¼″ (≈ 235 mm)
-
Raised Height: ~ 45″ (≈ 1,143 mm)
-
Lifting Strokes: 69 full strokes
-
Lifting Mechanism: Manual foot-pump hydraulic with hand-release valve for lowering
-
Scissor Legs: ½″ steel plate, lifetime-lubricated bearings
-
Mobility / Wheels: Two fixed + two swivel 5″ × 2″ phenolic casters
-
Locking / Stability: Foot-operated floor lock
-
Frame / Construction: Welded steel with hinged platform for maintenance access
-
Ideal Use Cases: Workstation feed, parts staging, assembly line integration, ergonomic lifting tasks
