XP36 Series - 36" Travel 1000lb capacity 24 x 48 platform

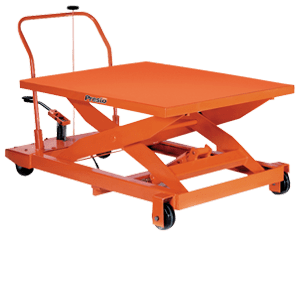

XP36-10 – A manual scissor lift table boasting a 1,000 lb capacity and a 24″ × 48″ platform, designed for ergonomic lifting, positioning, and transport across workstations or production lines.
Product Description
Meet the XP36-10 Manual Scissor Lift Table, a practical, reliable tool designed to move heavy loads safely and efficiently, even in tight workspaces. With a robust 1,000 lb (≈ 454 kg) capacity, this lift table comfortably handles equipment, components, crates, or assembly loads, helping your team avoid strain and improve workflow throughput.
The 24″ × 48″ platform offers generous surface area while keeping the unit compact enough to navigate aisles and position at workstations. The lift uses a hydraulic foot pump to raise the platform and a manual hand-release valve for smooth, controlled descent—no power cords, batteries, or motors required. According to Presto’s specs, the lowered height is about 9¼″, with a raised height of approximately 45″. custommhs.com+2prestolifts.com+2
Constructed from heavy-duty welded steel, the XP36-10 features a hinged platform for easy cylinder access, lifetime-lubricated bearings, and a foot-operated floor lock for secure stationary operation. custommhs.com Casters (two fixed and two swivel phenolic) support mobility, while the foot lock ensures stability during lift operations. custommhs.com+1
Use this lift table to bridge height differences between stations, feed machines, stage parts, or provide ergonomic access to heavy loads. The simplicity of manual operation makes it ideal for environments where power isn’t always available, or as a portable, flexible workstation solution.
Specifications
-
Model / SKU: XP36-10
-
Load Capacity: 1,000 lb (≈ 454 kg) prestolifts.com+1
-
Platform Dimensions: 24″ wide × 48″ long custommhs.com+1
-
Lowered Height: ~ 9¼″ custommhs.com+1
-
Raised Height: ~ 45″ custommhs.com+1
-
Vertical Travel: ~ 36″ stroke (difference from low to high) Lift-Tables.net+1
-
Lifting Mechanism: Hydraulic foot pump with hand-release valve for descent Lift-Tables.net+1
-
Frame / Structure: Welded steel construction with hinged platform for maintenance access custommhs.com+1
-
Mobility: Two fixed and two swivel 5″ × 2″ high-impact phenolic casters custommhs.com+1
-
Locking / Stability: Foot-operated floor lock for secure immobilization custommhs.com
-
Bearings: Lifetime-lubricated bearings built into joints for maintenance ease custommhs.com
-
Ideal Applications: Workstation height adjustment, parts staging, machine feed, ergonomic load handling
