XL36 Series 3000lb capacity 24 x 48 platform

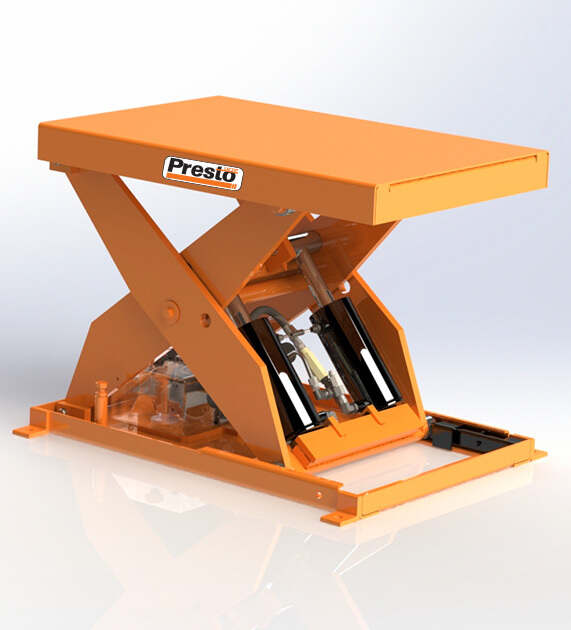

XL36-30 – Hydraulic scissor lift table with a 3,000 lb capacity, 24″ × 48″ platform, and a lift range from 7.25″ to 43″—ideal for ergonomic material handling and positioning in demanding industrial settings.
Product Description
Enhance your workflow with the XL36-30 Hydraulic Scissor Lift Table, a reliable and durable solution for lifting, positioning, and transporting heavy loads. Built for performance and safety, this lift table is ideal for use in warehouses, assembly lines, maintenance facilities, and manufacturing environments where precision and strength are essential.
The 3,000 lb (≈1,360 kg) capacity provides the power you need to handle heavy components, pallets, or machinery parts efficiently. Its 24″ × 48″ platform offers a generous working surface, giving operators plenty of room to handle large or irregularly shaped items with confidence.
Powered by a hydraulic scissor mechanism, the XL36-30 raises loads smoothly from 7.25″ when lowered to 43″ when fully raised, allowing you to position materials at the most ergonomic height. This reduces strain and fatigue while boosting productivity during repetitive tasks.
Constructed from heavy-duty welded steel, this lift table ensures long-term durability and stability under full load. The hydraulic system provides reliable, hands-free vertical movement, minimizing operator effort while maintaining full control. Many models include built-in safety features such as pressure relief valves and velocity fuses for controlled descent and added operator protection.
Mobility and stability come standard. The unit’s base may include rugged casters for easy transport or a stationary mount for fixed applications. A foot-operated brake or floor lock keeps the table secure during use.
Whether you’re lifting dies, positioning parts, or transferring materials between workstations, the XL36-30 Hydraulic Scissor Lift Table delivers a powerful blend of control, safety, and efficiency—making it an indispensable tool for any industrial operation.
Specifications
-
Model / SKU: XL36-30
-
Lift Type: Hydraulic scissor lift table
-
Capacity: 3,000 lb (≈1,360 kg)
-
Platform Size: 24″ W × 48″ L
-
Lift Range: 7.25″ (lowered) to 43″ (raised)
-
Lift Mechanism: Hydraulic system with durable steel scissor arms
-
Operation: Hands-free hydraulic control (push-button or foot-actuated)
-
Base Height (Lowered): Approximately 7.25″
-
Maximum Height (Raised): Approximately 43″
-
Frame Construction: Heavy-duty welded steel with reinforced supports
-
Hydraulic Safety Features: Pressure relief valve, velocity fuse (typical)
-
Surface Finish: Industrial powder-coat for corrosion resistance
-
Mobility Options: Fixed or mobile (casters available on select models)
-
Locking System: Foot-operated floor lock or parking brake
-
Ergonomic Design: Reduces bending and lifting strain
-
Typical Applications:
-
Assembly line material positioning
-
Pallet and container handling
-
Tooling and die lifting
-
Workstation height adjustment
-
Maintenance and repair operations
-
