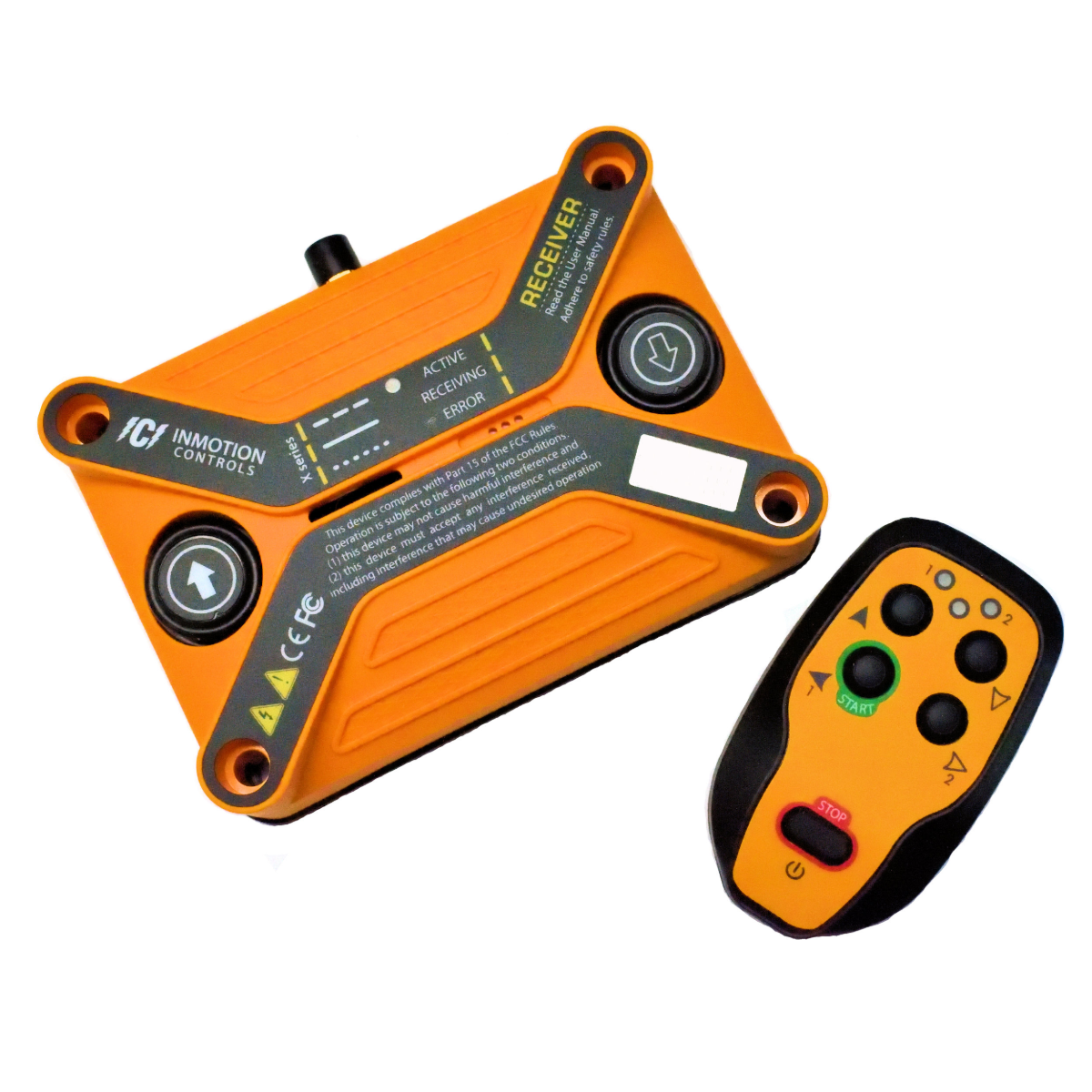

The InMotion X Series N400 System is built for single function control hoist applications that call for a receiver mounted directly to the hoist itself, giving you a streamlined, space saving installation. This one motion, one step system is designed for straightforward reliability in facilities where a simple, direct mount solution makes the most sense.

This system uses 2.4 gigahertz LoRa technology, a long range wireless protocol known for strong signal penetration and resistance to interference, giving you a dependable connection across a working range of approximately 300 feet, or 100 meters. The receiving unit operates on a wide voltage range of 90 to 460 volts AC or 90 to 460 volts DC, so it can be installed on a broad variety of hoist power configurations without needing separate step down or conversion equipment. The compact transmitter runs on two standard 1.5 volt AAA alkaline batteries, which are included, so you can put the system into service immediately.

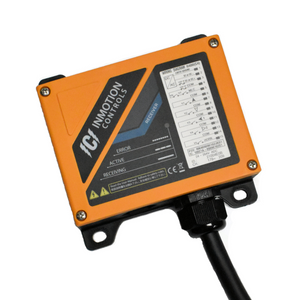

Both the transmitter and receiving unit carry an IP65 protection rating and are constructed from PA6 nylon reinforced with 30 percent glass fiber, giving the system solid resistance to dust and moisture in typical industrial settings. The receiving unit mounts with four bolts directly to the hoist, keeping your installation compact and reducing the amount of separate control enclosure hardware you need to manage.

Every X-N400 System ships with one receiving unit, two transmitters with lanyards, batteries, mounting hardware, and installation instructions, giving you a complete package ready to install. If you are looking for a simple, direct mount, single function hoist control with a wide operating voltage range, the X-N400 offers a practical, modern solution.

Product Info:
•  Motion configuration: 1 motion, 1 step control
•  Frequency: 2.4 gigahertz
•  Modulation: LoRa
•  Operating range: 300 feet, approximately 100 meters
•  Transmitter power: two 1.5 volt alkaline AAA batteries, included
•  Transmitter dimensions: approximately 3.11 by 1.8 by 0.93 inches
•  Receiving unit power: 90 to 460 volts AC or 90 to 460 volts DC
•  Receiving unit dimensions: approximately 8.7 by 3.4 by 1.31 inches
•  Receiving unit weight: approximately 7.76 ounces
•  Protection rating: IP65
•  Housing material: PA6 nylon, 30 percent glass filled
•  Mounting: four bolts, direct to hoist
•  Included: receiving unit, two transmitters with lanyards, batteries, mounting hardware, installation instructions
