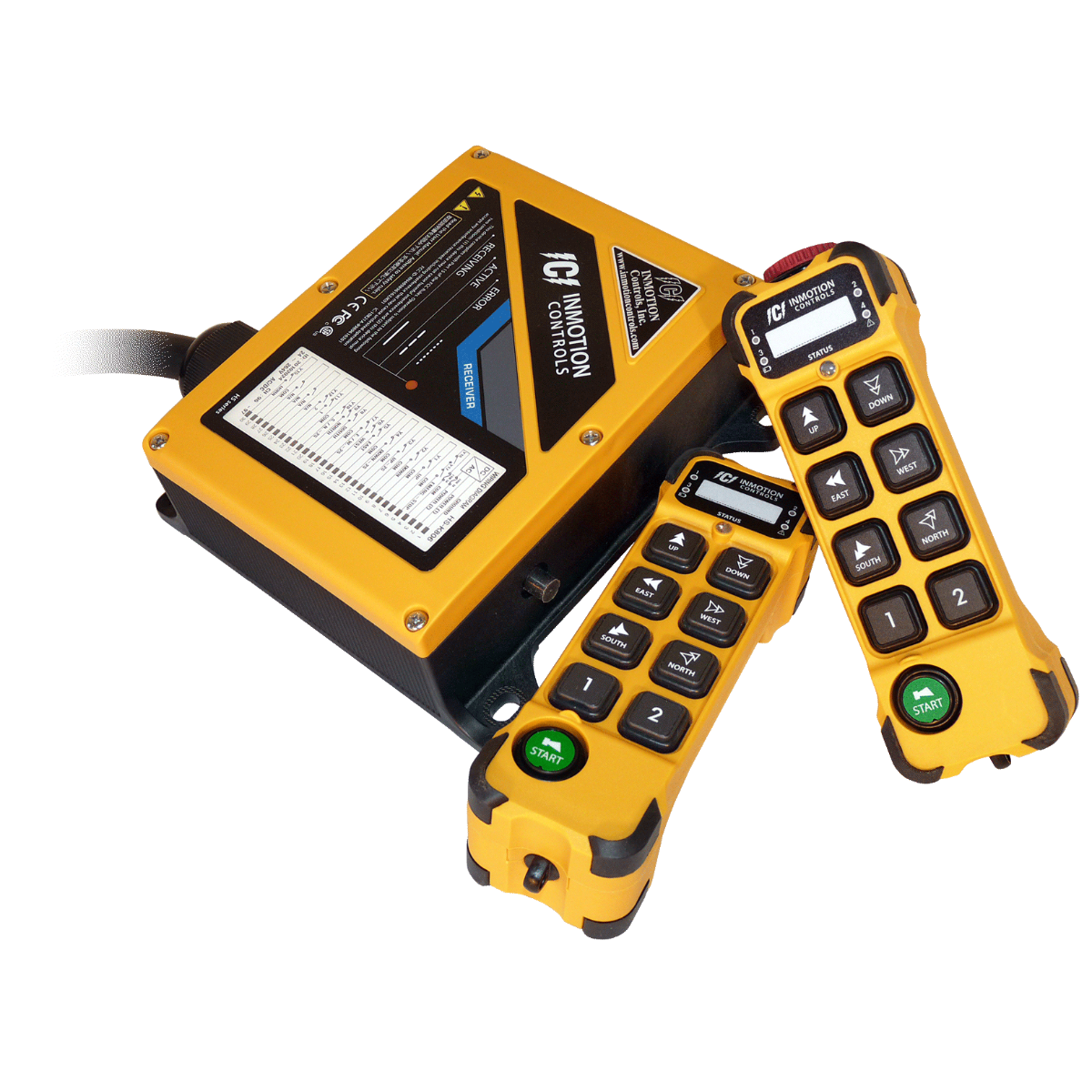

K806-SYS Wireless Multi-Hoist Crane & Trolley Control System

The K806-SYS Wireless Control System is an advanced 3-motion, 2-step radio remote control solution engineered for bridge cranes, multiple hoist systems, trolley applications, and complex material handling operations requiring 1 / BOTH / 2 operation modes. Designed for industrial facilities that demand flexible multi-hoist control, the K806-SYS delivers reliable wireless performance, enhanced operator safety, and smooth multi-speed operation for efficient lifting and positioning.

Ideal for overhead crane systems with multiple hoists or trolleys, the K806-SYS allows operators to independently control Hoist 1, Hoist 2, or both simultaneously, making it a powerful solution for synchronized lifting, dual-hook applications, and advanced material handling tasks. The system’s 2-step motion control enables smoother acceleration, more precise positioning, and improved load handling compared to standard single-speed controls.

Operating on advanced 433MHz multi-frequency technology with automatic frequency selection, the K806-SYS minimizes signal interference and maintains dependable wireless communication in busy industrial environments. Its integrated bi-directional communication system continuously exchanges operational information between the transmitter and receiver, helping operators monitor system performance and maintain safe equipment operation.

Built for demanding industrial use, the K806-SYS features a rugged PA6 glass-filled housing with integrated shock bumpers for long-lasting durability in manufacturing plants, steel facilities, warehouses, fabrication shops, and maintenance operations. The IP65-rated enclosure protects against dust, dirt, and moisture, making the system suitable for both indoor and outdoor applications.

The receiver includes auto power sensing from 24–240 VAC and 24–160 VDC, simplifying installation across a wide range of crane and hoist systems. Additional safety features include double safety stop MLC relays and bright interactive system status LEDs that provide clear operational feedback and diagnostic visibility.

Each complete K806-SYS package includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware, and installation instructions, providing everything needed for quick installation and reliable operation.

Whether upgrading an existing overhead crane system or implementing advanced multi-hoist wireless controls, the K806-SYS delivers industrial-grade durability, flexible multi-hoist operation, and dependable wireless performance for demanding lifting applications.

Specifications

System Features

• SKU: K806-SYS
• Control Type: 3 Motion, 2 Step
• Operation Modes: 1 / BOTH / 2 multi-hoist operation
• Applications: Bridge cranes, multiple hoists, trolley systems, and advanced material handling equipment
• Frequency: 433MHz multi-frequency with auto selection
• Communication: Bi-directional communication
• Safety Features: Double safety stop MLC relays
• Status Indicators: Interactive system status LEDs

Transmitter (K200–K600)

• Frequency: 433MHz
• Modulation Method: 4 FSK
• Typical Operating Range: 300 ft. (100M)
• Power Supply: 2 × 1.5V AA batteries
• Average Power Consumption: 16mA @ 3VDC
• Operating Temperature: -40°F to +149°F
• Protection Degree: IP65
• Housing Material: PA6 (30% glass filled)
• Dimensions: 193mm × 57mm × 51mm

Receiving Unit (K200–K600)

• Control System: PLL
• Power Supply: 24–240 VAC / 24–160 VDC auto-sensing
• Operating Temperature: -40°F to +149°F
• Protection Degree: IP65
• Housing Material: PA6 (30% glass filled)
• Dimensions: 190mm × 184mm × 64mm
• Mounting: Single bolt installation
