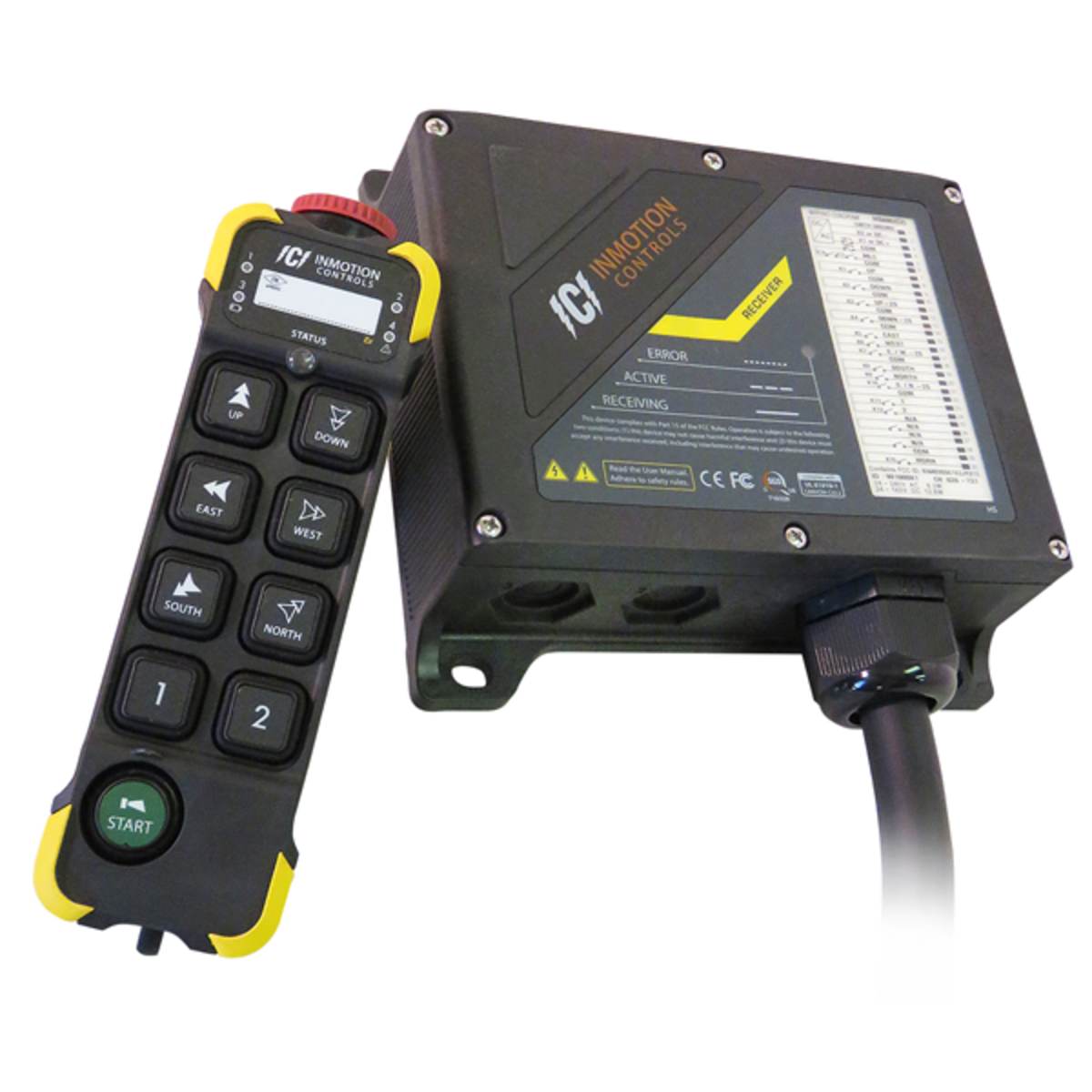

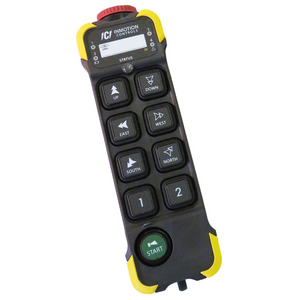

When your multi function bridge, hoist, and trolley equipment needs a fourth controlled output and operates in a classified hazardous location, the InMotion Hazardous Locations K808 EQX System gives you four motion, two step control built specifically for that combination of demands. This system is designed for facilities where flammable gases, combustible dust, or fibrous materials are present, giving your team a control option that meets classified area requirements without sacrificing the multi motion capability your equipment needs.

The transmitter carries approval for Class I, II, and III, Division 2, Groups A, B, C, D, E, F, and G locations, so you can deploy it across a wide range of hazardous classified environments with confidence. It charges wirelessly through the included Qi charging feature, which keeps the enclosure sealed and reduces maintenance interruptions in the field, and it ships with NiMH rechargeable batteries already included. A G force shock detection feature with disable function adds another layer of protection, automatically disabling the transmitter if it takes a significant impact, helping your team catch potential damage before it becomes an issue on the floor.

This system communicates on the 902.5 to 927.5 megahertz band using 2GFSK modulation, giving you a dependable connection across a working range of approximately 300 feet, or 100 meters, even in facilities running other wireless equipment nearby. The receiving unit automatically senses input voltage between 24 and 240 volts AC or 24 and 160 volts DC, so it installs cleanly on most existing plant electrical services without additional conversion equipment. Both the transmitter and receiver carry an IP65 protection rating and are constructed from PA6 nylon reinforced with 30 percent glass fiber, giving you a rugged enclosure that holds up to dust, moisture, and the daily demands of an active industrial environment.

Every K808 EQX System ships with one receiving unit, one transmitter with legend set, batteries, mounting hardware, and installation instructions, giving your maintenance team everything needed to complete the install. This system is FCC, IC, and CE compliant, supporting the documentation your facility needs for hazardous location compliance reviews.

Product Info:
•  Motion configuration: 4 motion, 2 step control for hazardous locations
•  Hazardous location approval: Class I, II, III, Division 2, Groups A, B, C, D, E, F, G
•  Frequency: 902.5 to 927.5 megahertz
•  Modulation: 2GFSK
•  Operating range: 300 feet, approximately 100 meters
•  Transmitter power: two 1.5 volt NiMH AA batteries, included
•  Transmitter dimensions: approximately 193 by 57 by 51 millimeters
•  Receiving unit power: 24 to 240 volts AC or 24 to 160 volts DC, auto sensing
•  Receiving unit dimensions: approximately 190 by 184 by 64 millimeters
•  Protection rating: IP65
•  Housing material: PA6 nylon, 30 percent glass filled
•  Included: receiving unit, transmitter with legend set, batteries, mounting hardware, installation instructions
