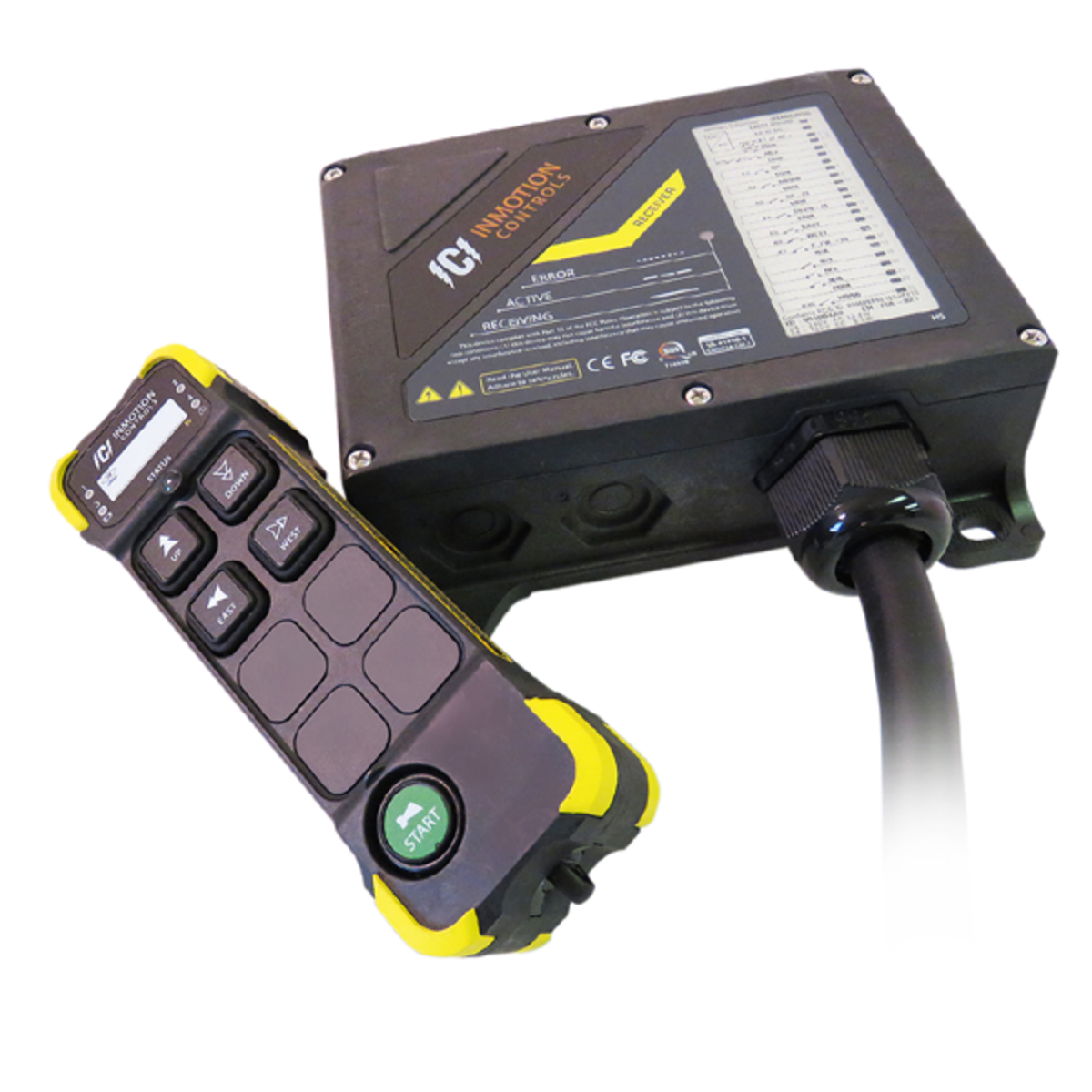

When your dual function hoist or trolley equipment operates in a classified hazardous location, the InMotion Hazardous Locations K404 EQX System gives you two motion, two step control built to meet the demands of environments where flammable gases, dust, or fibers are present. This system is designed for monorail hoist and trolley applications and dual function control setups that need reliable performance without compromising on safety.

The transmitter is approved for Class I, II, and III, Division 2, Groups A, B, C, D, E, F, and G locations, so it can be used across a broad range of hazardous classified environments. It charges wirelessly using the included Qi charging technology, which keeps the enclosure sealed and cuts down on maintenance downtime, and the system ships with NiMH rechargeable batteries already included. An optional G force shock detection feature helps you identify a transmitter that has been dropped or struck hard enough to warrant inspection.

The system communicates over the 902.5 to 927.5 megahertz band using 2GFSK modulation, providing a stable link across an operating range of about 300 feet, or 100 meters. The receiving unit auto senses voltage between 24 and 240 volts AC or 24 and 160 volts DC, allowing straightforward installation on most existing plant power without additional conversion hardware. Both the transmitter and receiver carry an IP65 rating and are constructed from PA6 nylon reinforced with 30 percent glass fiber for long service life in demanding conditions.

Every K404 EQX System includes one receiving unit, one transmitter with legend set, batteries, mounting hardware, and installation instructions, giving your maintenance team everything needed to complete the install. This system is FCC, IC, and CE compliant, supporting the documentation your facility needs for hazardous location compliance reviews.

Product Info:
•  Motion configuration: 2 motion, 2 step control for hazardous locations
•  Hazardous location approval: Class I, II, III, Division 2, Groups A, B, C, D, E, F, G
•  Frequency: 902.5 to 927.5 megahertz
•  Modulation: 2GFSK
•  Operating range: 300 feet, approximately 100 meters
•  Transmitter power: two 1.5 volt NiMH AA batteries, included
•  Transmitter dimensions: approximately 193 by 57 by 51 millimeters
•  Receiving unit power: 24 to 240 volts AC or 24 to 160 volts DC, auto sensing
•  Receiving unit dimensions: approximately 190 by 184 by 64 millimeters
•  Protection rating: IP65
•  Housing material: PA6 nylon, 30 percent glass filled
•  Included: receiving unit, transmitter with legend set, batteries, mounting hardware, installation instructions
