Description

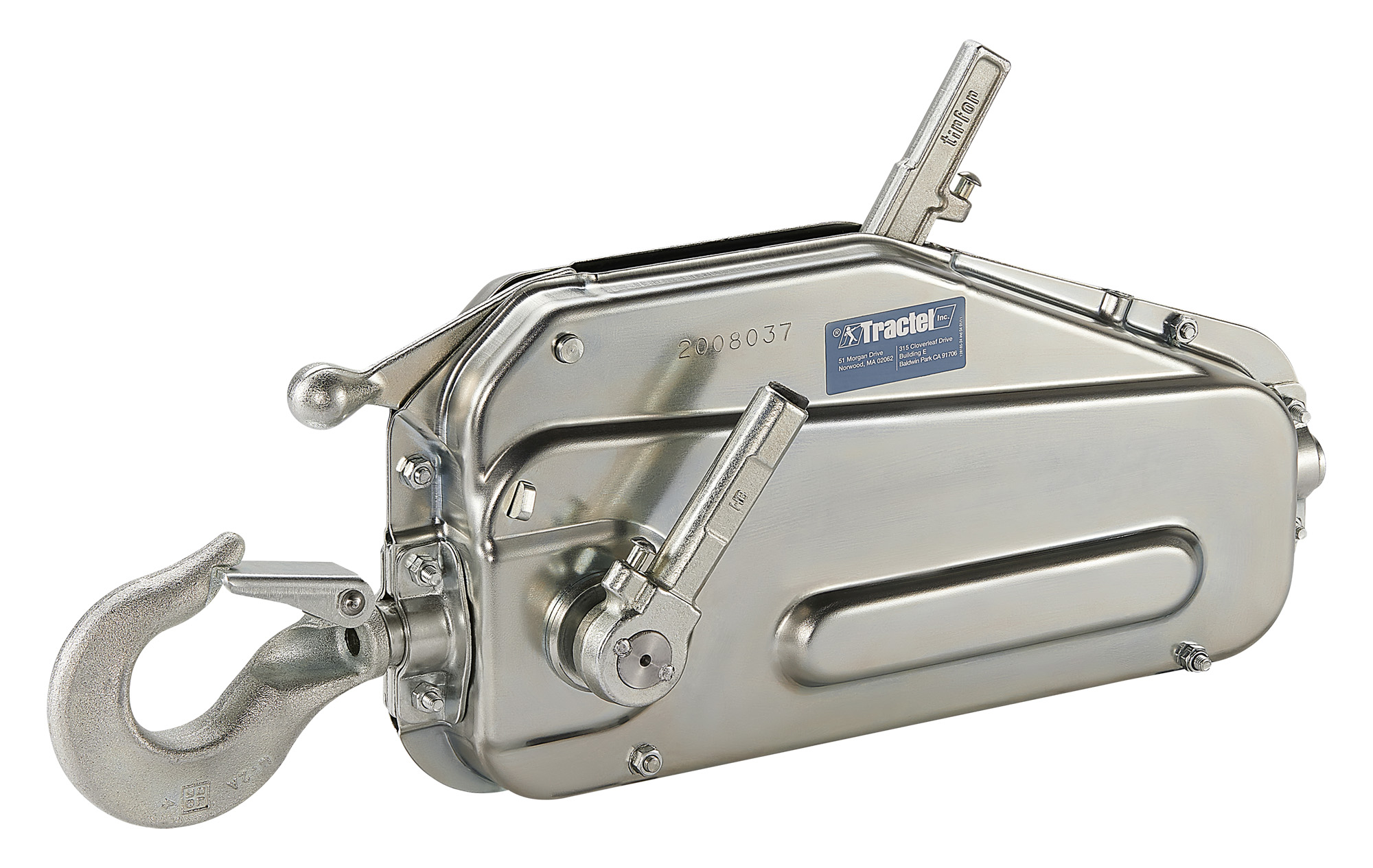

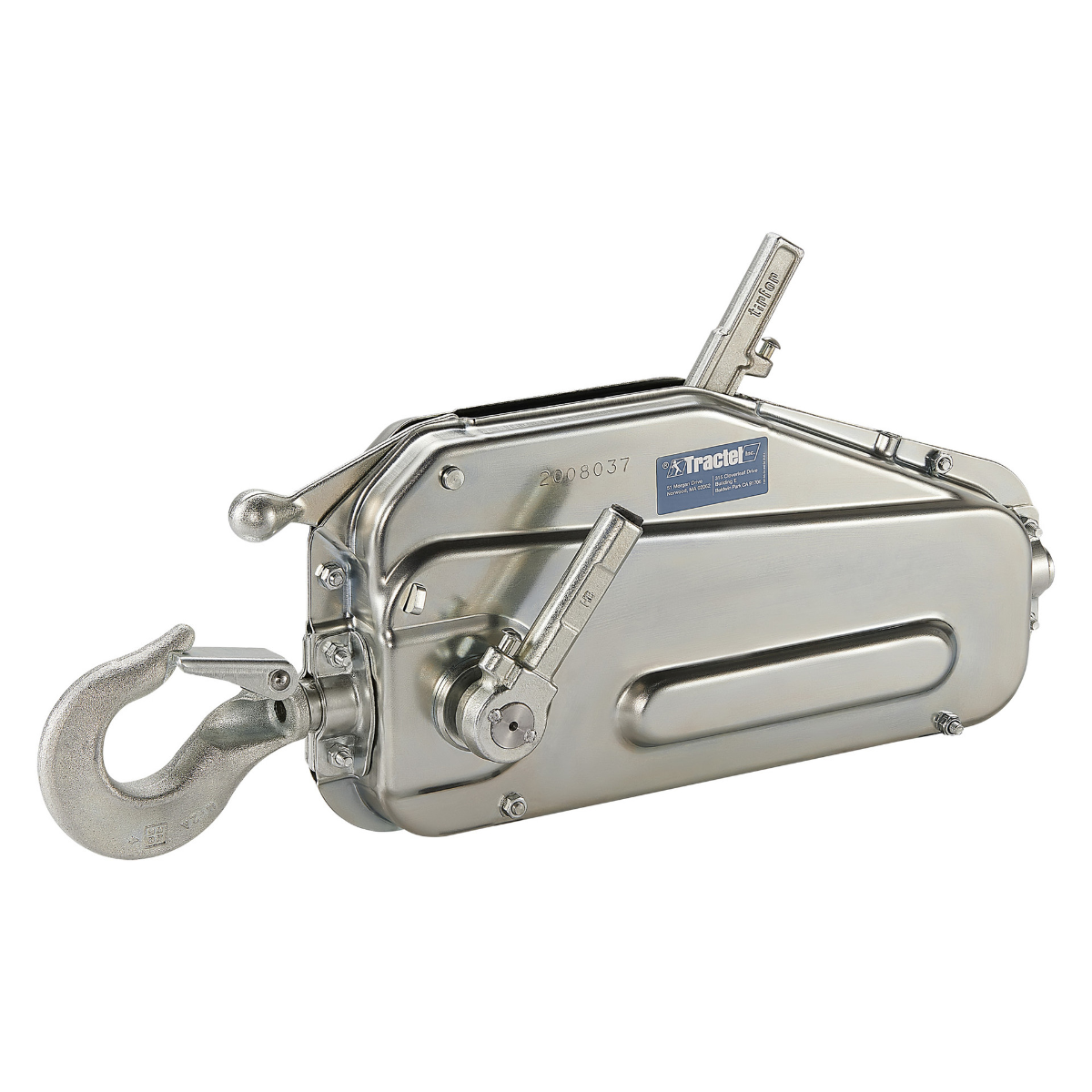

Tractel Griphoist / Tirfor TU17 Manual Wire Rope Hoist – 1 Ton Capacity, Without Wire Rope

Product Description

The Tractel Griphoist / Tirfor TU17 is a compact, lever-operated manual hoist designed for versatile lifting, pulling, and tensioning applications. With a nominal capacity of 2,000 lbs (907 kg), this hoist is ideal for construction, rigging, rescue, and industrial tasks where portability and reliability are paramount.

Featuring a pass-through wire rope system, the TU17 allows for virtually unlimited rope lengths, making it suitable for horizontal, vertical, or angled operations. Its dual jaw gripping mechanism automatically secures the load when the operator pauses, ensuring safe and controlled handling.

The hoist is equipped with a telescopic operating lever, providing increased mechanical advantage for efficient load management. Built-in overload shear pins offer protection against misuse, enhancing safety during operation. Its lightweight design facilitates easy transportation and rapid deployment in various field conditions.

Whether you're lifting, pulling, or positioning heavy loads, the Griphoist / Tirfor TU17 delivers dependable performance without the need for electricity, making it a versatile tool for professionals in demanding environments.

Key Specifications

  • Model / SKU: 8492024
  • Type: Griphoist / Tirfor TU17
  • Nominal Capacity: 2,000 lbs (907 kg)
  • Wire Rope Diameter: 5/16 in (8.4 mm)
  • Wire Rope Length: Wire Rope Not Included
  • Unit Weight (hoist body): 18.7 lbs (8.5 kg)
  • Wire Rope Weight (30 ft): 8 lbs (3.6 kg)
  • Effort on Lever (Forward): 79 lbs (36 kg)
  • Effort on Lever (Reverse): 40 lbs (18 kg)
  • Rope Travel per Forward Stroke: 2 in (50 mm)
  • Rope Travel per Reverse Stroke: 2 3/8in (60 mm)
  • Minimum Wire Rope Breaking Strength: 10,000 lbs (4,536 kg)
  • Safety Factor: 4:1 (material handling applications)
  • Operation Modes: Horizontal, vertical, or angled pulling and lifting
  • Safety Features: Dual jaw load-holding system; overload shear pins
  • Compliance: UL certified for man-riding applications; meets ASME B30.21 standards
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
